V26SA
Line Array System

V26SA
Key Features
High performance 1 x 15″ LF drivers
Large 4″/100mm voice coils to deliver consistent high power
Integrated 1200W power amplifier and DSP

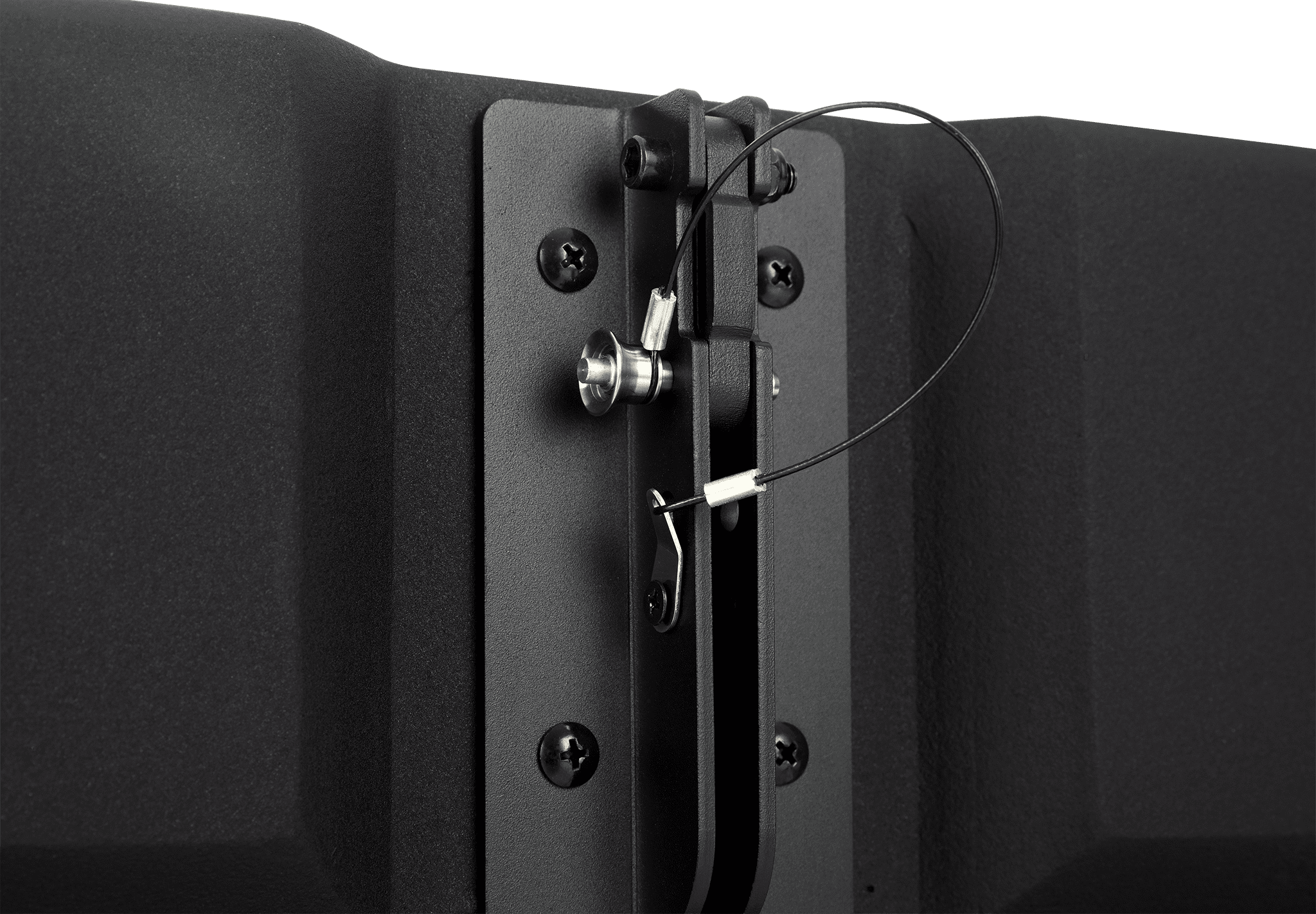

Adjustable suspension system and convenient scoop handles
Overview
DSP CONTROL
-Driving the V26A and V26SA
Independent high performance power amplification in each cabinet, provides the
power at the place you want it, without long cables or separate amplifiers. The
cabinets also include a thru power connector, so for each stack only one main
power cable needs to be supplied.
The built-in DSP gives you full control of your system, with crossover points, EQ

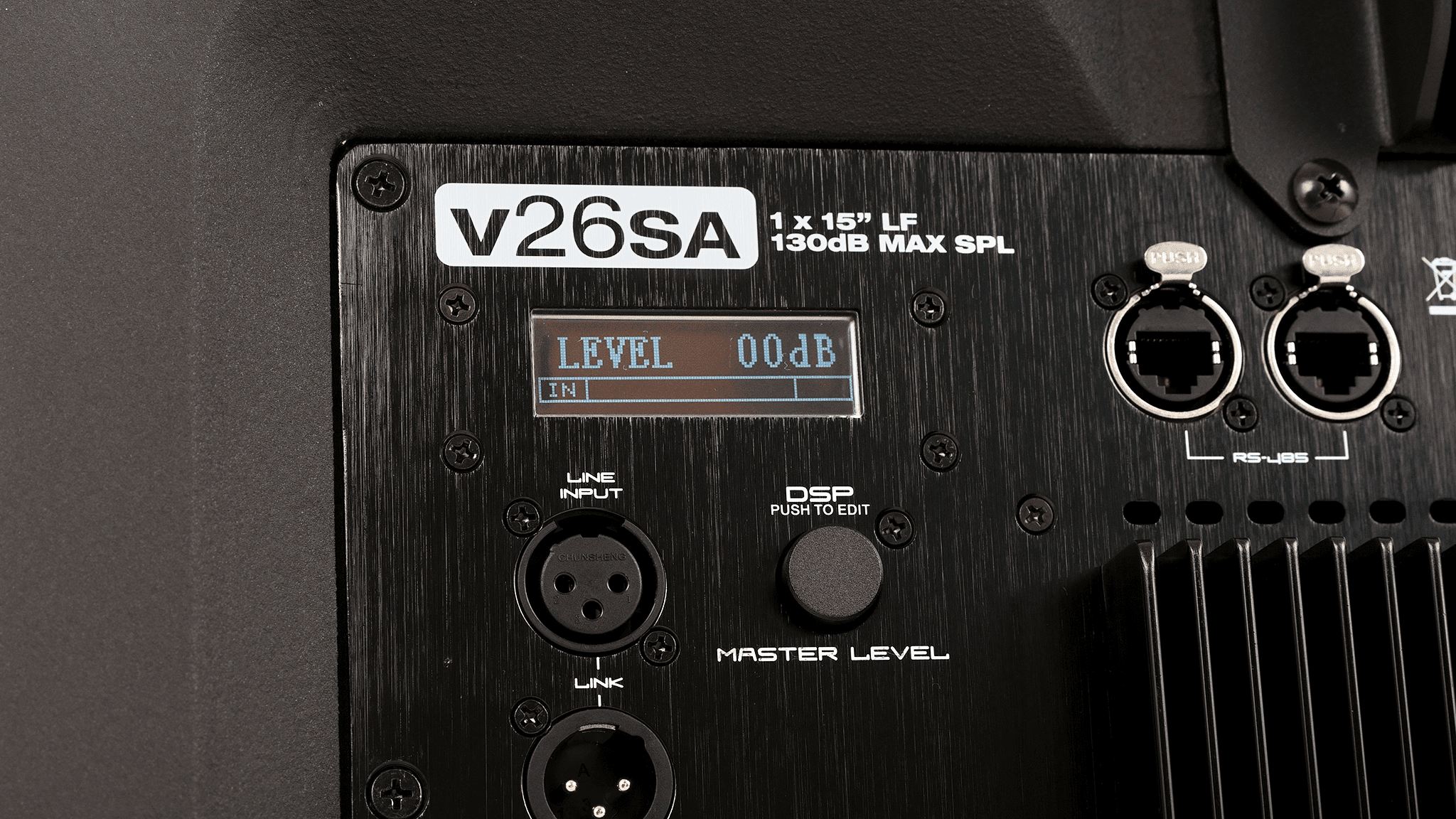

threshold, time delay and volume control. Either use the display and encoder on
the rear panels, or connect your laptop through the RS485 connection to give
you remote adjustment.

The new V26 system is a compact active vertical array system.
designed for stacking or flying.
Starting from 3 cabinets make the MF/HF,securely locking to
each other with adjustable angles between 0 and 8 degrees.

Specification
V26SA
Specification | V26SA |
MAX SPL¹ | 137dB |
AMP POWER² | 1200W |
WEIGHT | 41kg |
Cabinet type | active line array woofer |
Frequency response | 40Hz - 150Hz (-10dB) |
Coverage (H × V) | - |
LF Driver | 1 × 15" / 100mm VC |
MF Driver | - |
HF Driver | - |
DSP | gain, EQ, crossover, delay, threshold |
Crossover frequency | DSP controlled |
Vertical splay angle | - |
Dimensions (W × H × D) | 474 × 506 × 673mm |
