V26A
Line Array System

V26A
Key Features
COMPACT COAXIAL ACTIVE ARRAY
2 x 6.5″ MF DRIVERS
8 x1 HF DRIVERS
1 x 15″ LF DRIVER
Overview

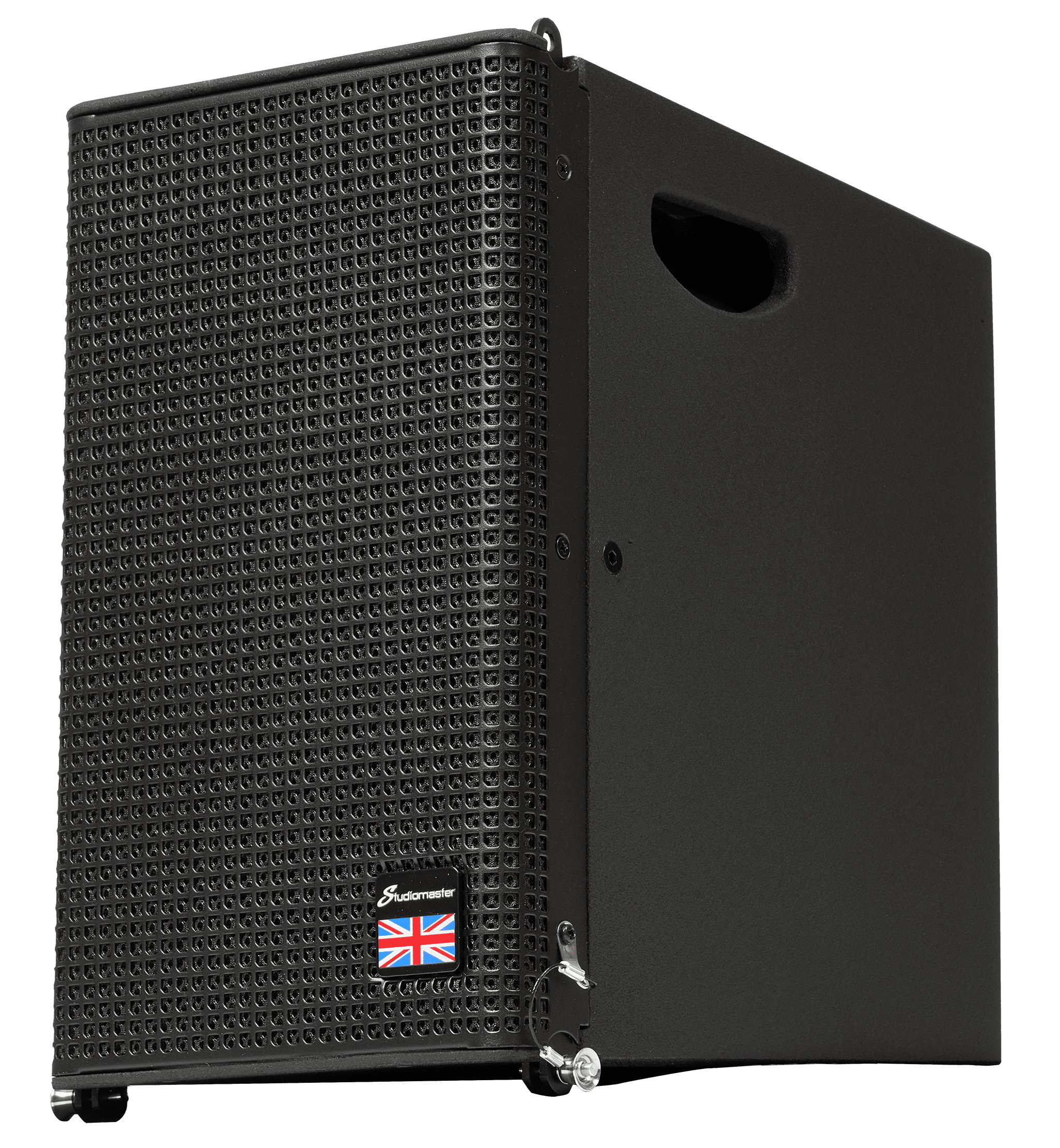

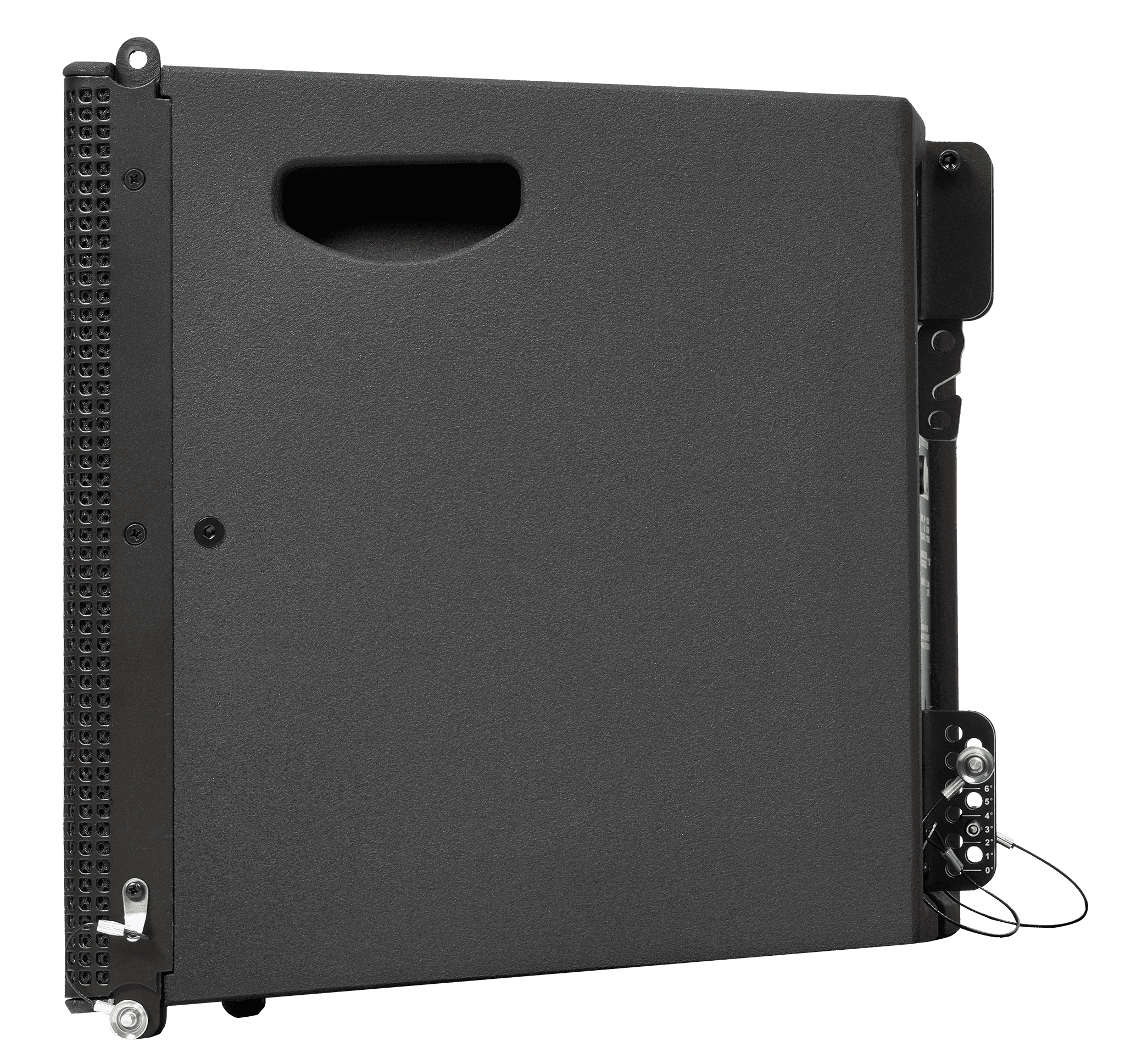

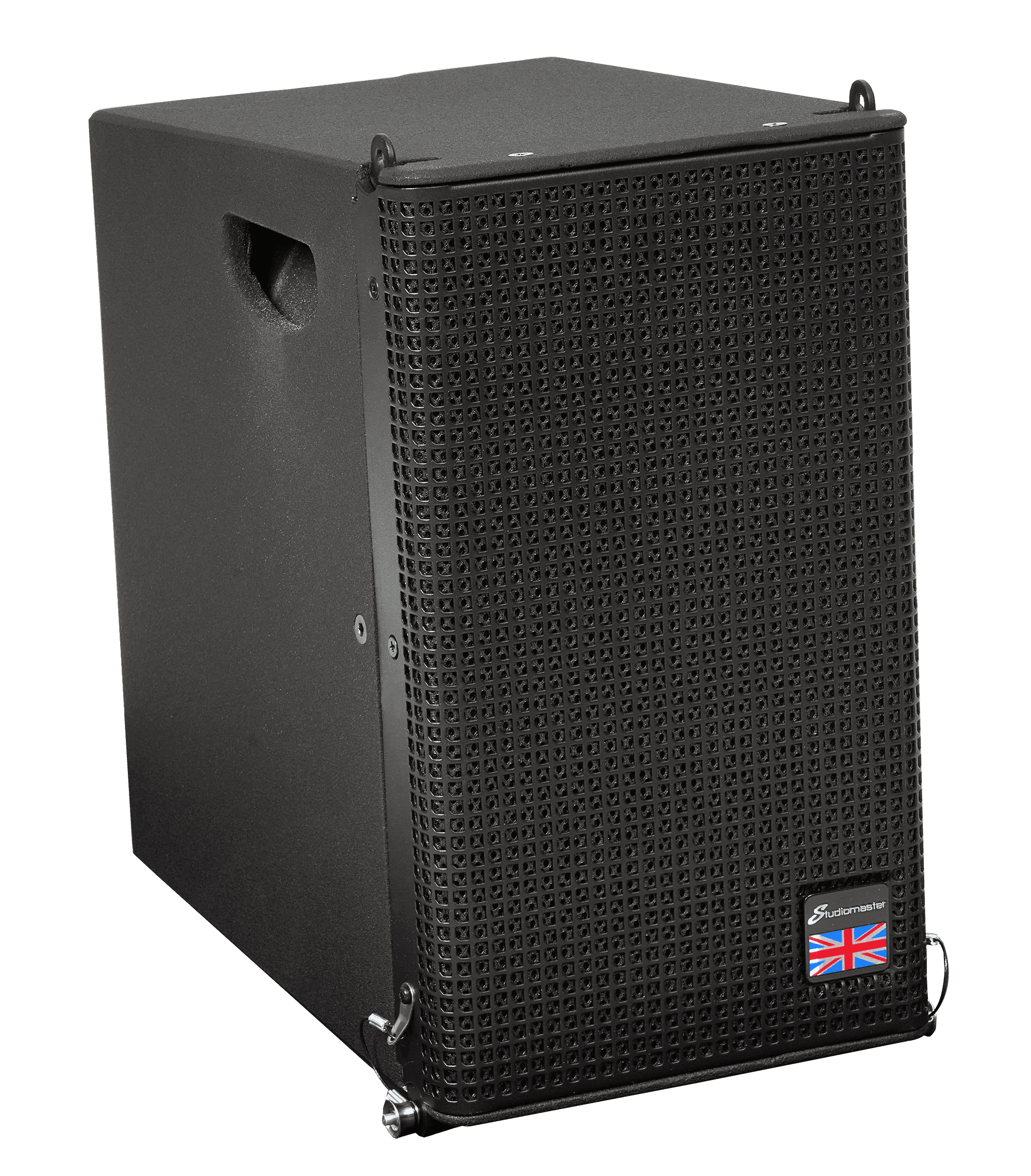

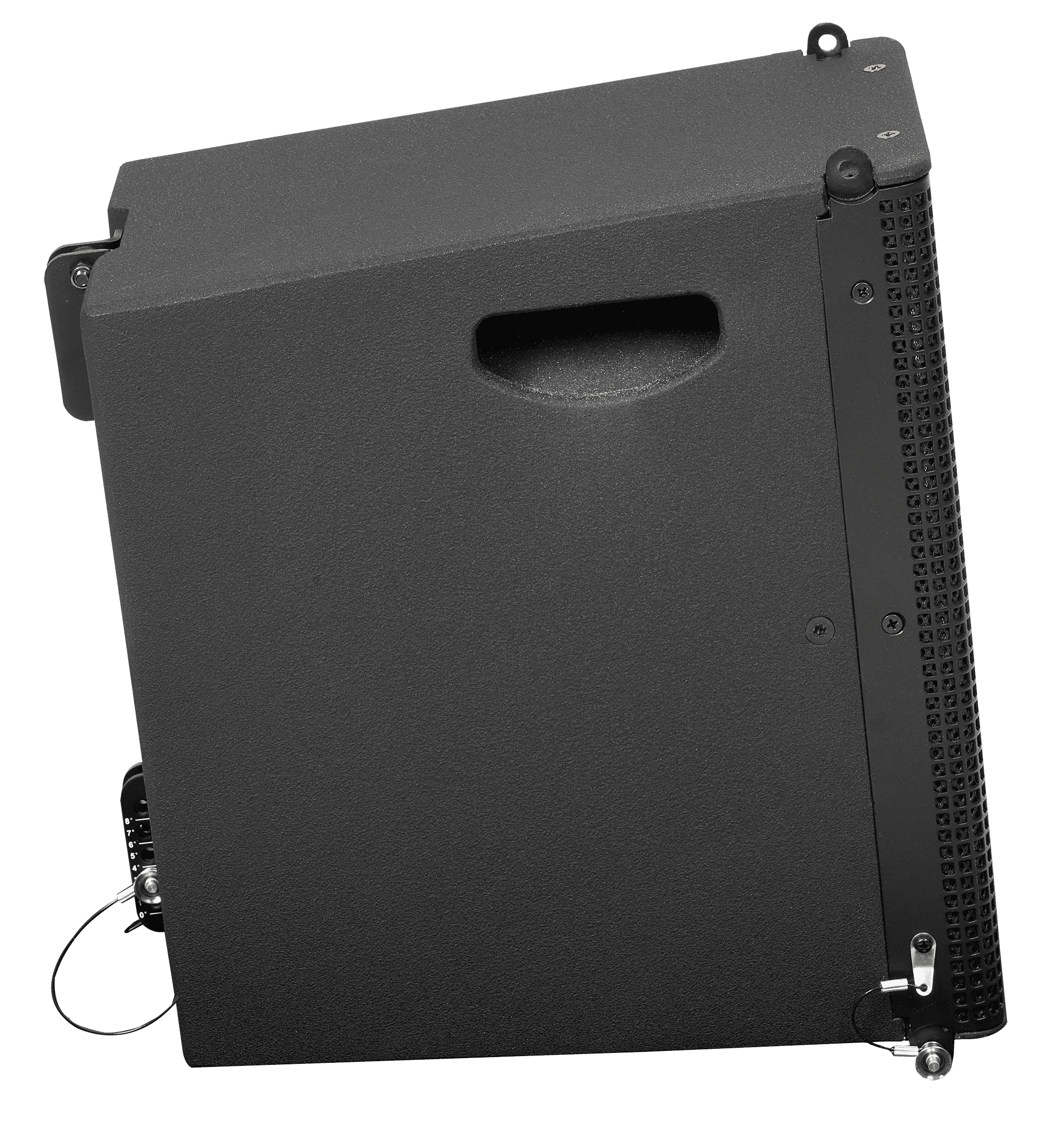

The new V26 system is a compact active vertical array system. designed for stacking or flying.
Starting from 3 cabinets make the MF/HF,securely locking to each other with adjustable angles between O and 8 degrees.
Light weight at only 8.5kg and a superb dynamic margin is gained by the unique design of the array cabinets.With two 6.5-inch MF drivers and eight 1″ magnetic neodymium dome tweeters set in a coaxial array at the front of the cabinet.
The 15″ active sub with large 4″/100mm voice coil delivers excellent low end response down to 40Hz, making the whole system ideal as a high quality stand alone system giving SPL’s up

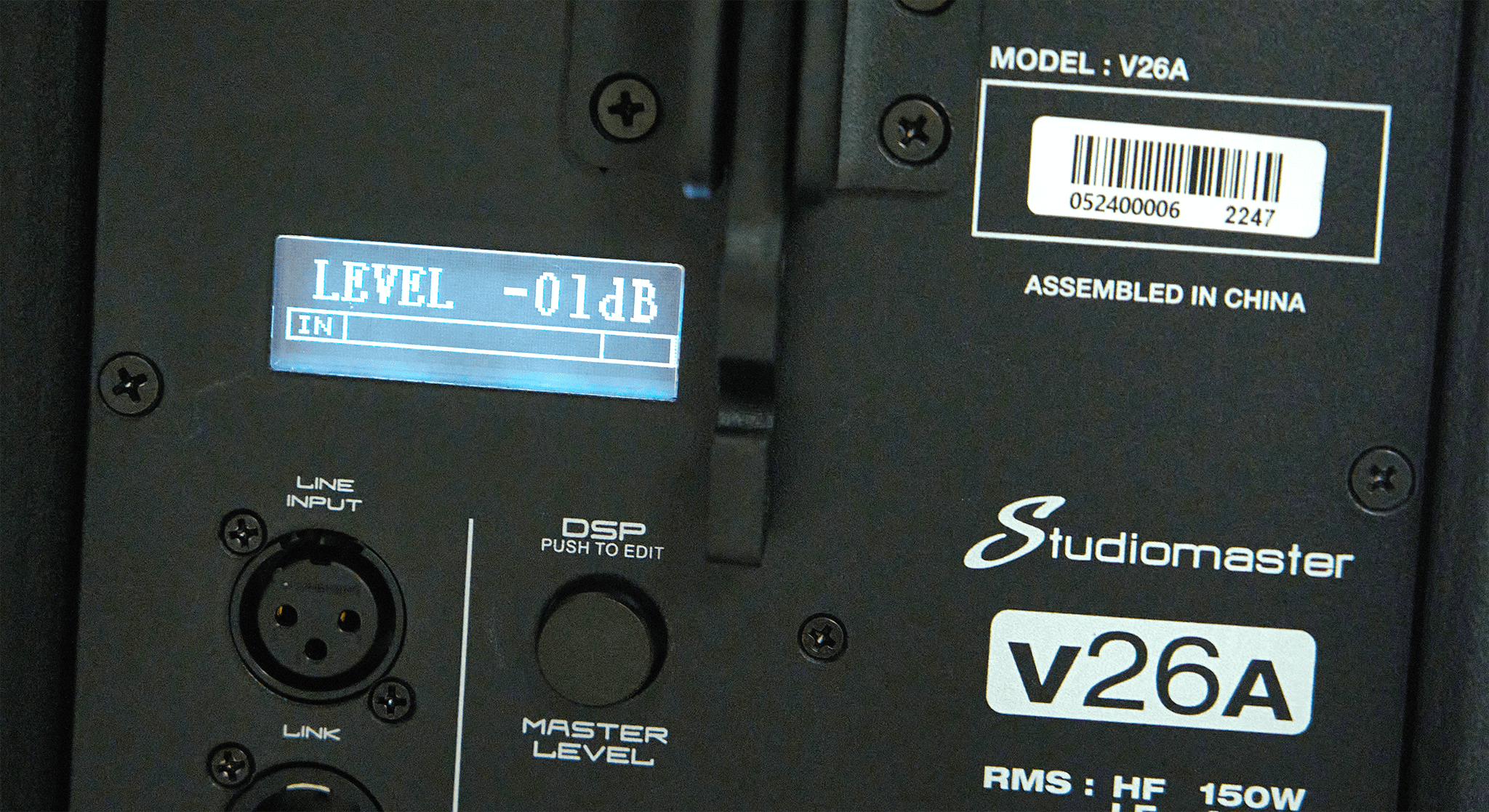

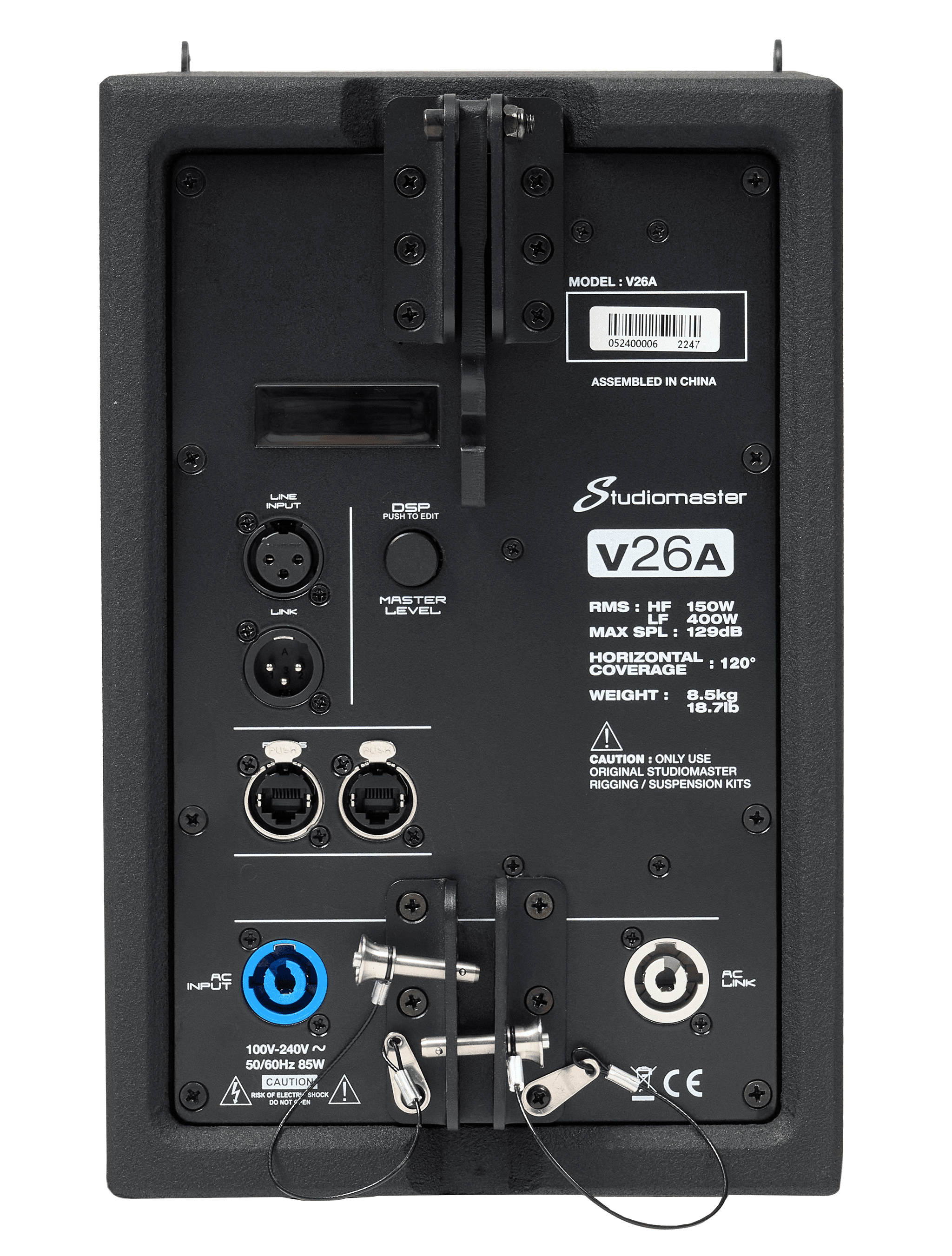

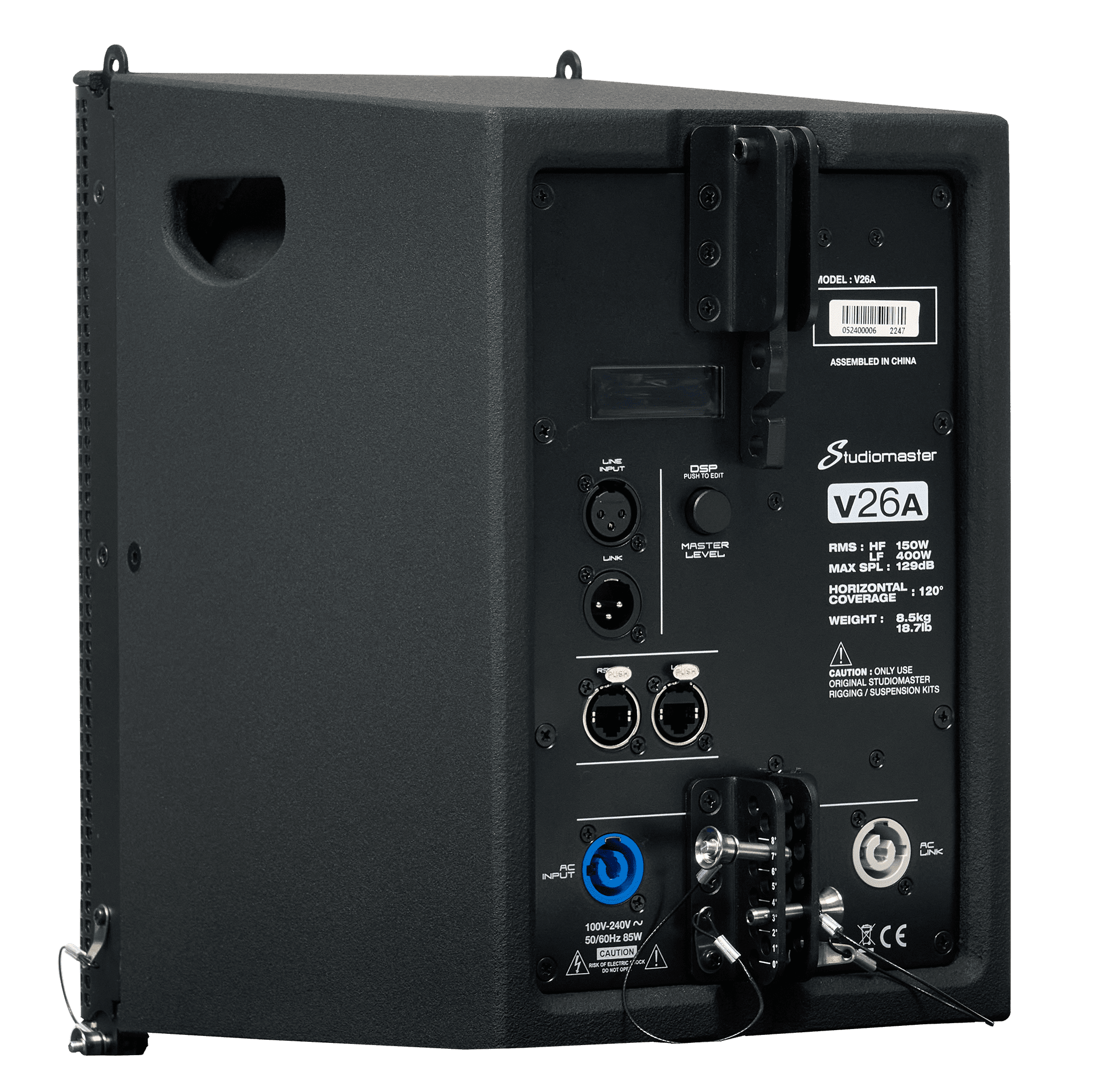

Each cabinet is active with built in high performance amplification and DSP control, giving you the ability to adjust crossover points, gain, EQ, delay and threshold, along with program memories so different configurations can be easily recalled.

Specification
V26A
MAX SPL¹ | 129dB |
AMP POWER² | MF 400W / HF 150W |
WEIGHT | 8.5kg |
Cabinet type | 2-way active line array |
Frequency response | 70Hz - 20kHz (-10dB) |
Coverage (H × V) | 120 × 8 degree |
LF Driver | - |
MF Driver | 2 × 6.5" / 38mm VC |
HF Driver | 8 × 1" / 25mm VC |
DSP | gain, EQ, crossover, delay, threshold |
Crossover frequency | DSP controlled |
Vertical splay angle | 0-8 degree (2 degree step) |
Dimensions (W × H × D) | 205 × 354 × 340mm |
