SC32

Key Features

High Quality ConfigurationThe core adopts the fourth generation 40 bitSHARC floating-point processor,24bit/96kHzanalog-to-digital’digital to analog conversion,and can use built-in orexternal effects toincrease the richness and spatial sense ofsound.Ilt is an ideal choice for music production,mixing, broadcasting, and music appreciation.

HOME Page Including routing,phantom power. phase,GAIN, TRlM, Direct Out, delay, high pass,low-pass, equalizer, threshold compression,Insert insertion, AUTO automatic mixing.SENDS transmission, LCR phase, LINK,mute,level meter, etc.

Remote Control:Remote control through HTMLS compatiblebrowser-no application required.. Can perform all controls on Dx32,includinggain, EQ. dynamics, faders, etc.

BUS BUS customization:Support customizing Bus as AUX or GRP forgreater flexibility

Overview

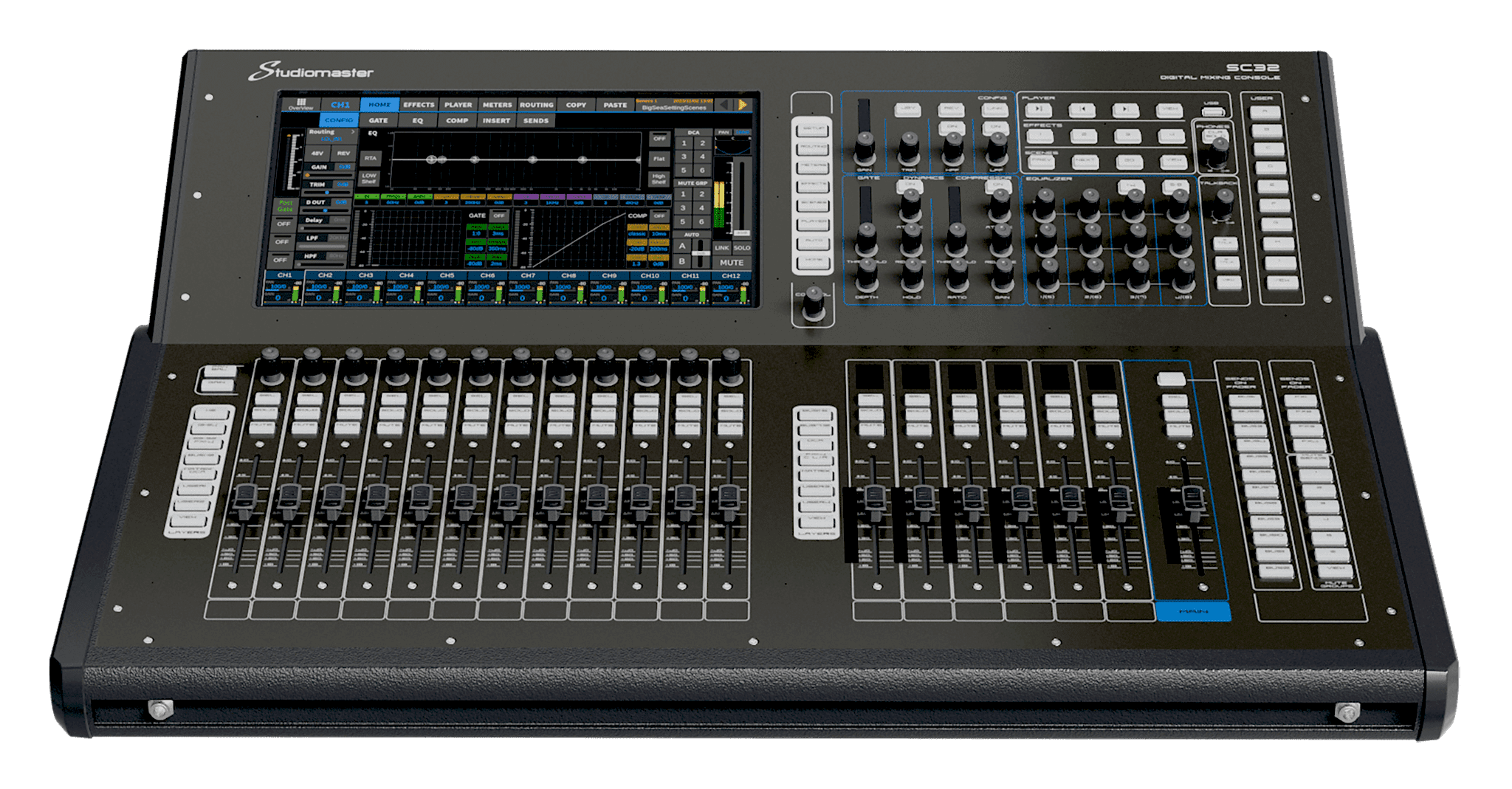

The SC32 series digital mixing console is equipped with a large touch screen and a unique
new control interface, which enables smoother and more efficient operation through the
“touch and turn” knob. The detailed design of the tactile sensation and visualization of the
channel name screen has been further optimized, providing a comprehensive and detailed
overall operating experience. This product supports remote control on iPad or computer,
highlighting its flexibility and convenience.
The 32 channel digital mixing console SC32 is equipped with a 32 in 16 out/16 in 8-out rack
interface box, which has strong practicality. The interface box is remotely connected via
CAT5/5e cable, which is sturdy, durable, and portable to use.

Specification

Maximum number of input channels	32 x mono	Customize User	Support channel names, channel colors, custom layers, custom buttons BUS customization, effects customization
Number of FX bus channels	4 x stereo sound	Physical knob	13, can quickly adjust the GAIN/PAN/BAL of the corresponding channel and the parameters of the corresponding interface
Number of BUS output bus channels	12 x stereo sound	Custom keys	9 custom keys
Matrix output bus channel count	6 x stereo sound	Custom layer	2 custom layers
Main output bus channel count	Can be customized as LCR or LR+MONO	Central control	Supports RS485 interface
SOLO Monitor outputs the number of Bus channels	1 x stereo sound	Remote control	Support browser remote access, compatible with devices on different platforms
SOLO PHONES output bus channel count	1 x stereo sound	19″ rack installation	support
AUTO automatic mixing	Supports 2 groups, up to 32 channels for customization	Local microphone input	16 x XLR digits
Built in effects plugin	Support customizable 12 stereo effect sockets (Delay, Reverb, Module)	Local line input	2 x 6.35Jacks+1 x 3.15Jacks stereo
Sampling Frequency Display	96kHz / 48kHz 13.3" Touch screen (HOME interface completes one channel operation,,The interface is friendly and clear, and the user operation is comfortable and convenient	Local Input - Numbers	1 x XLR AES/EBU
Scene memory	support	Local analog output	14 x XLR
Memory bank	support	Phone output	1 x 6.35Jacks
Silent grouping	6 of them	Local Output - Digital	1 x XLR AES/EBU
DCA grouping	6 of them	Interface box interface	2 x Lockable RJ45 Connectors (Supports D3216/D1608 Interface Boxes)
USB player	Supports MP3/WAV format	USB	3 x USB Type-A
Signal Routing	Input and output signal routing	LAN Ethernet interface	1 x RJ-45 1000M
Clippers	13 x pusher	Central control	Supports RS485 interface
		Expansion card slot	1 (compatible with USB1616/AES1616 expansion card)
