Digilive 4c

Key Features

Overview

Digilive4C

Gallery

Specification

Inputs		4 analogue input
MIC Input		2 MIC/LINE COMBO XLR/JACK
LINE Input		1 STEREO Jack/3.5mm mini Jack
Master Output		2 Left/Right balanced XLR
Internal busses		2 stereo FX / 1 mono AUX /
		stereo PFL / Main Mix
Stereo Monitor		1 TRS Jack output
Headphone		1 TRS Jack output
Control Interface		Full mix from 3 rotary encoders
Sample Frequency		48kHz
AD/DA		48kHz, 24-bit
DSP		40-bit float point, SHARC processor

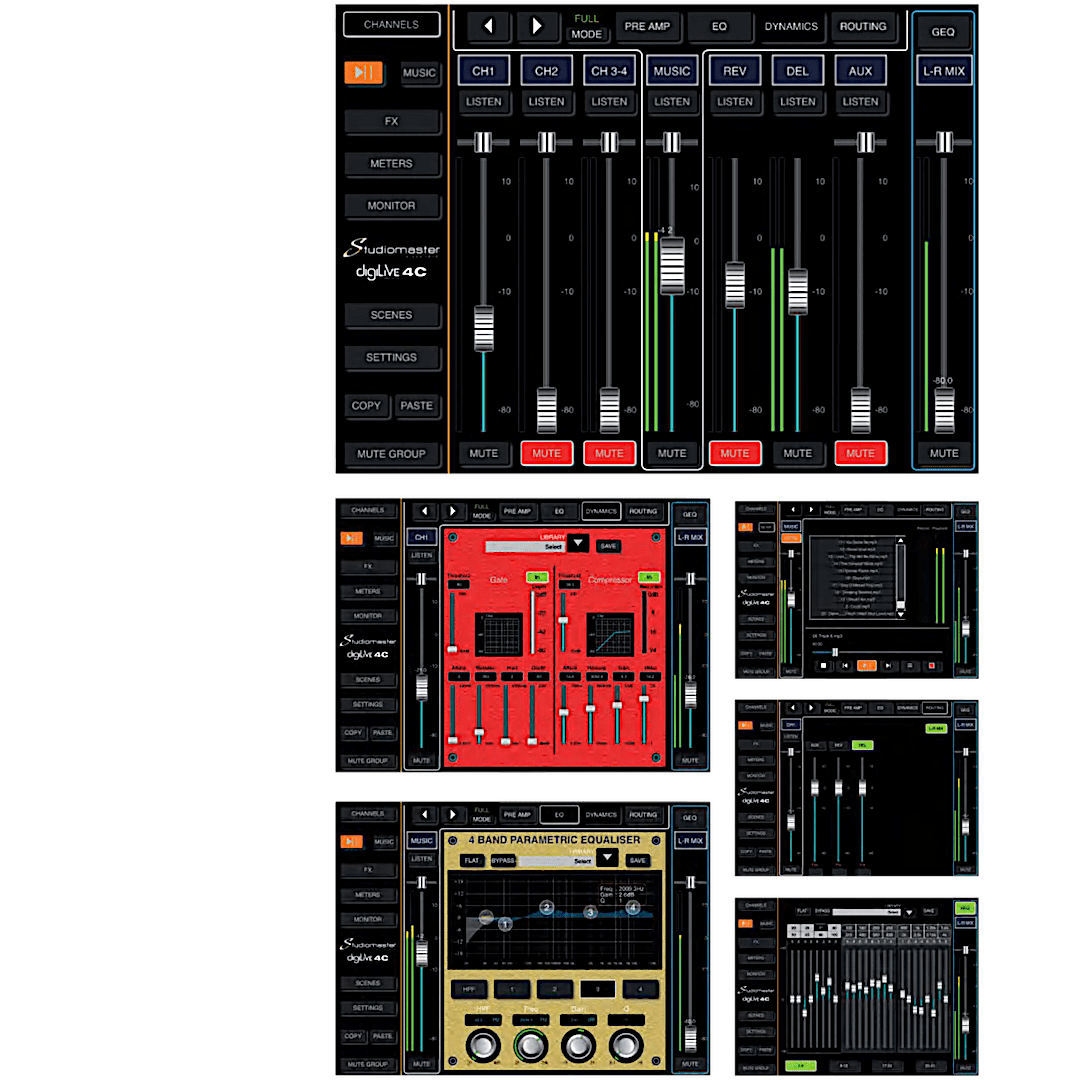

Remote control		Cross platform - Any device with Wi-Fi / Lan and web browser
Effects		2-programmable DELAY and REVERB
Digital input/outputs
USB Interface		2 for playback/recording, scene storage and system updates
Network		yes via WIFI external module or RJ45 LAN connection
Power		90-240V ~ 50/60Hz power supply 12VDC output
Dimension (W x H x D)		220 x 90 x 180mm
Net Weight		1.5kg

Resources

DIGILIVE-4C-8C User Manual

Digital Mixing Console
