Overview
8”
PASSIVE ARRAY

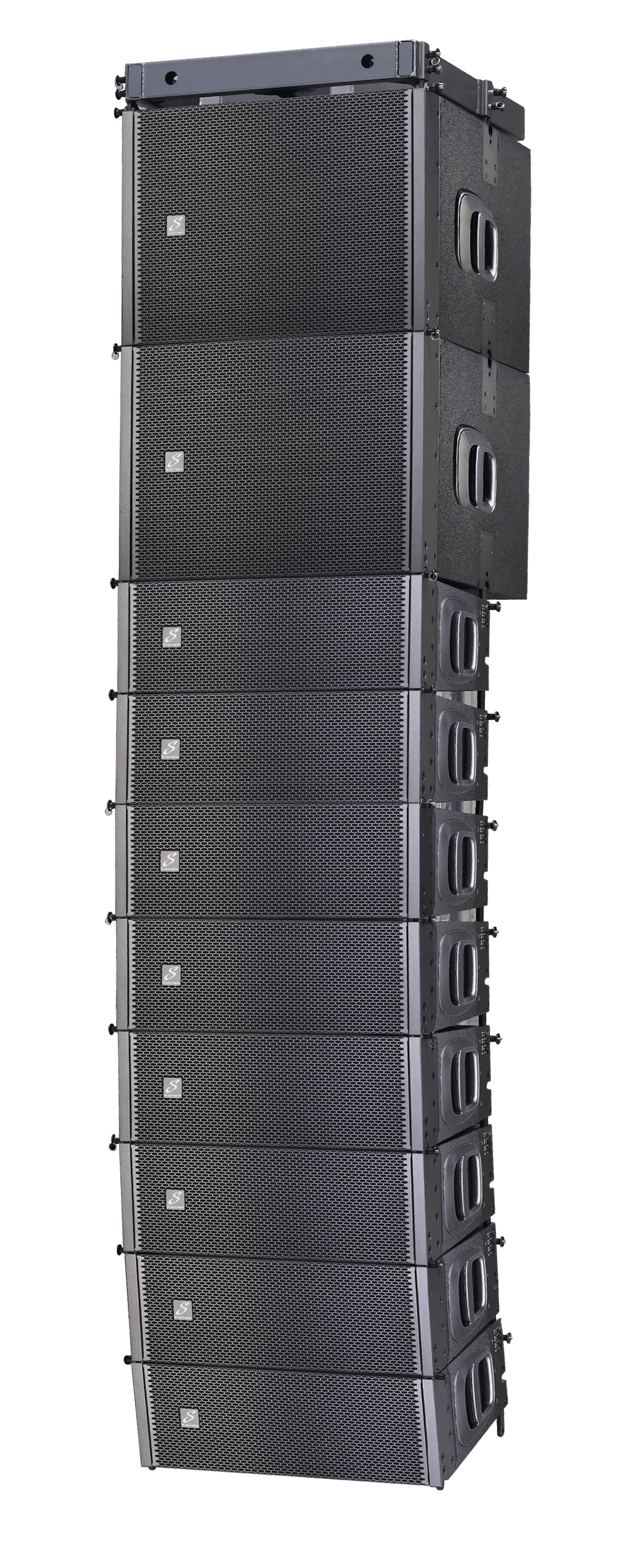

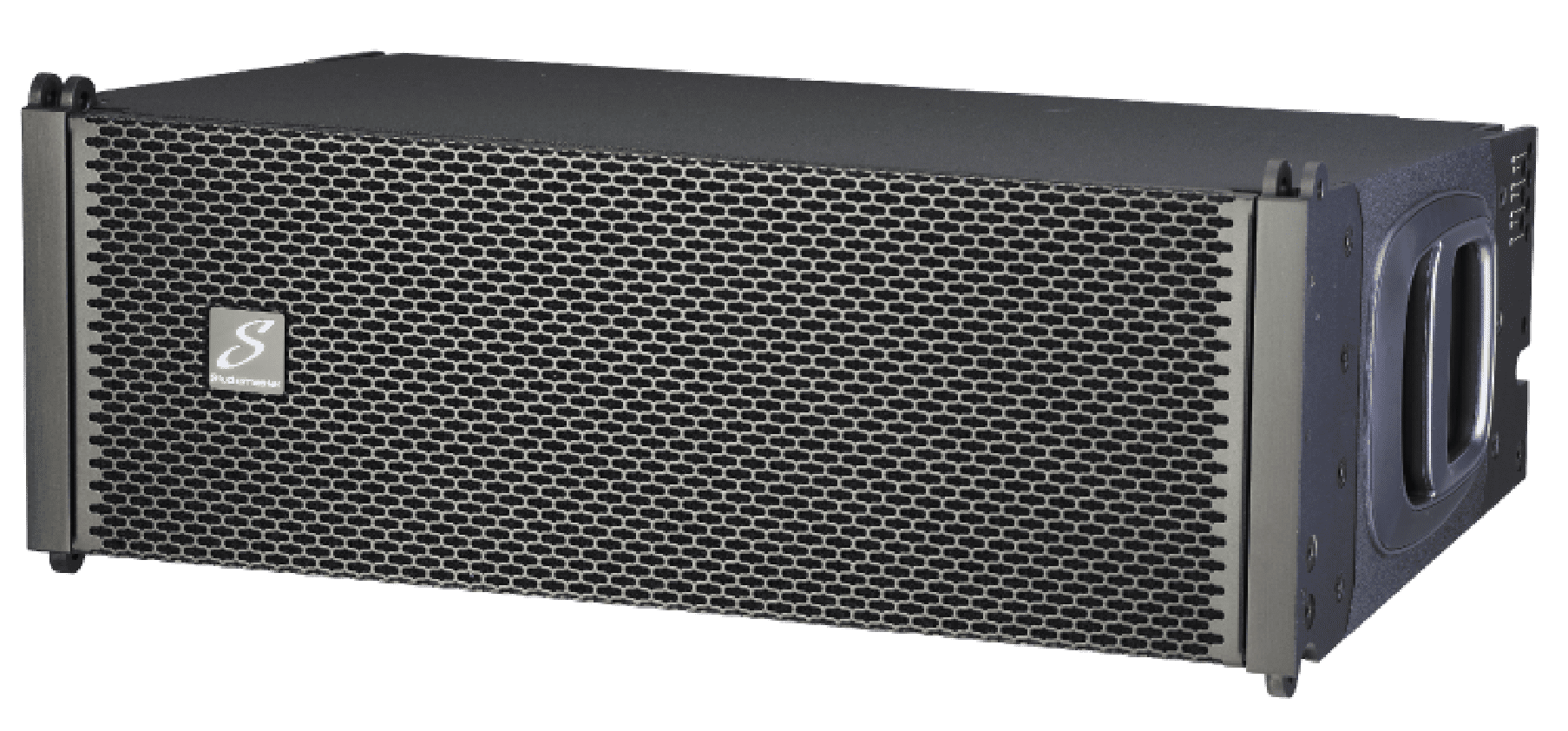

V8 line array speaker is a 2 way system, supplying a frequency
scope of 65Hz-20kHz,the design of the cabinets produce a
smooth frequency and phase response.Two 44mm tweeter
compression units and two 8″ bass units form a middle /high
frequency system, which supplies a high SPL/volume ratio.
The Mid / Low frequency of V8 utilizes two 150W 8″ paper cone
bass units fitted with a specially designed acoustic mesh cover.
which can prevent interference and optimize the middle
frequency directivity. The High frequency utilizes two 44mm
compression drivers. These decrease greatly the HF
comb-filtering and enhances the sound articulation for long
distances.

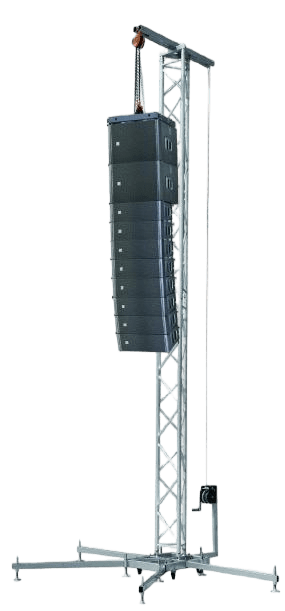

The V8 cabinet is ladder-shaped, featuring a precise aluminium
hanging system.The connection angles between cabinets can
be adjusted between 0°-6″to meet the requirement for
different locations.
The cabinet surface feature wear-resistant black galaxy paint.
Large scoop carry handles, and Neutrik NL4 connectors on all
cabinets complete the features.
V8 line array speaker is a 2 way system, supplying a frequency
scope of 65Hz-20kHz, the design of the cabinets produce a
smooth frequency and phase response. Two 44mm tweeter
compression units and two 8″ bass units form a middle /high
frequency system, which supplies a high SPL/volume ratio.
