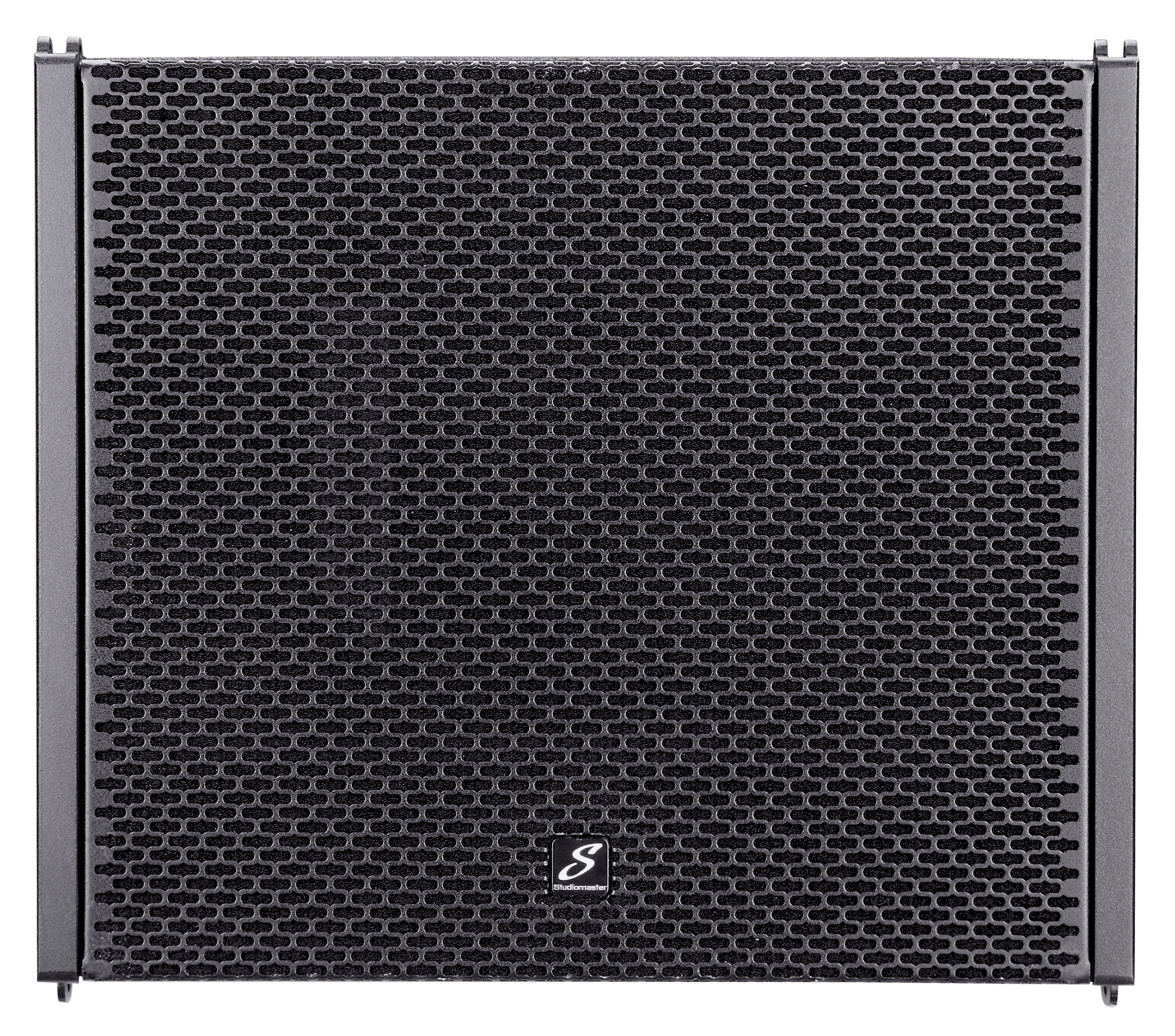

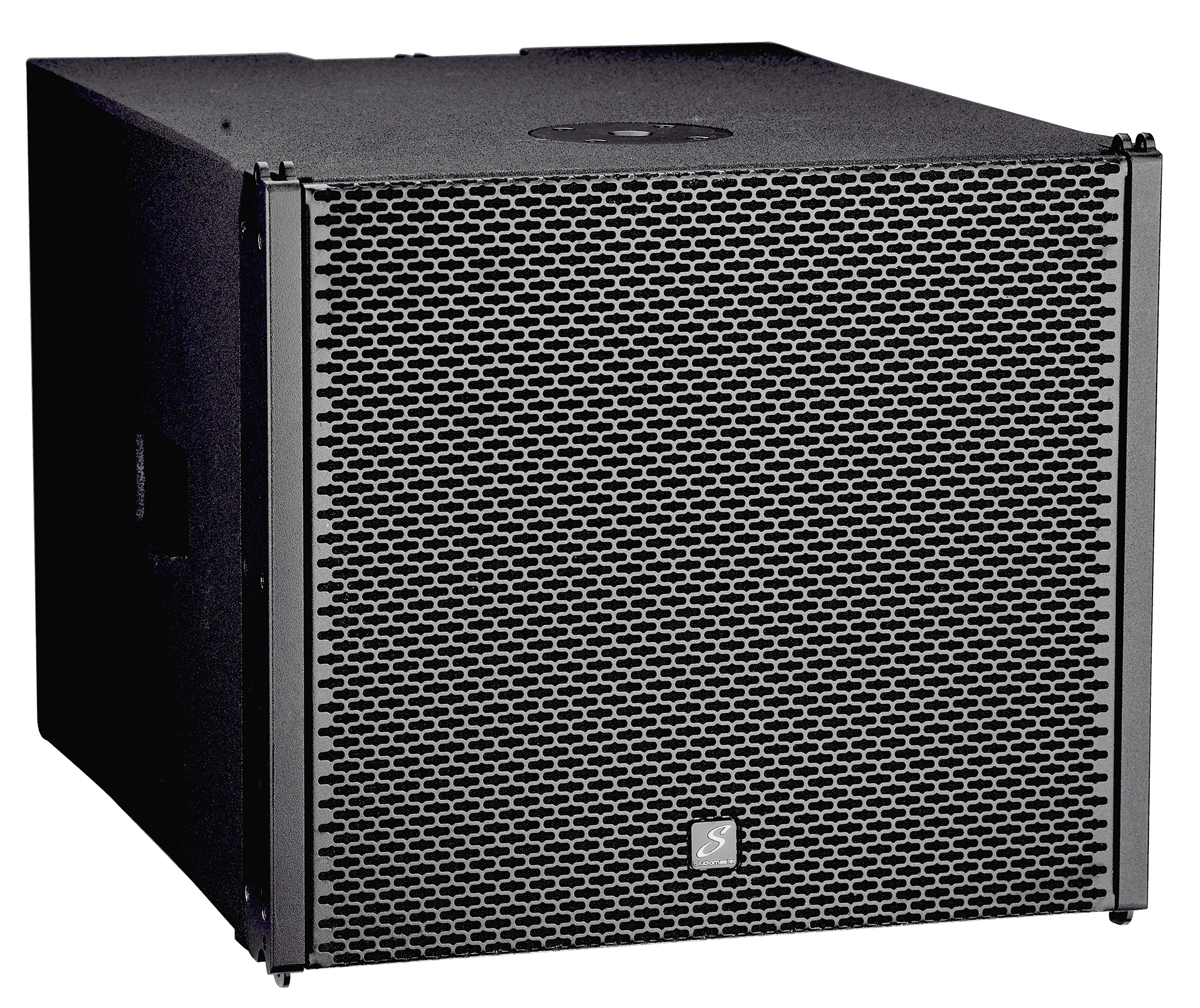

V5SA
Line Array System

V5SA
Key Features
2 x 10″ LF drivers using vented horn design to improve efficiency
High power amplifier built in with intelligent protection
DSP audio processing built in to perfectly match your sound
Designed to be compatible with V5 passive HF/MF enclosure
Overview
If you choose the active sub bass the V5SA to drive your
system, then you will benefit from all the features of the V5S,
but also have your sound amplified through the built in linear
amplifier with DSP audio processing, to perfectly match your
signal to the cabinets.

Specification
V5SA
Specification | V5SA |
MAX SPL¹ | 130dB |
PEAK² | POWER 750W+750W |
PGM | - |
RMS | - |
WEIGHT | 33kg |
Cabinet type | active line array woofer |
Frequency response | 50Hz - 350Hz (-10dB) 55Hz - 300Hz (+/-3dB) |
Sensitivity 1W@1m | 0dBu |
Coverage (H x V) | - |
MF/LF Driver | 2 x 10" / 65mm VC |
HF Driver | - |
Impedance | LF AMP + 4 x 4 ohm output for MF/HF |
Crossover frequency | DSP controlled |
Vertical spread angle | - |
Dimensions (W x H x D) | 483 x 410 x 680mm |
