Overview
The Studiomaster V5 line array is a two way system providing
superior performance with a frequency response in a range of
60Hz-20kHz. Ultra compact yet provides impressive power
levels.
The V5 HF/MF system consists of a two 5″ MF drivers
combined with a 44mm HF compression driver. This tuned
combination greatly reduces the cabinets weight and size, yet
still produces high volume and SPL specifications.
The trapezoidal enclosure is designed to keeps the
loudspeakers operating the way they are intended with sound
dispersion aimed towards the front.
The aluminium suspension system provides 0°- 10° of
adjustment to achieve the ideal positioning. V5 are connected
through two NL4MP 4 pin speaker patch cables in an array.
The cabinets are finishedin a special elastic effect hard
wearing paint, and are further protected with a tough grille.

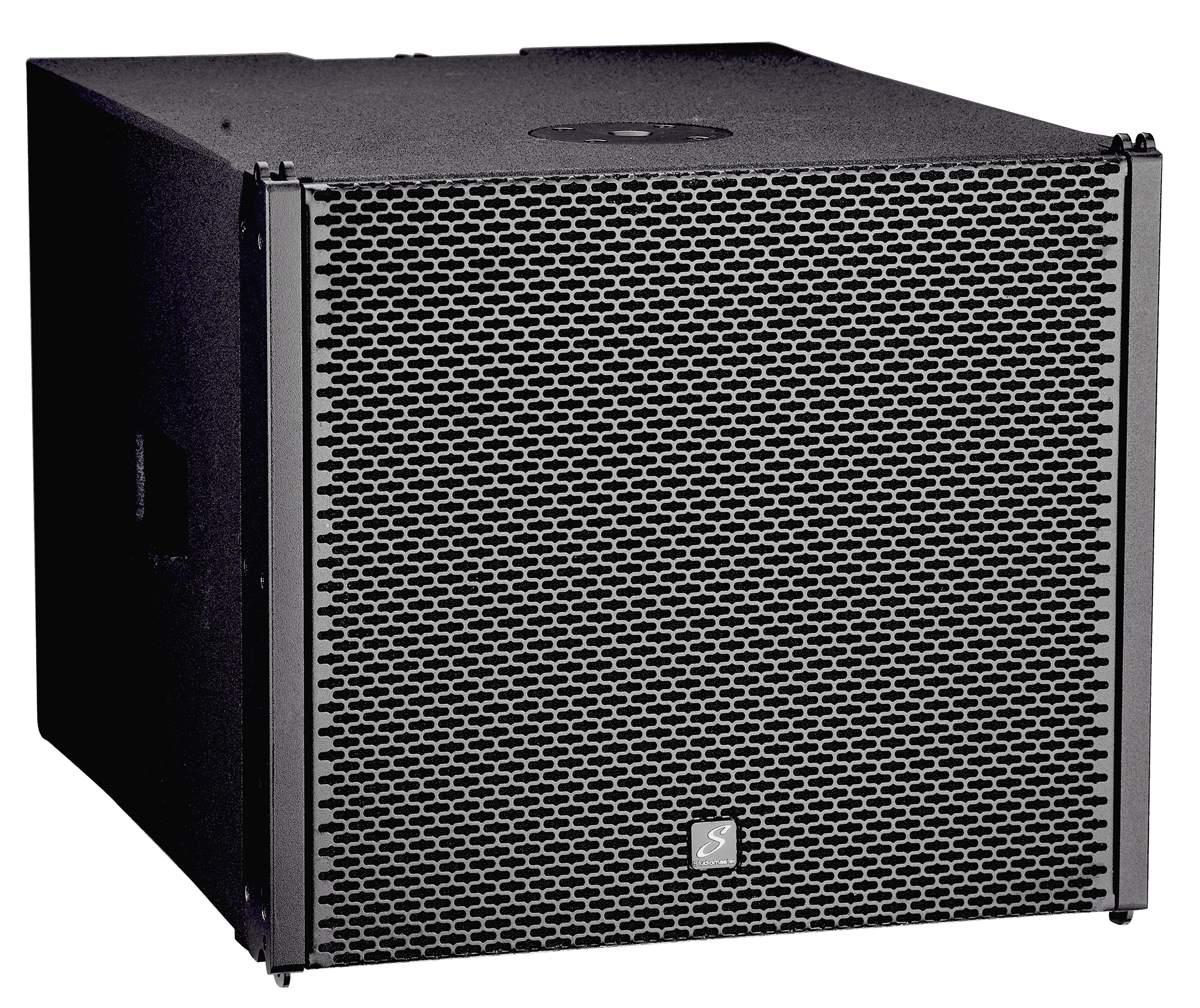

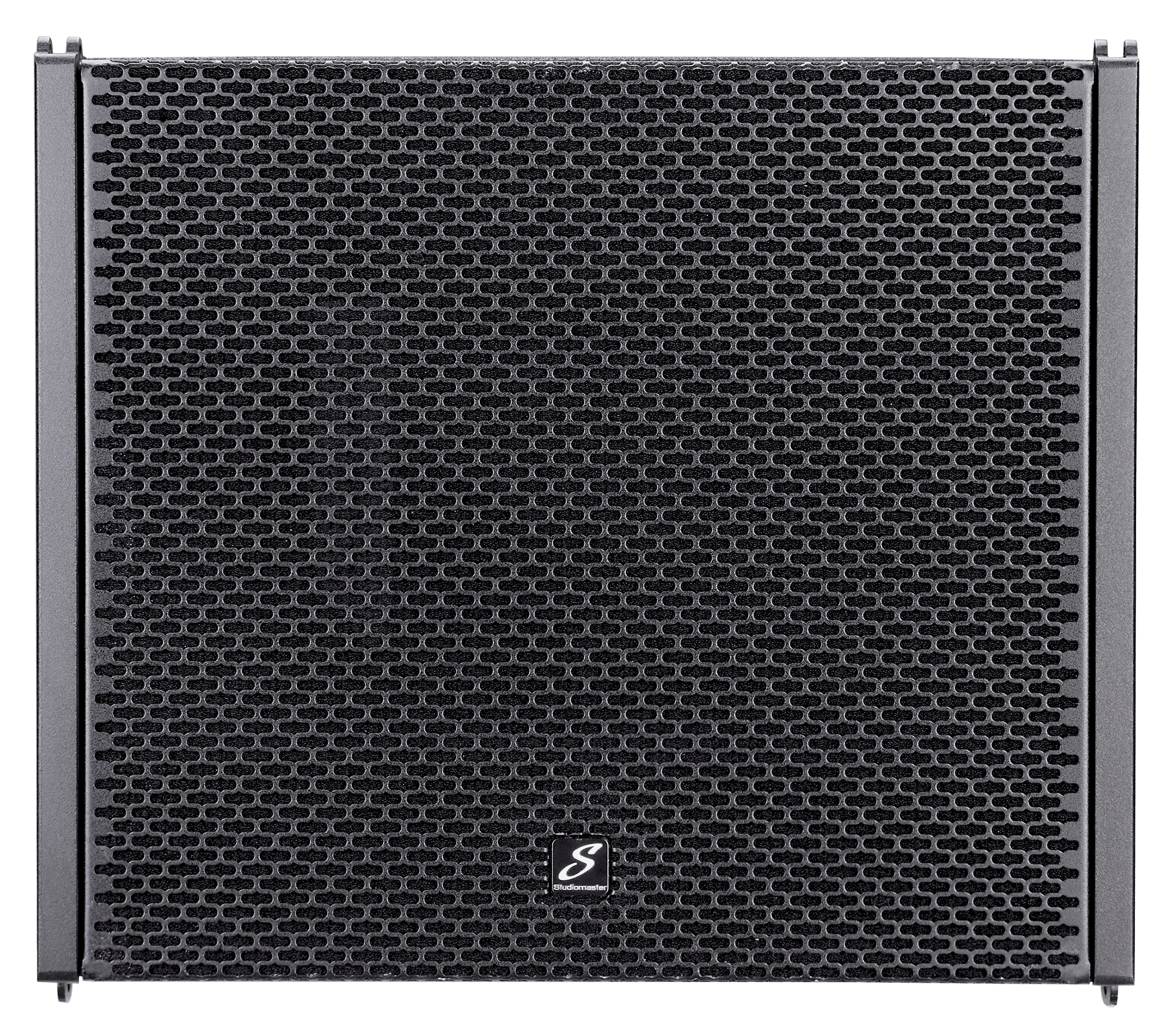

The matching V5S LF passive cabinet uses the same small
footprint cabinet shape as the smaller V5 HF/MF unit. The
V5S features two 10″ high power LF drivers with 2.6″ voice
coils. The vented horn design further improves the already
high efficiency.
If you choose the active sub bass the V5SA to drive your
system, then you will benefit from all the features of the V5S,
but also have your sound amplified through the built in linear
amplifier with DSP audio processing, to perfectly match your
signal to the cabinets.
Gallery
