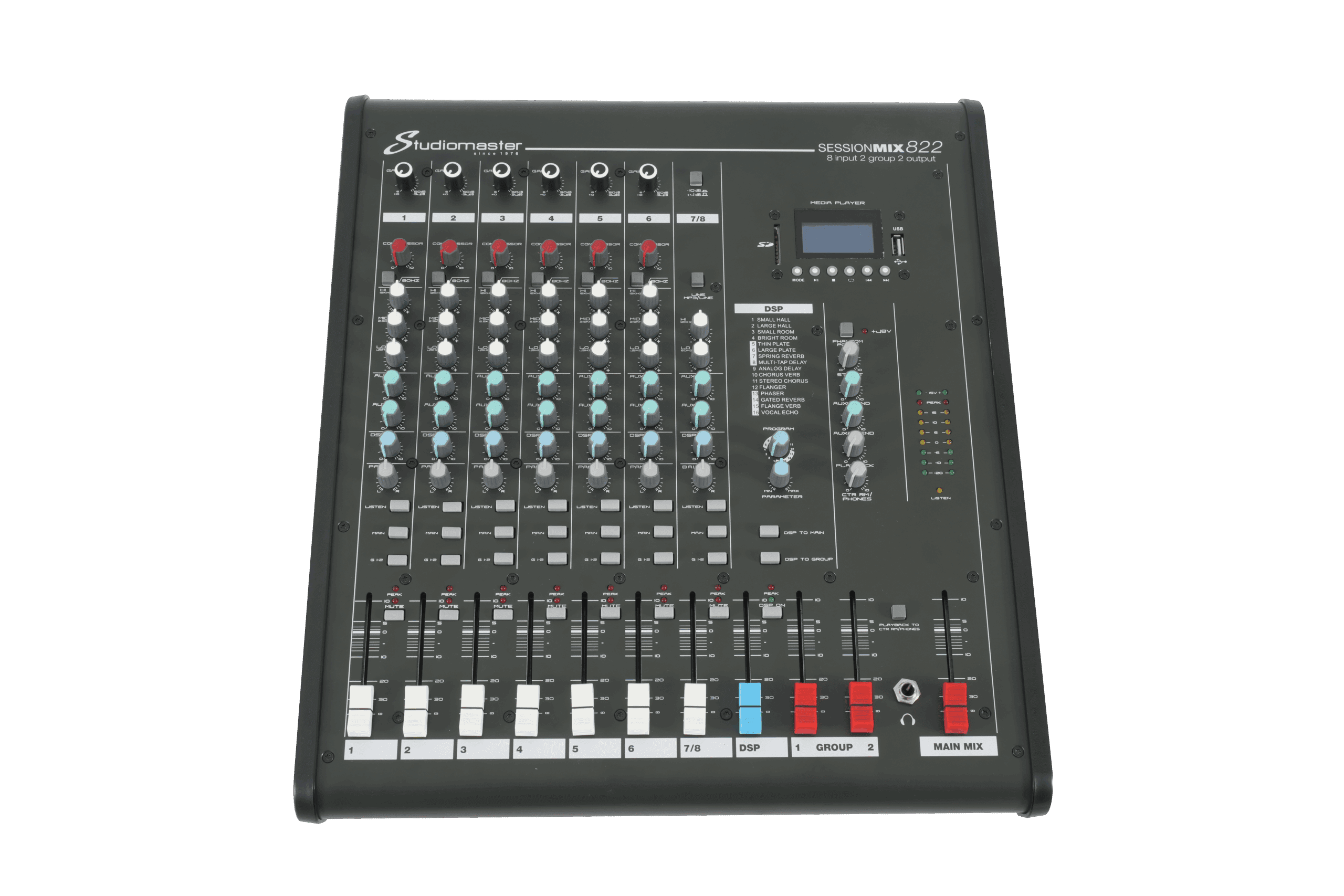

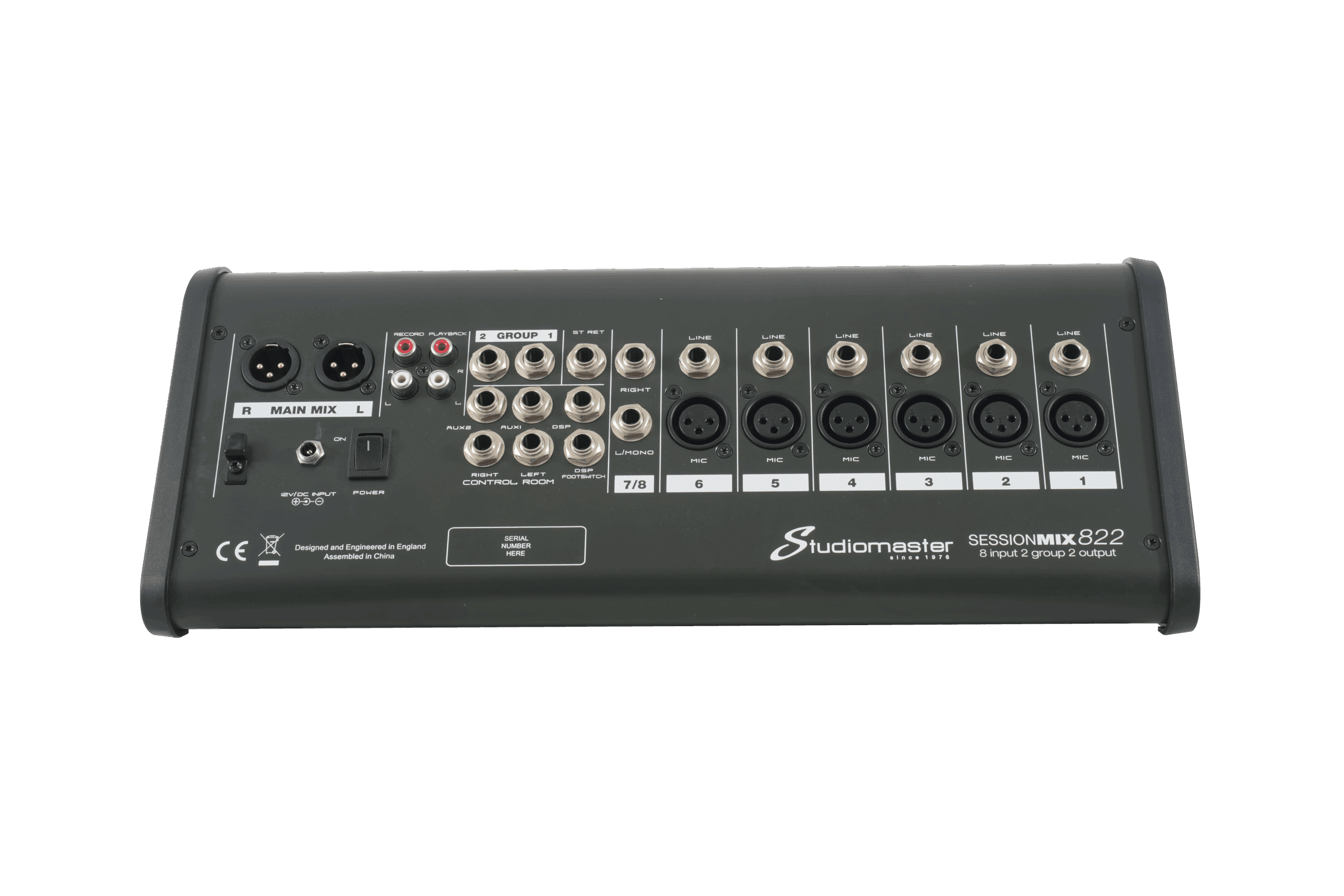

SESSIONMIX822
ANALOGUE CONSOLES

SESSIONMIX822
Key Features
8 input, 6 mic + 1 stereo, 2 group
USB/SD CARD/BLUETOOTH media module for playback/ recording
DSP EFFECTS 16 quality reverb, delay and stereo effects
3 BAND EQ on mic channel for superior tone adjustments
2 BAND EQ on stereo channels to add warmth to your instruments
2 x AUX & 1x DSP OUTPUT for a monitor mixes and external fx
Overview
Using the foundation of our popular CLUBXS16+, enhancing the design style and adding a stereo sub-group. The SESSIONMIX series of 3 models, give you up to 14 mic channels in a compact space saving design.
With the features available, such as USB recording, or the Bluetooth playback ability, there are many applications whether a small to medium size band or an installation where the channel count is important.
60mm faders on all channels, balanced XLR outputs, PFL/listen on every channel and professional mic/line inputs make the new SESSIONMIX series worth having a closer look at.

Specification
SESSION MIX822
Inputs | 8 |
Mic Input channels | 6 |
Stereo Input channels | 1 |
Sub Group / Output | 2 |
Gain | MIN ~ MAX |
Mic | 6dB ~ +50dB |
Line | +10dB ~ -34dB |
EIN | -100dB |
Frequency response | |
Mic Channel | 10Hz~20kHz+1/-3 |
THD Mic Channel | ≤0.03% |
Signal to noise ratio | 80dB |
Output Levels | MAX +26(BAL) MAX +20(UNBAL) |
Channel EQ | |
Hi | 12kHz |
Mid | 2.5kHz |
Lo | 45Hz |
Lo Cut | 80Hz |
Compression | Yes - single control |
MP3/USB/SD Audio playback | YES |
USB/SD Audio recording | YES |
DSP Effects | YES - 16 effects |
Power requirements | External 12V DC adapter |
Dimension (W x H x D) | 378.6 x 152 x 467.5mm |
Net Weight | 5.5kg |
