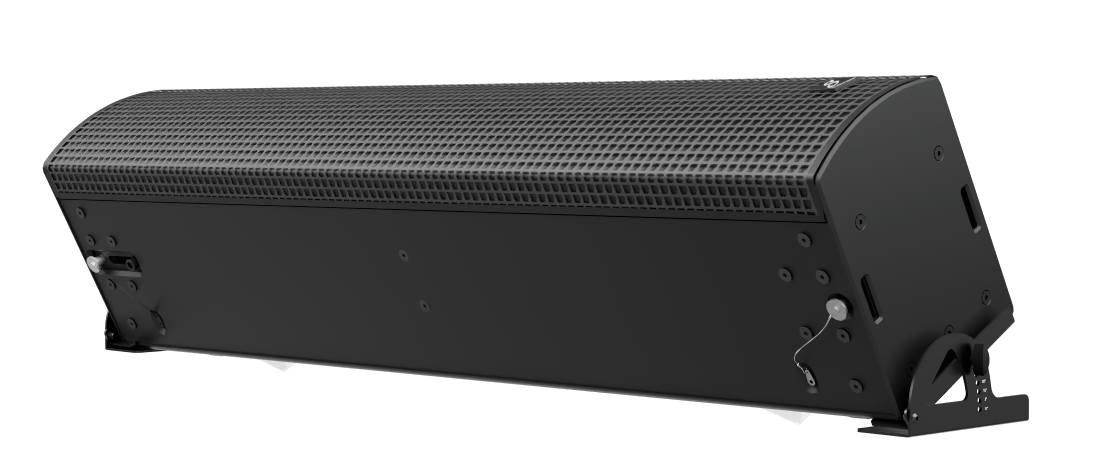

CABS Ⅰ Series
CABS Ⅰ

CABS Ⅰ
Key Features
Channel-based, with both analog and digital ports for audio transmission, including RAVENNA.
A set of fine presets can achieve sound effects for various scenarios such as meetings, perfomances with one key switch.
The built-in microphone-free feedback suppression algorithm will not produce feedback at any position on the stage.
No need to install any monitor speakers in the stage area, and the sound reinforcement effect in the center of the stage is loud and clea
Remote control can be accessed via Ethernet interface.
Overview
Work for any room shape
Adjustable directivity
Sound beam synthesis algorithm
Sound follow tinger movement

Work for any room shape
Adjustable directivity
Sound beam synthesis algorithm
Sound follow tinger movement

Gallery
Specification
CABS Ⅰ
| Performance Index | |
| Components | 8x65',32x1" |
| Channel counts | 40 independent DSP and AMP |
| Frequency response | 60H2 -20kHz |
| Rated power | 2000w |
| Max SPL | 136dB |
| Interface type | RAVENNA digital network transmission Analogchannel input interface (balanced signal) USB 2.0 interface x 2 Network Control Interface |
| Dimension | 1380x205x370mm |
| Net weight | 49kg |
