AM Series

Key Features

8×8 Analog & Network I/O Eight MIC/LINE inputs, eight balanced outputs, and an8×8 AES67 network interface.

Advanced DSP Engine Auto-Mixing, AEC, AGC, noise reduction, EQ, dynamics, FIR options, and more.

24 Channel Internal Matrix Route analog, network, USB, Auto Mix, and AEC signals with total freedom.

Precision Preamps Selectable gain (0/15/20/24 dB) with individual 48V phantom power.

Control & Integration Dual Gigabit Ethernet, RS232, dual RS485, and 16 programmable GPIO ports.

Ideal For Conference rooms • Hospitality venues • Lecture theatres • Corporate AV • Houses of worship

Overview

The AM24 is a high-performance 1U digital audio matrix designed

for mid sized installations that demand clean audio, intelligent

processing, and flexible routing. With hybrid analog network I/O

and a powerful DSP engine, it serves as the central hub for modern

AV systems.

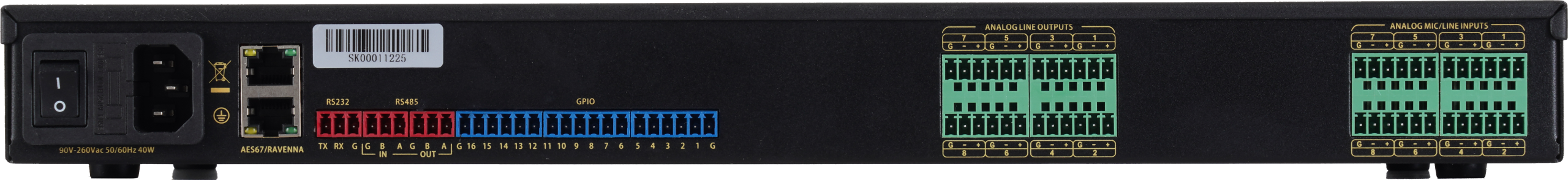

Gallery

Specification

Specification	AM 24	AM 40
Analog Audio Channels	8-in /8-out	16-in / 16-out
Network Audio Channels (AES67)	8-in /8-out	16-in / 16-out
Total Matrix Routing Channels	24 x 24	40 x 40
Internal Mixing Channels	Up to 24 (analog + network + USB + automix + AEC)	Up to 40 (analog + network + USB + automix + AEC)
Network Audio Protocol	AES67 (Dante multicast compatible)
Network Audio Latency	1 / 2 / 5 / 6ms (selectable)
Sampling Rate	48kHz
AD/DA Resolution	24-bit
Mic Preamp Gain	0 / 15 / 20 / 24dB (4 steps, per channel)
Phantom Power	+48V, per channel switchable
Signal-to-Noise Ratio	≥99dB (0dB gain) / ≥85dB (24dB gain)
THD+N	≤0.005%
Channel Isolation	≤ -90dB
Frequency Response	±0.2dB (20Hz-20kHz)
Max Input / Output Level	14dBu ±1dBu
Dynamic Range	≥109dB
Automixing Channels	3
AEC / ANS / AGC	1 channel
Network Ports	2 x Gigabit Ethernet
Control Interfaces	RS232 x1, RS485 x2, GPIO x16
Power Supply	90-260V AC, 50/60Hz, 40W
Dimensions (WxHxD)	482 x 45 x 231 mm
Net Weight	2.7kg	2.8kg
