Vortex 18SA
Active Sub Speaker
Vortex 18SA
Key Features
2400W power handling
Plywood cabinet
Full face steel grille
large carry handles
Overview

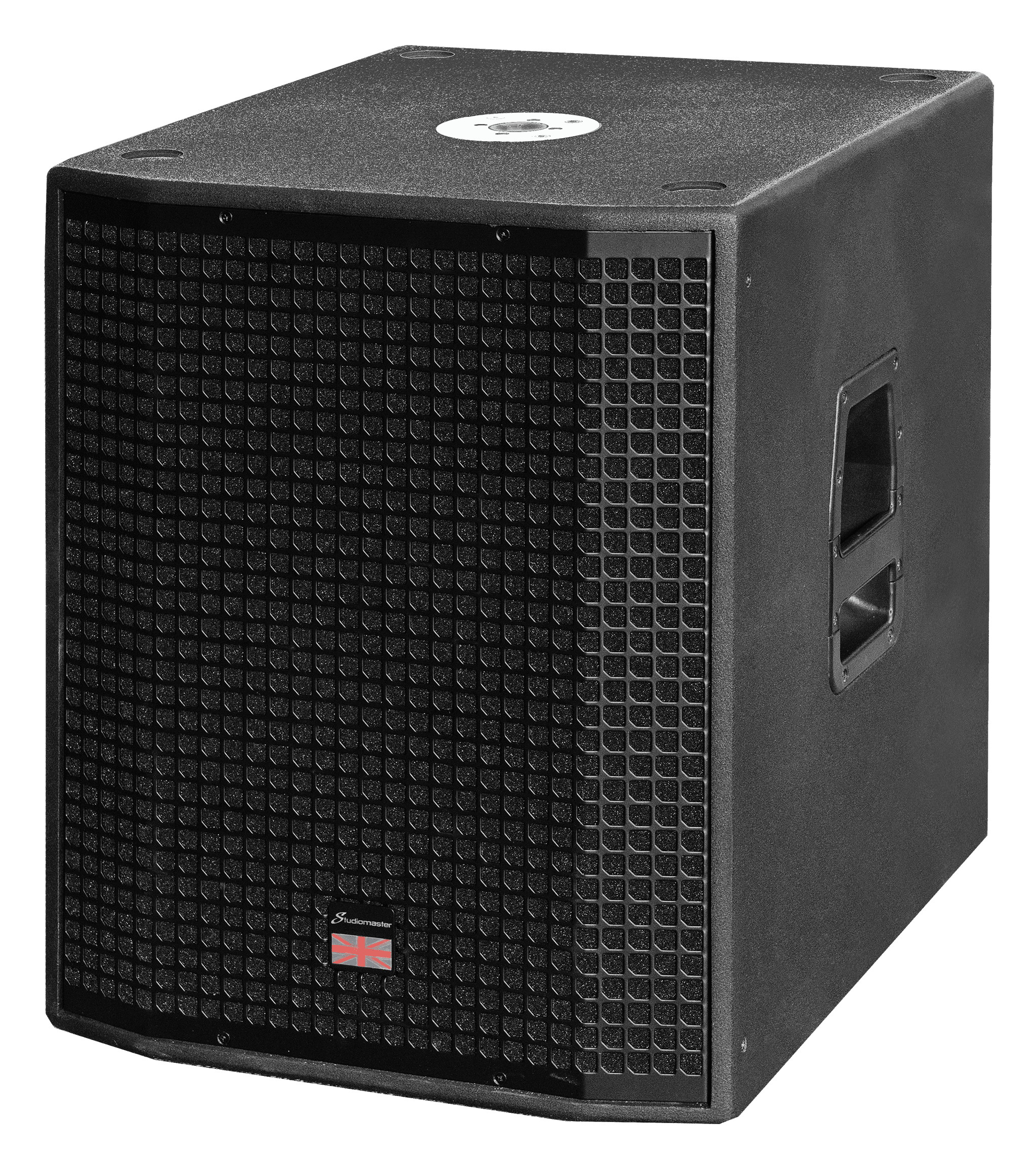

The Vortex 18SA is a compact, high power 18″ active sub bass cabinet, delivering 2400W of low frequencies between 43 -150 Hz. Manufactured with 15mm plywood and a durable paint finish. Large carry handles and a 35mm top hat make moving and installing this system simple. Dual inputs and easy to use DSP allow the Vortex 18SA to be set-up in seconds.
Specification
| MAX SPL | 134dB |
| AMP PEAK | 2400W |
| AMP PGM | 1200W |
| AMP RMS | 600W |
| Cabinet type | 18" active subwoofer |
| Frequency response | 45Hz-100kHz |
| Input sensitivity | 0dBu |
| Coverage(H x V) | - |
| LF Driver | 18" / 99.2mm VC |
| HF Driver | - |
| Crossover frequency | 120Hz |
| DSP-24bit | Low cut / delay / volume |

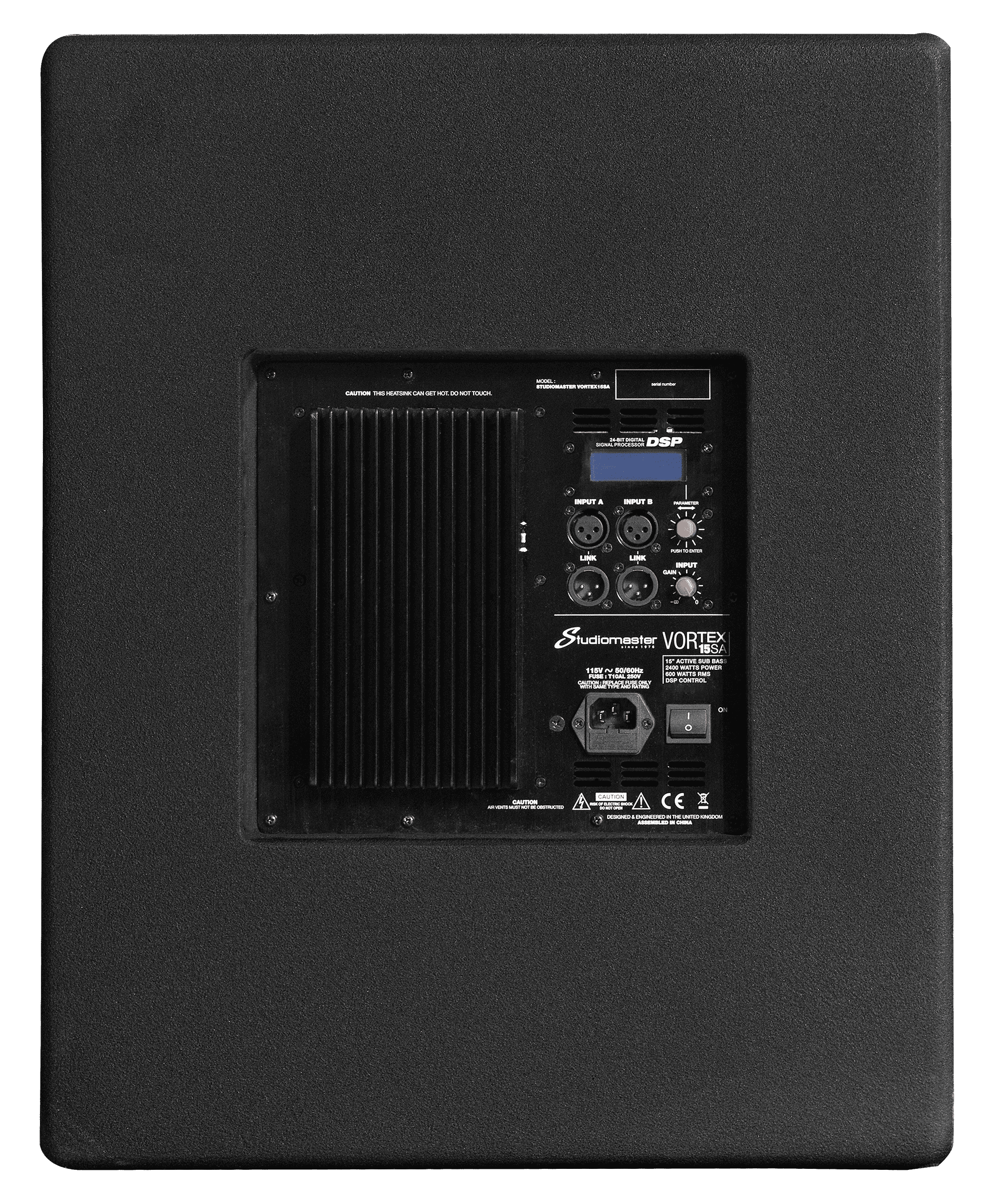

| Connection | 2 x balanced XLR input, 2 x balanced XLR output |
| Mounting | - |
| Dimension (W × H × D) | 530 x 682 x 610mm |
| Net Weight | 35kg |
