Key Features

15MM PLYWOOD CONSTRUCTION

35MM TOP HAT FOR STAND MOUNT

MULTIPLE M10 FLYING POINTS

HARDWEARING PAINT FINISH

RECESSED CARRY HANDLES

Overview

VENTURE Passive 12″ / 15″ full range / 18″ sub bass
up to 400W (RMS) power handling
neodymium LF and HF magnets
2 x 4 – pole speaker connector

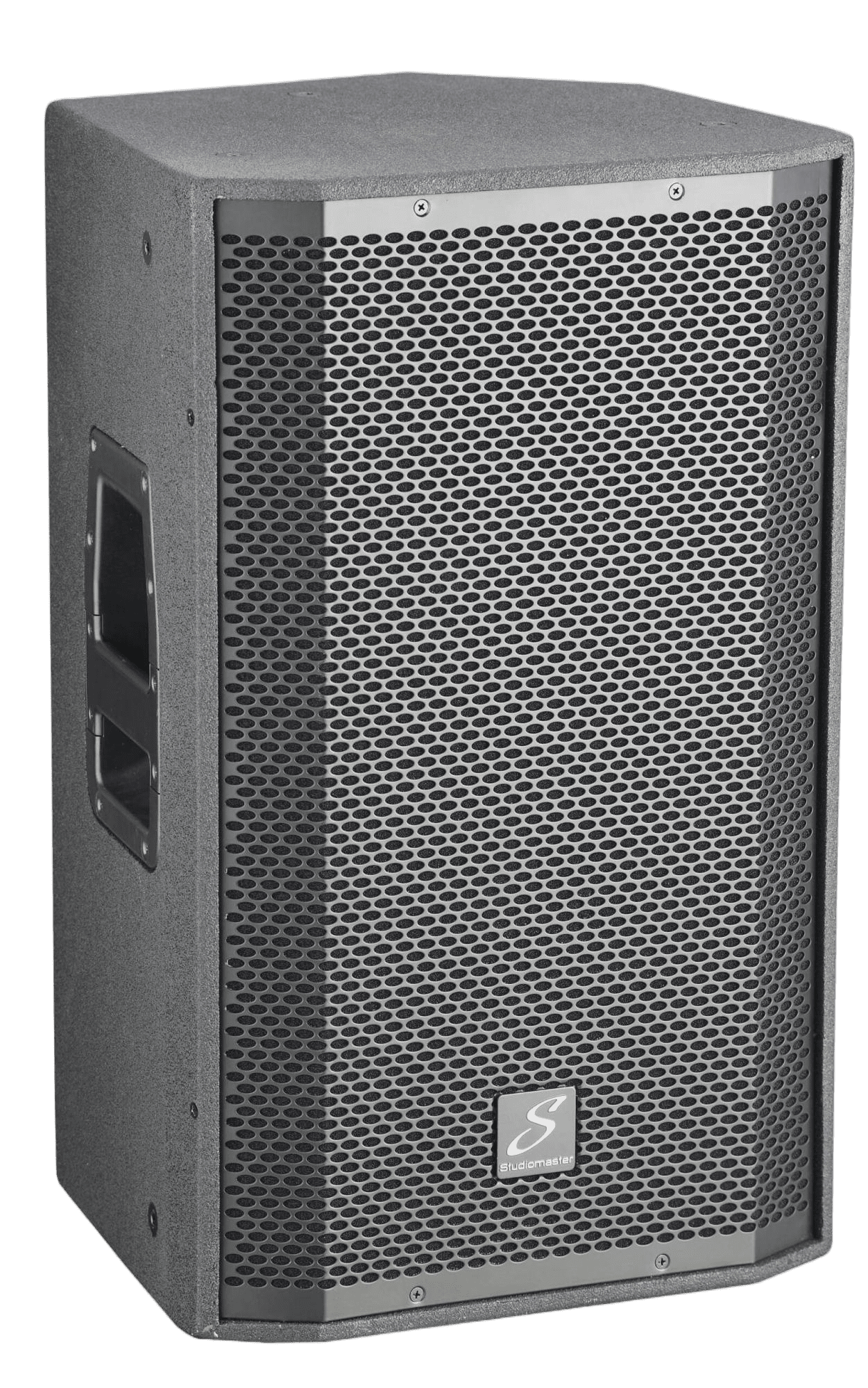

Pa Speakers Venture Series Venture15 Leftangle Studiomaster

Gallery

Specification

Venture 15

MAX SPL	134dB
AMP PEAK	1600W
AMP PGM	800W
AMP RMS	400W
Net Weight	21kg
Cabinet type	2 - way passive
Frequency response	55Hz - 18kHz
Input Sensitivity	96dB
Coverage (H × V)	80°× 60°
Nominal Impedance	4ohm
LF Driver	15"/50mm VC
HF Driver	1.75"/50mm VC
Crossover frequency	1.5kHz
Input connection	2 × NL4
Dimension (W × H × D )(mm)	430 × 704 × 400

Resources

Venture series Manual

Venture series Catalogue
