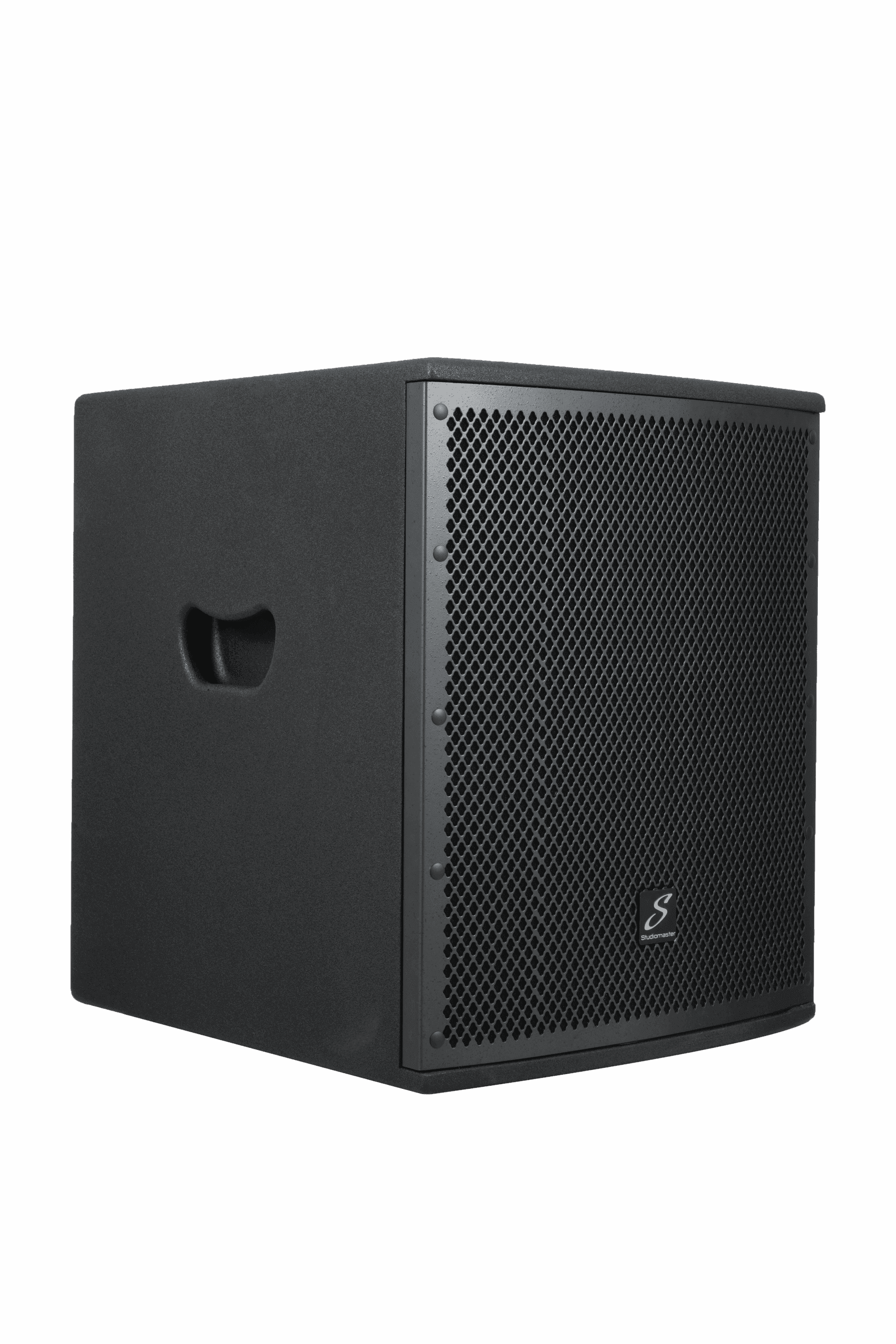

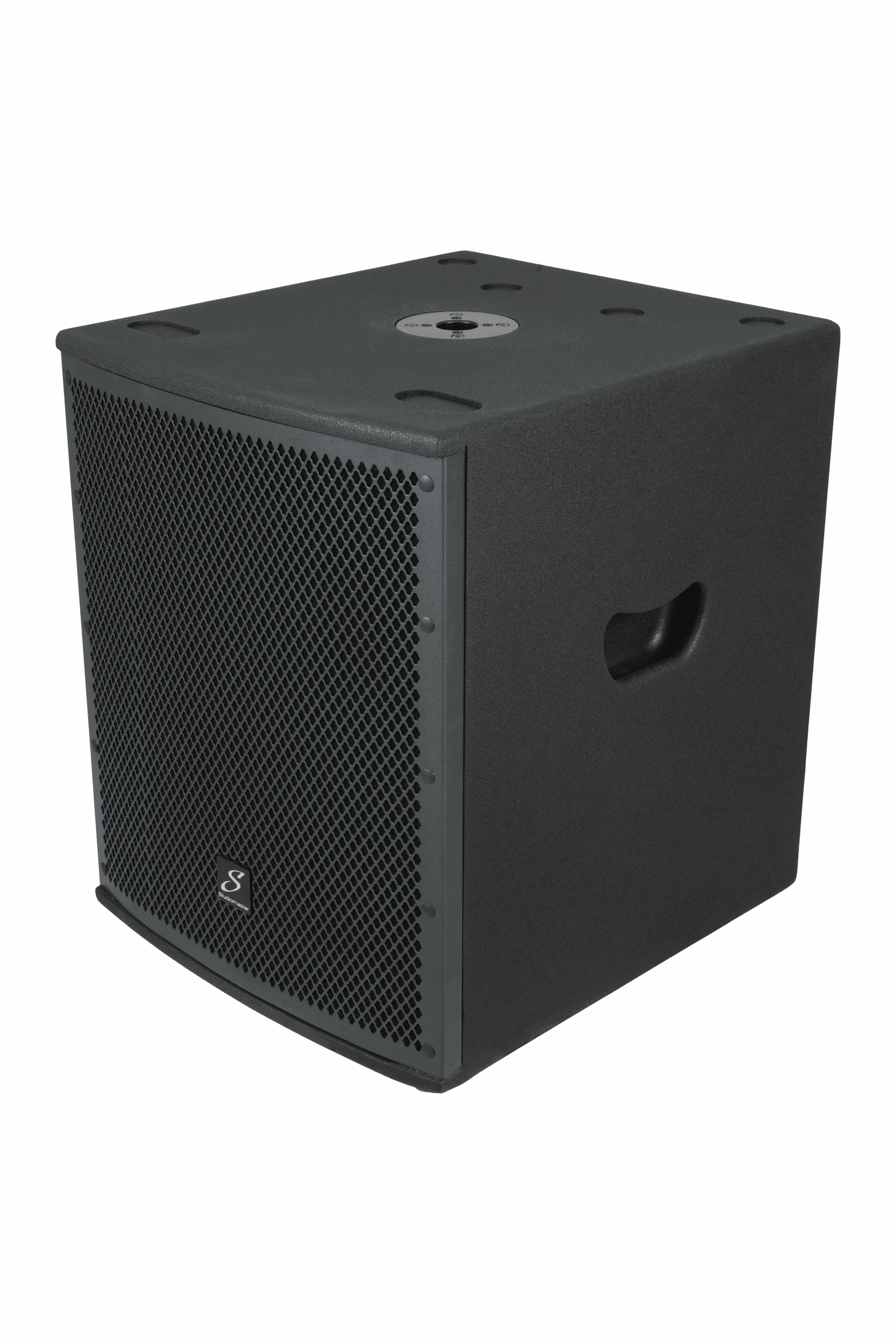

TRX 15S
Passive Sub Speaker

TRX 15S
Key Features
TWO INPUTS WITH EQ ON ACTIVES
1″ THROAT COMPRESSION DRIVERS
DURABLE MDF CONSTRUCTION
MULTIPLE M10 FLYING POINTS
35MM TOP HAT FOR STAND MOUNT
CAST ALUMINIUM SPEAKER GRILLS
RECESSED CARRY HANDLES
REAR CASTORS ON TRX215 MODEL
Overview
The TRX series is a range of high performance, versatile enclo- sures with a massive 15 models to choose from, with both passive and active models in the range.
All models feature cast aluminium chassis heavy duty bass transducers with large 1” throat compression drivers, packaged in a rugged hard wearing paint finish. TRX10, 12, 15 and 15M passive and active models have multiple M10 hanging points, and the TRX10, 12 and 15 also feature 35mm pole sockets.
All models have large recessed side handles, and for total ease the larger 2×15” TRX215 comes with rear mounted castors.
Specification
TRX15S
MAX SPL | 128dB |
PEAK | 2400W |
PGM | 1200W |
RMS | 600W |
WEIGHT | 35.2kg |
Cabinet type | passive subwoofer |
Frequency response | 40Hz-250Hz |
Input sensitivity | 98dB |
Coverage (H × V) | - |
LF Driver | 8 ohm |
HF Driver | 15"/100mm VC |
Crossover frequency | - |
Connection | - 2 × 4-pole |
Dimension (W × H × D) | 479 × 581 × 548mm |
