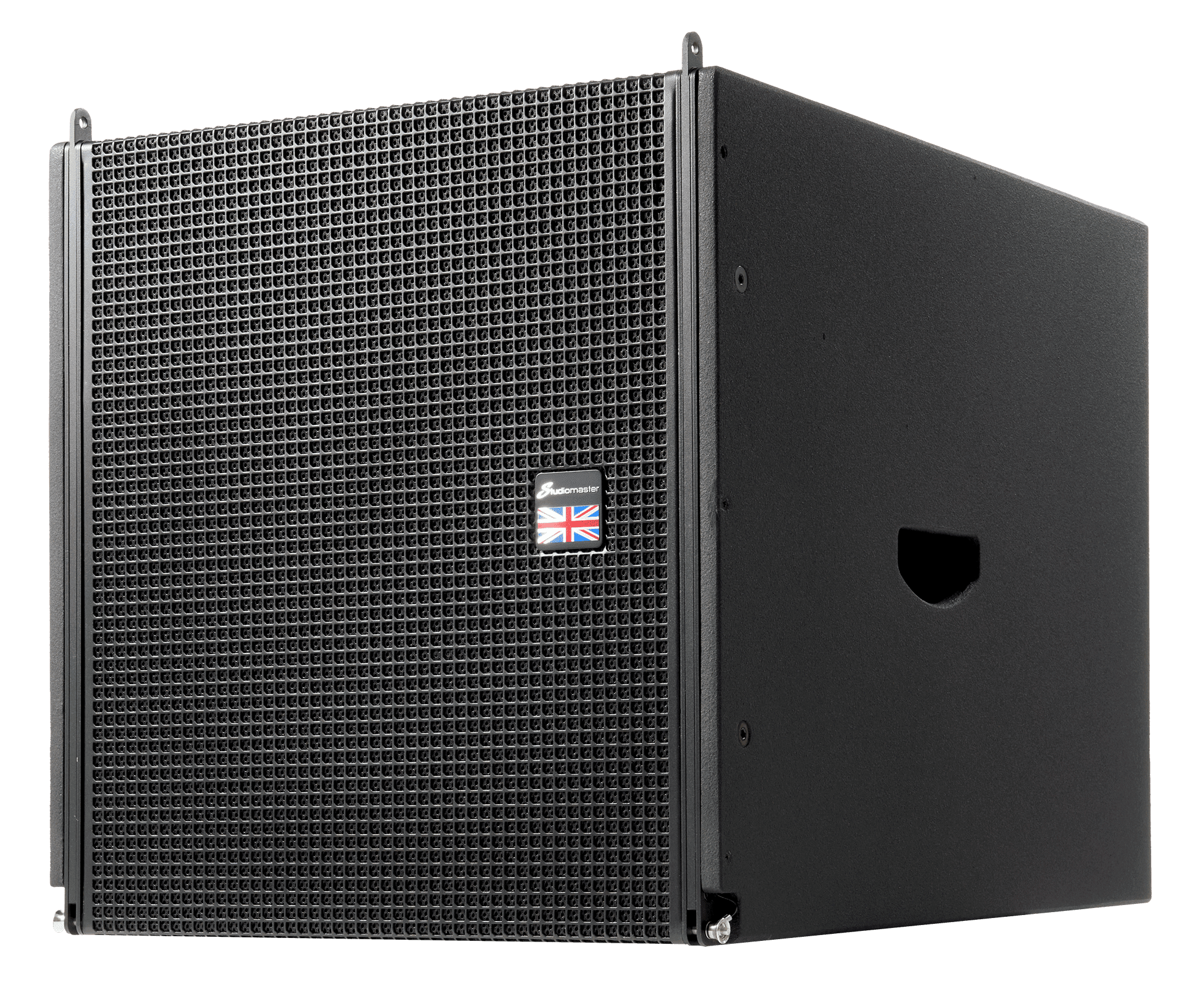

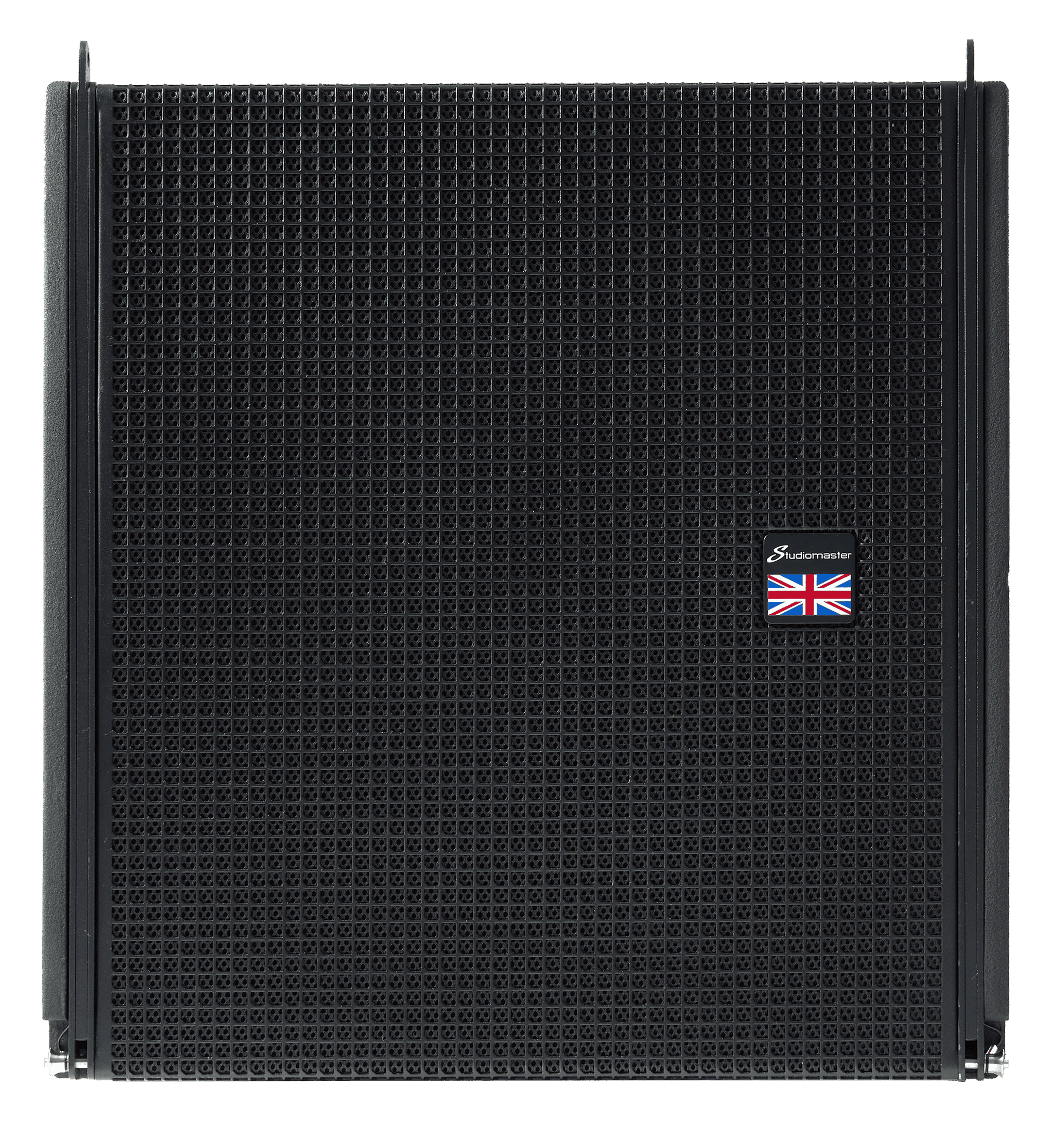

V6S
Line Array System

V6S
Key Features
High performance 1 x 15″ LF driver with 4″ / 100mm voice coil
High performance 130dB SPL
Convenient scoop handles

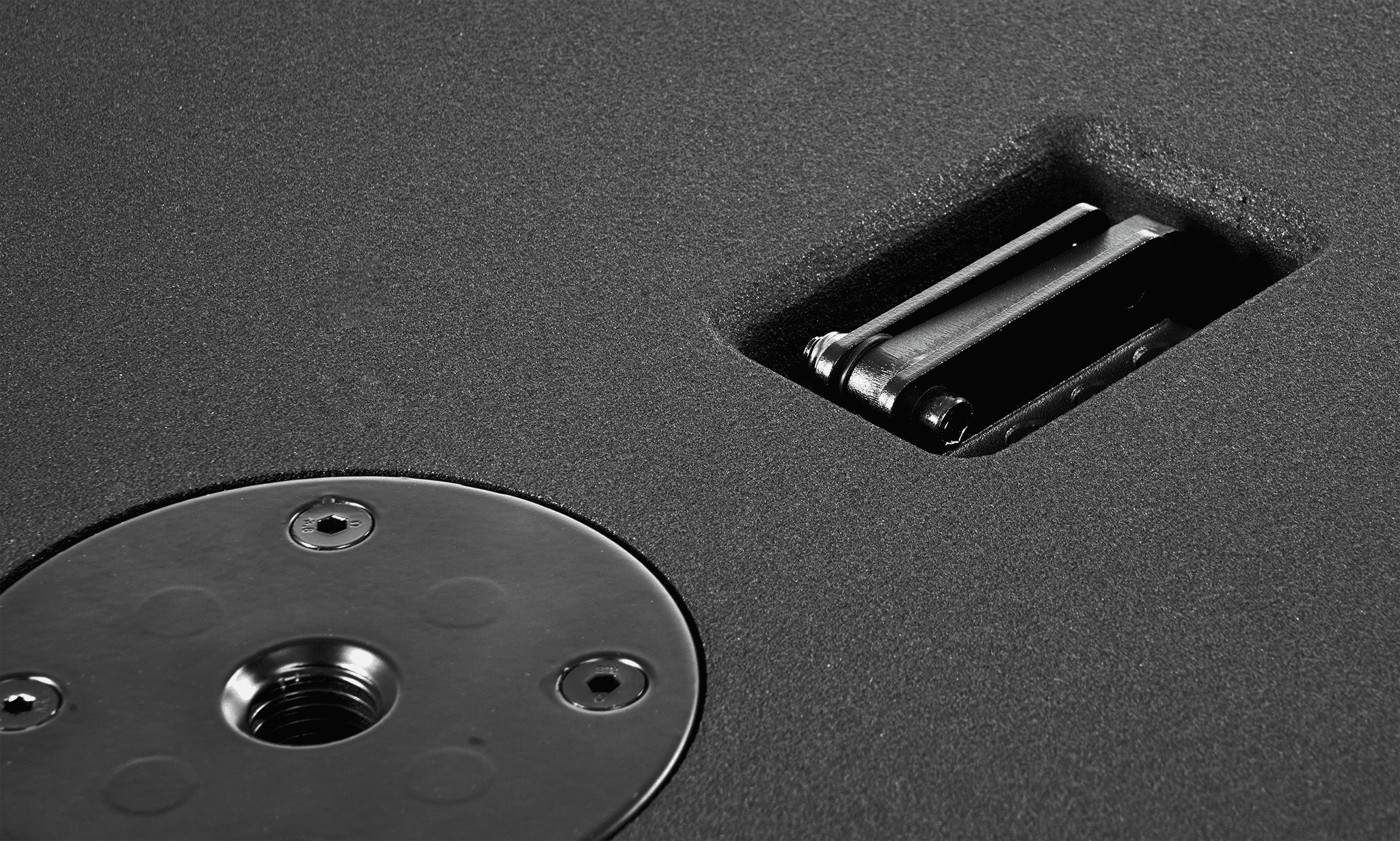

Adjustable suspension system available
Overview
Active line array systems tend to be heavy, bulky and prone to
damage if used in rentals or live touring conditions.

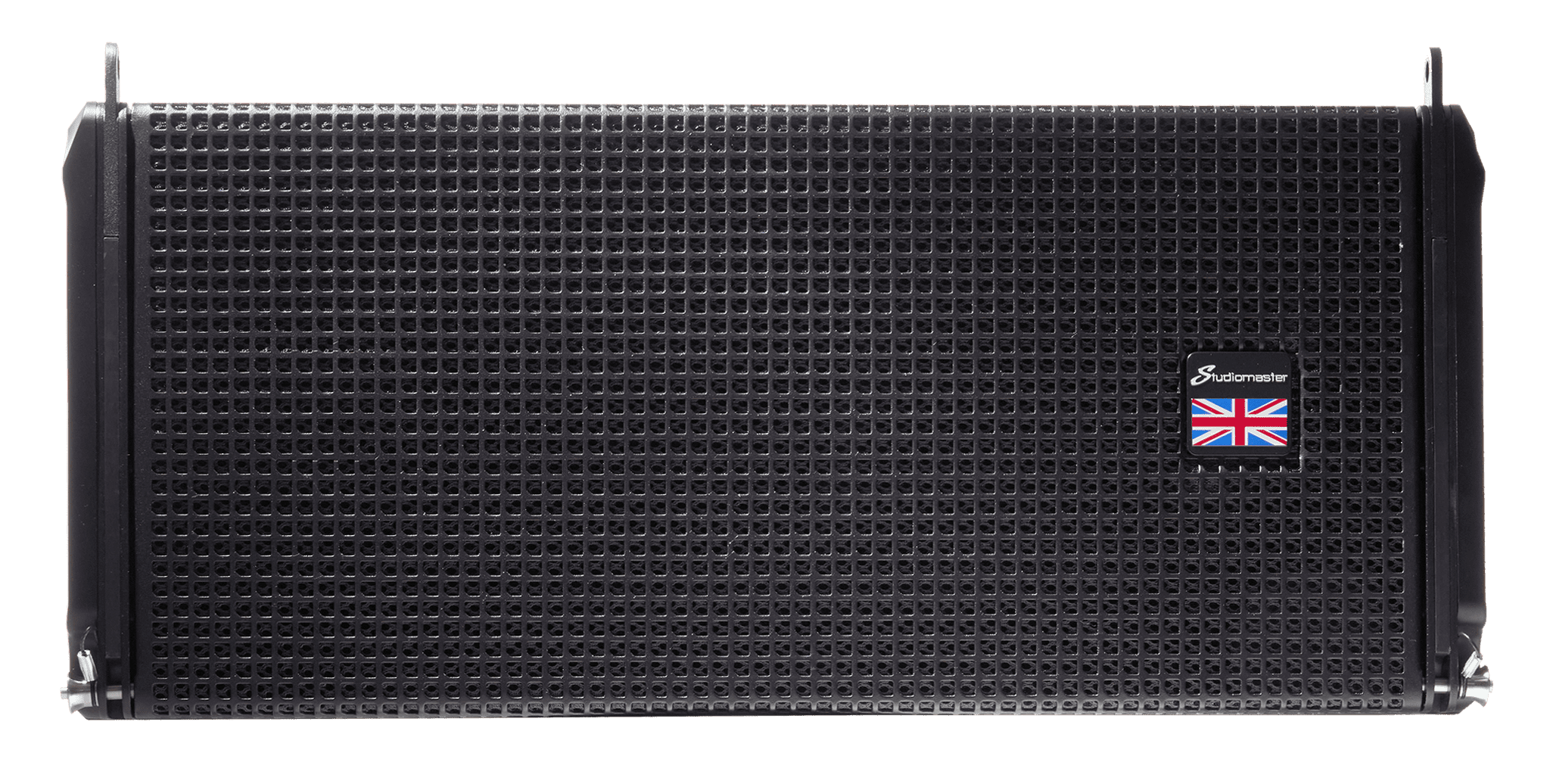

The V6 6.5″ MF/HF cabinet is made from durable but hard wearing
reinforced PP composite material giving it superior weight
advantages.
Built in high performance power amplifier, DSP control and
powerful twin 6.5″ drivers with 38mm voice coils. The 3″
neodymium HF driver has a 74mm voice coil, giving the V6A
MF/HF enclosure up to 130dB SPL

Specification
V6S
MAX SPL¹ | 131dB |
AMP POWER² | 800W |
WEIGHT | 37kg |
Cabinet type | passive line array woofer |
Frequency response | 40Hz - 150Hz (-10dB) |
Coverage (H × V) | - |
Sensitivity (1W@1m) | 96dB |
Impedance | 8 ohm |
LF Driver | 1 × 15" / 100mm VC |
MF Driver | - |
HF Driver | - |
DSP | - |
Crossover frequency | - |
Vertical splay angle | - |
Dimensions (W × H × D) | 474 × 506 × 673mm |
