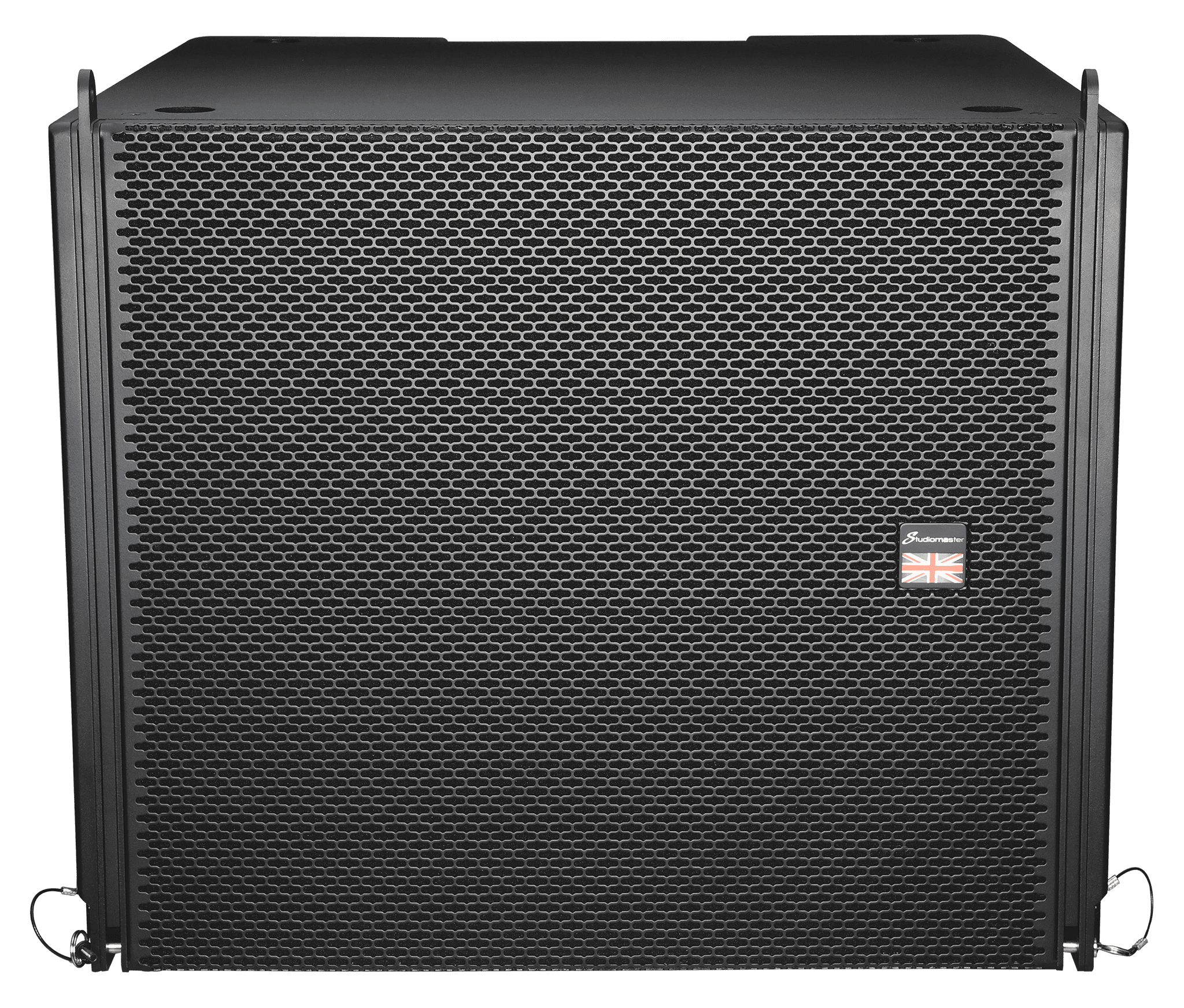

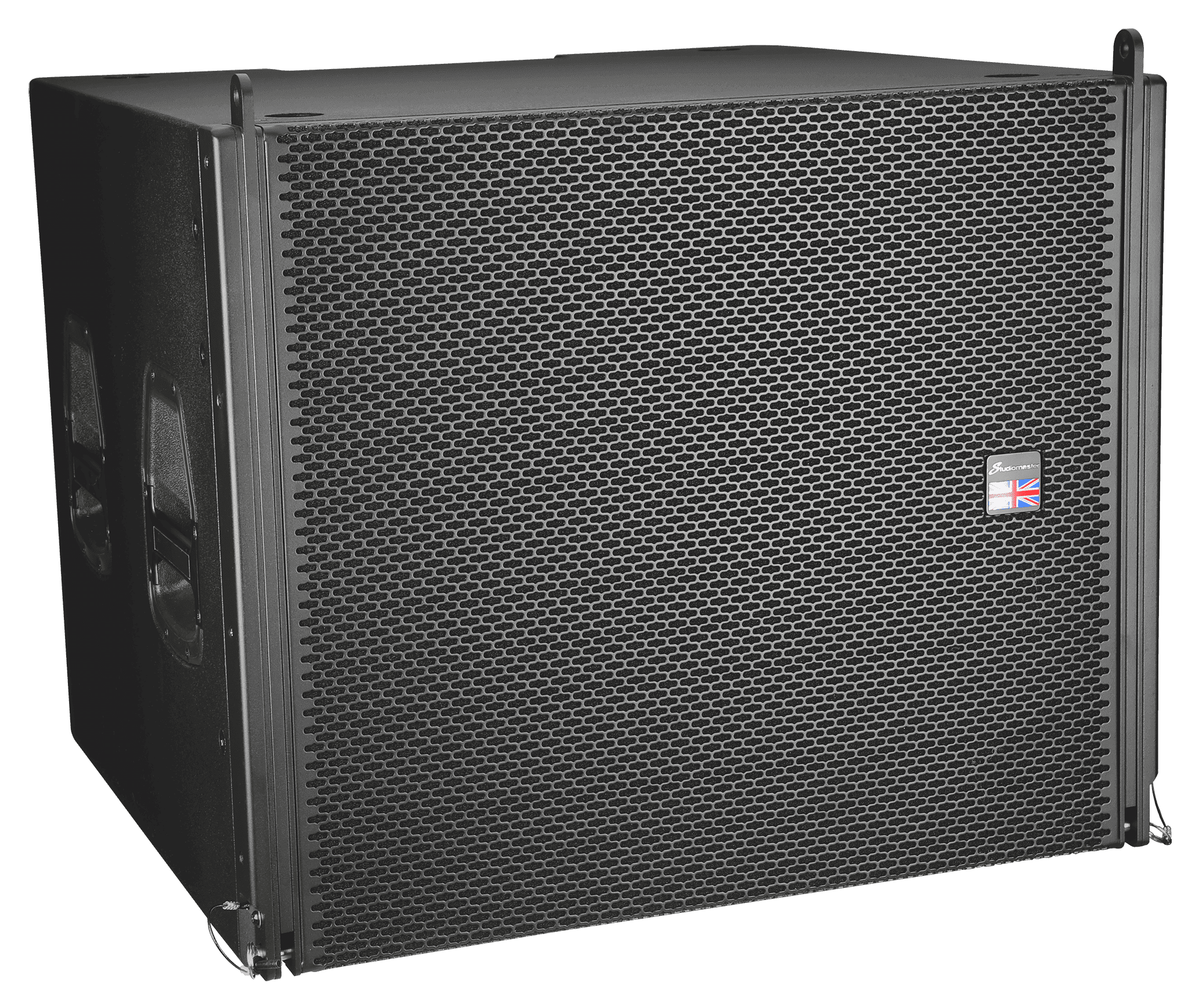

V310S
Line Array System
V310S
Key Features
Long excursion 1 x 18-inch LF driver with 4-inch / 100mm voice coil
High performance 135dB SPL

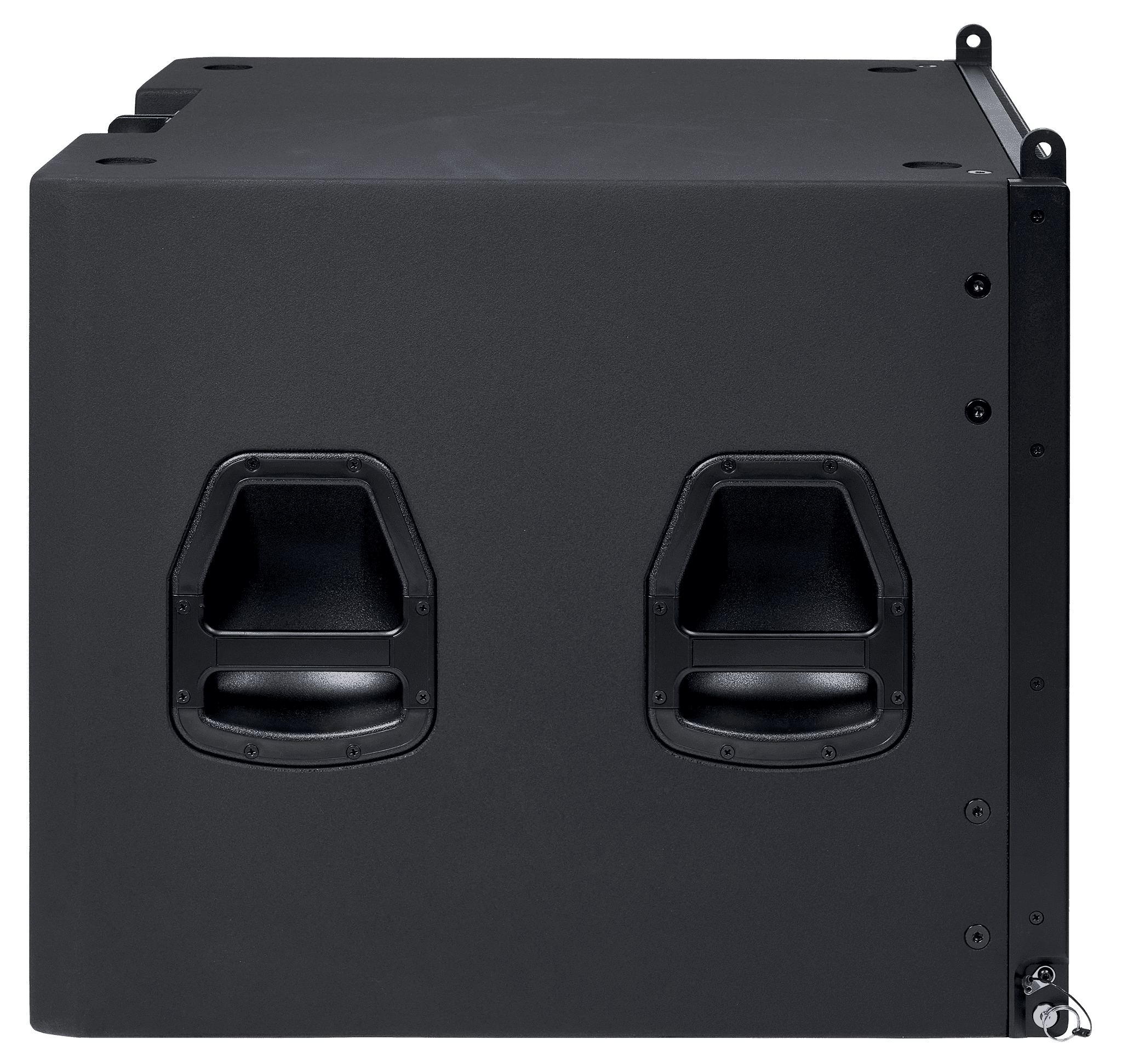

Dual scoop handles on each side
Adjustable suspension system available
Overview
Getting a big sound from a sound system is often left to large 2-way 10-inch line array systems, however, these are heavy, large and often difficult to set-up in smaller venues.
The V310 system with a specially designed 3-way configuration gives you SPL levels up to 142dB from a compact only 706mm wide, lightweight and powerful enclosure.

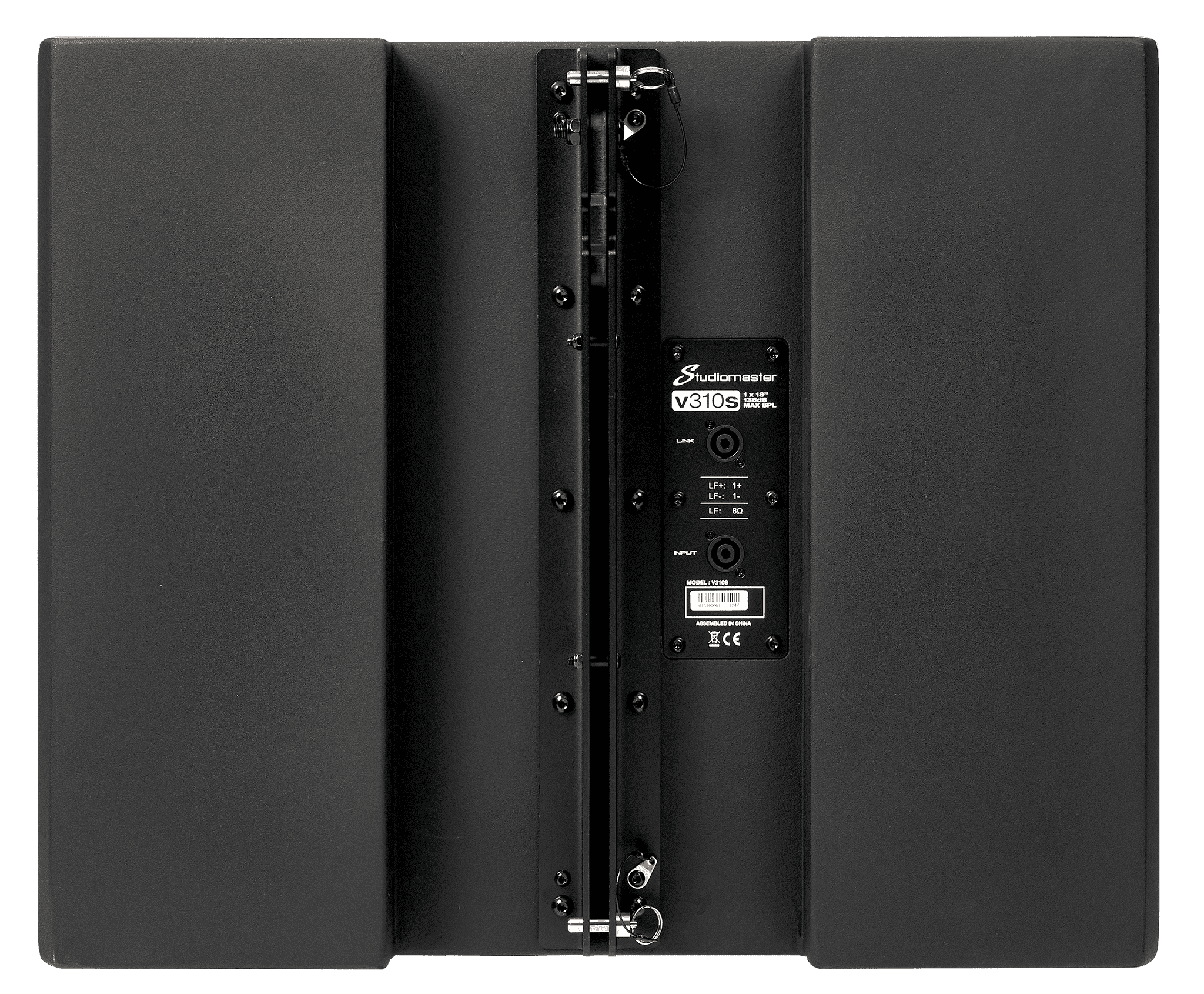

With the HF and MF with an internal crossover, the connection to the cabinet is still the same as a regular cabinet with LF & HF/MF inputs both at 16 ohm, so up to 4 enclosures can be connected in parallel to one amp/processor setup.
To compliment the V310 top cabinets, the V310S offers stunning performance from a compact cabinet, giving up to 135dB SPL from a single 18-inch phase inverted long travel driver. Double handles on each side make moving the cabinets safe and simple.
Specification
V310S
| MAX SPL¹ | 135dB |
| PEAK² | 4000W |
| PGM | 2000W |
| RMS | 1000W |
| WEIGHT | 52kg |
| Cabinet type | passive line array woofer |
| Frequency response | 35Hz-180Hz (-10dB) |
| Coverage (H × V) | - |
| Sensitivity (1W@1m) | 99dB |
| Crossover frequency | - |
| LF Driver | 1 × 18" ferrite / 100mm VC |
| MF Driver | - |
| HF Driver | - |
| Impedance | 8 ohm |
| Vertical spread angle | - |
| Dimensions (W × H × D) | 706 × 580 × 680mm |
