V310
Line Array System
V310
Key Features
2 x 10″ LF drivers with 3″ / 75mm voice coils
1 x 8″ MF and 2 x 3″ compression drivers for HF
Birch plywood enclosure
Deep scoop handles
Up to 142dB SPL
90 x 10 degree coverage angle
Overview
Getting a big sound from a sound system is often left to large 2-way 10-inch line array systems, however, these are heavy, large and often difficult to set-up in smaller venues.
The V310 system with a specially designed 3-way configuration gives you SPL levels up to 142dB from a compact only 706mm wide, lightweight and powerful enclosure.

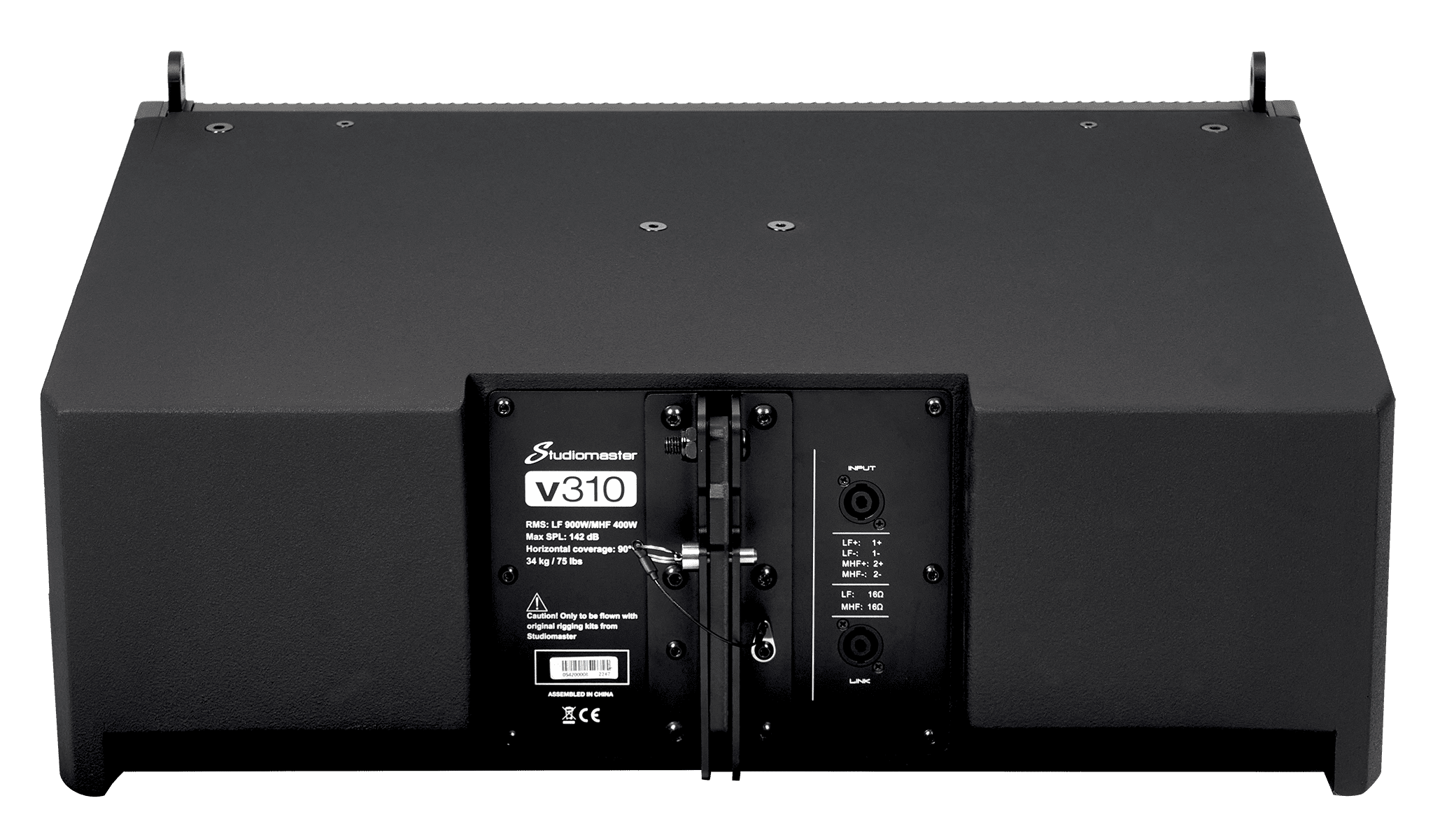

With the HF and MF with an internal crossover, the connection to the cabinet is still the same as a regular cabinet with LF & HF/MF inputs both at 16 ohm, so up to 4 enclosures can be connected in parallel to one amp/processor setup.

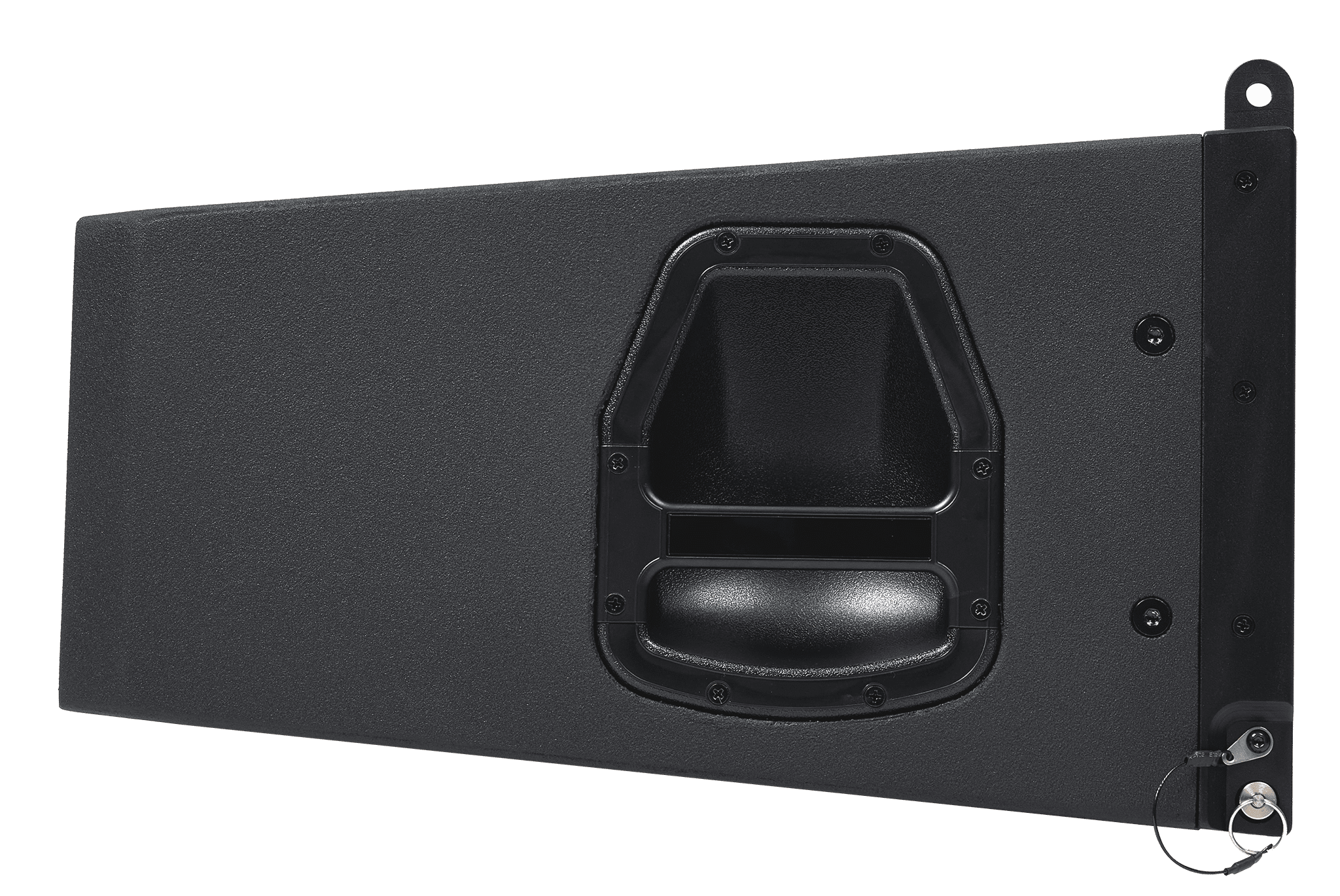

To compliment the V310 top cabinets, the V310S offers stunning performance from a compact cabinet, giving up to 135dB SPL from a single 18-inch phase inverted long travel driver. Double handles on each side make moving the cabinets safe and simple.
Specification
V310
| MAX SPL¹ | LF 135dB / MHF 142dB |
| PEAK² | LF 3600W / MHF 1600W |
| PGM | LF 1800W / MHF 800W |
| RMS | LF 900W / MHF 400W |
| WEIGHT | 34kg |
| Cabinet type | 3-way passive line array |
| Frequency response | 50Hz - 20kHz (-10dB) |
| Coverage (H × V) | 90 × 10 degree |
| Sensitivity (1W@1m) | LF: 99dB / MHF: 110dB |
| Crossover frequency | 250 Hz |
| LF Driver | 2 × 10" neodymium / 75mm VC |
| MF Driver | 1 × 8" neodymium / 50mm VC |
| HF Driver | 2 × 3" neodymium compression driver |
| Impedance | LF: 16 ohm / MHF: 16 ohm |
| Vertical spread angle | 0-10 degree (1 degree step) |
| Dimensions (W × H × D) | 706 × 304 × 526mm |
