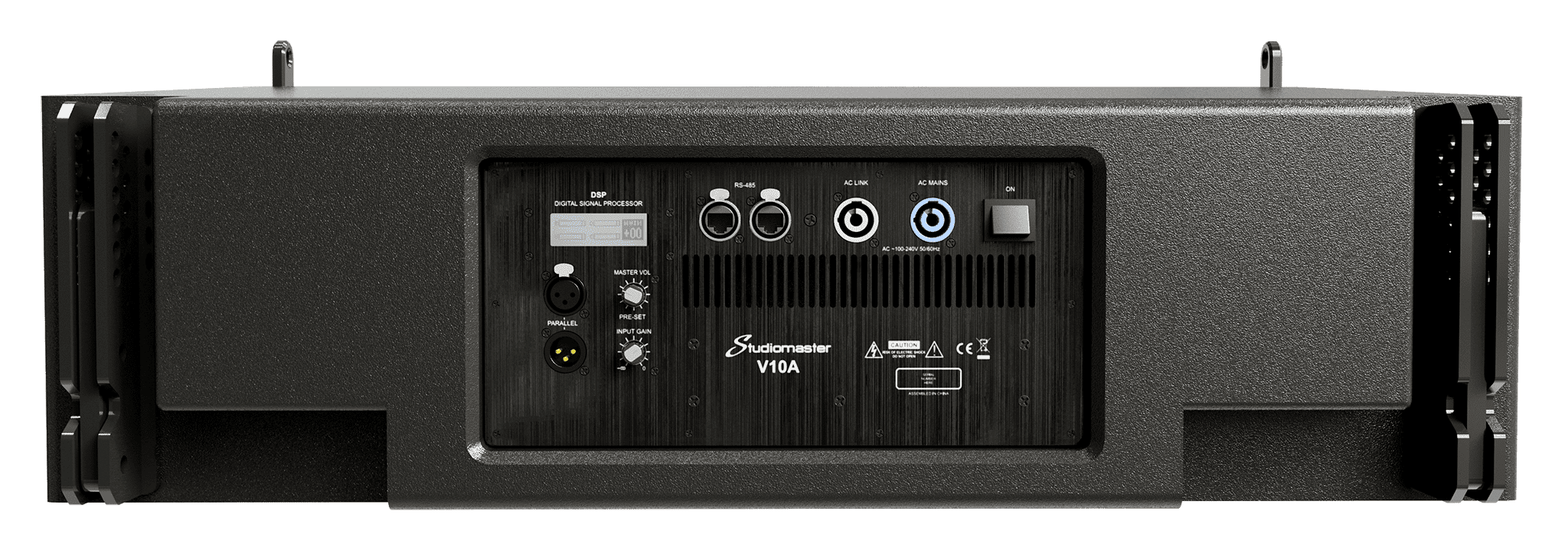

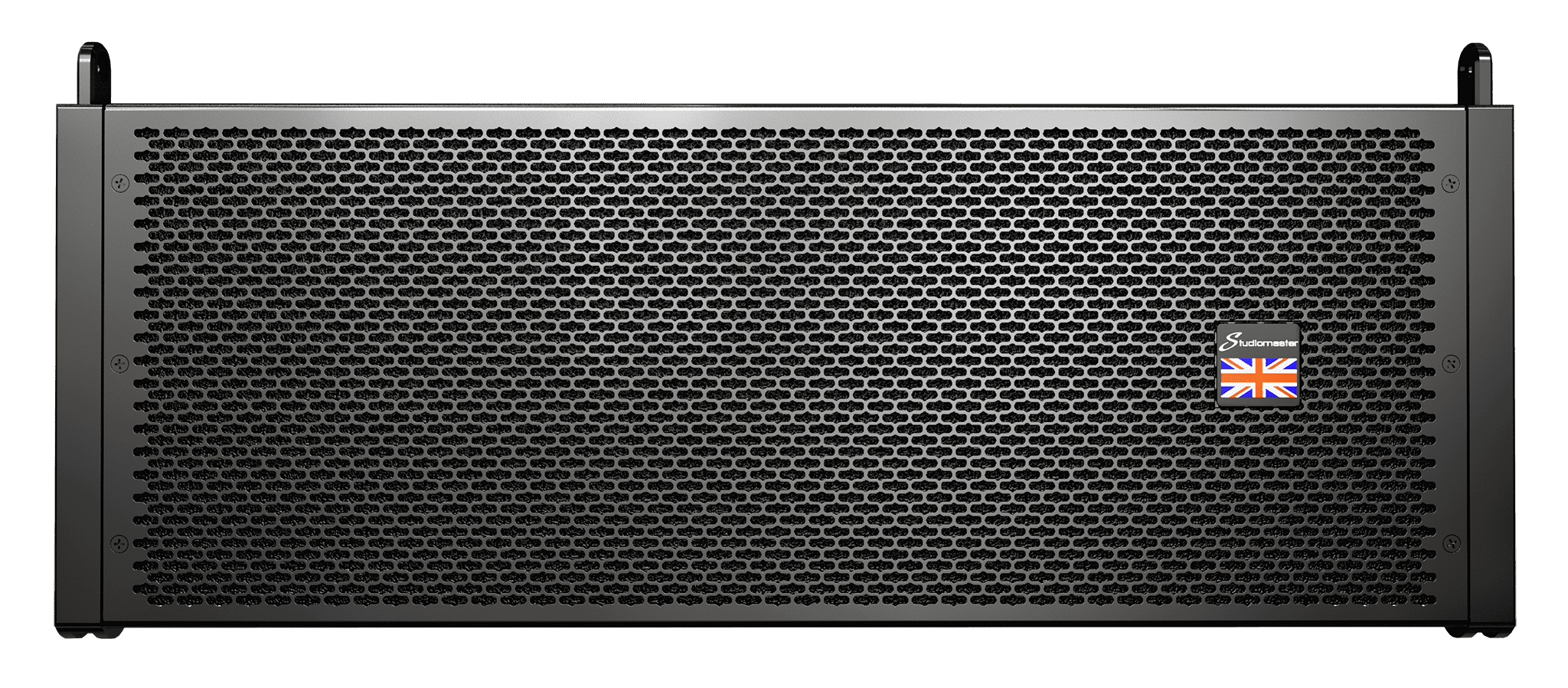

V10A
Line Array System

V10A
Key Features
Superior quality 2 x 10″ MF drivers
44mm compression driver on V10, 34mm on V10A
High SPL for maximum reach
Fully adjustable suspension rack available
Overview
The new V10 compact line array system, comprising 2 x 10″ Mid/Tops, 2 x 15″ Low mids to form your array, and
2 x 18″ Sub bass cabinets to complete the system, and is available in both active and passive variants.
The V10 system, features very high SPL levels, with peak SPL in excess of 138dB on the passive sub cabinets.
The V10 active models feature not only high power lightweight CLASS D amplifier modules along with durable
power supply units, but also each cabinet is equiped with a comprehensive 56bit 96kHz DSP, featuring gain,
crossover, phase, delay, unique limiting, and three useful default program settings.
Components used are high performance, to ensure long life and be able to continually provide the professional
power levels required for a system of this calibre. With titanium and neodymium components, and the 18mm
birch plywood cabinet, the result lets these cabinets stand out of the competition

Specification
V10A
MAX SPL¹ | 136dB |
POWER² | LF 1000W / HF 150W |
WEIGHT | 34kg |
Cabinet type | 2-way active line array |
Frequency response | 60Hz - 22kHz (-10dB) / 70Hz - 18kHz (+/-3dB) |
Input sensitivity | 0dBu |
Coverage (H × V) | 120 × 10 degree |
MF/LF Driver | 2 × 10" |
HF Driver | 2 × 1.34" / 34mm VC |
Vertical spread angle | 0-10 degree (1 degree step) |
Dimensions (W × H × D) | 810 × 290 × 490mm |
