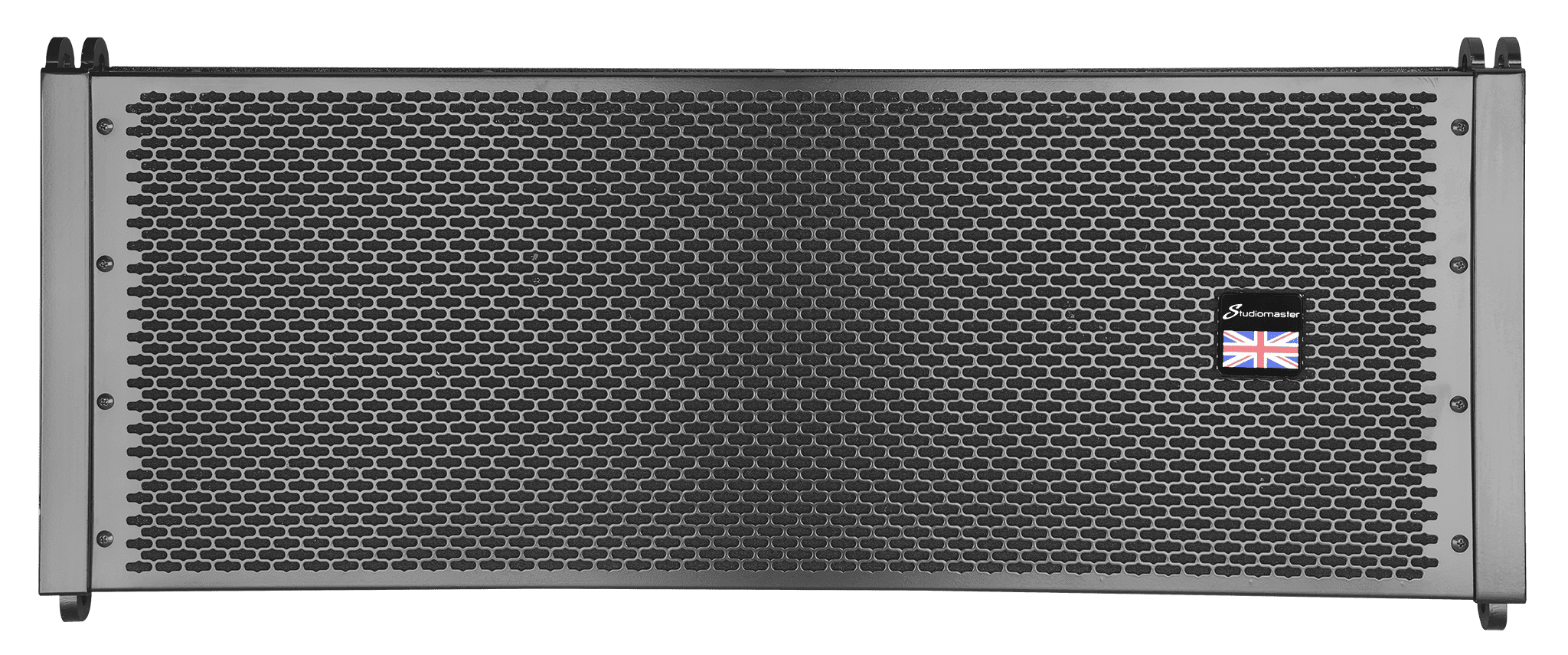

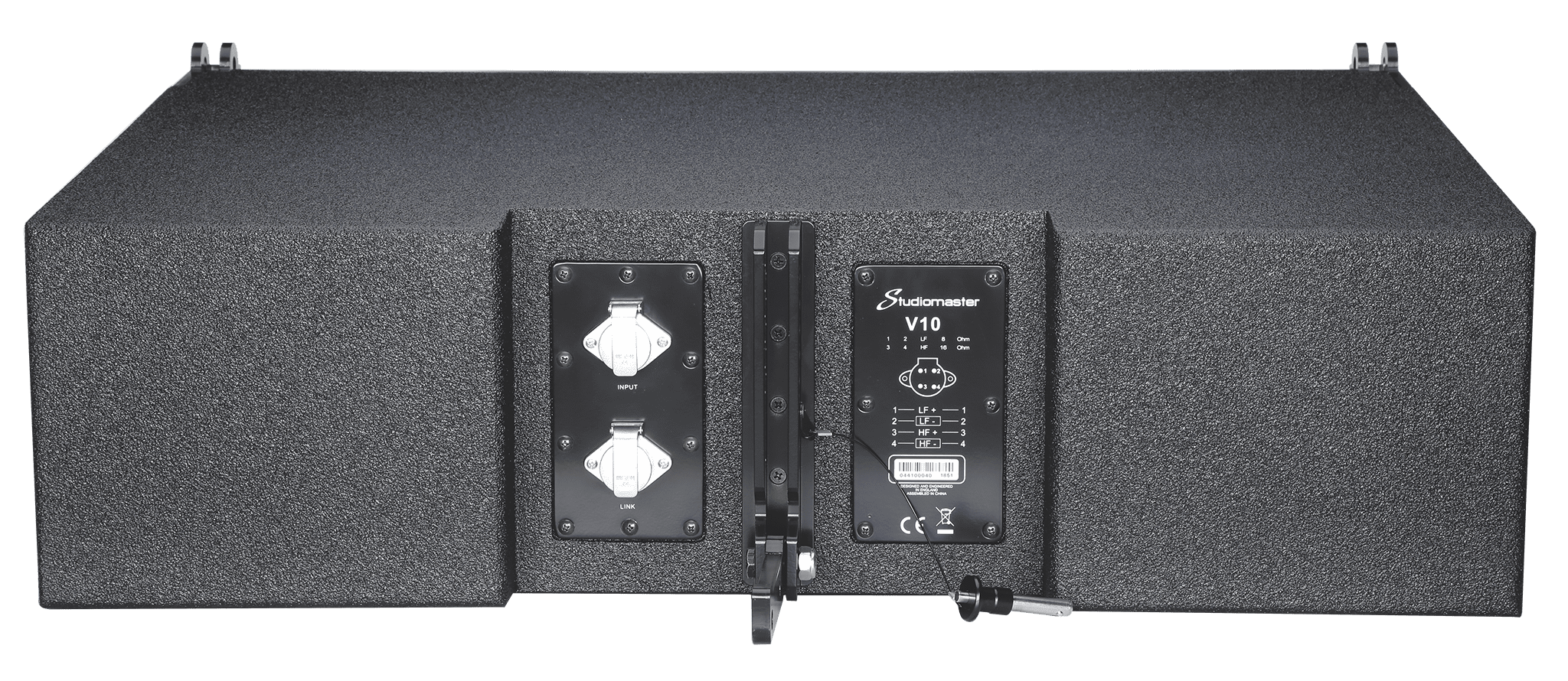

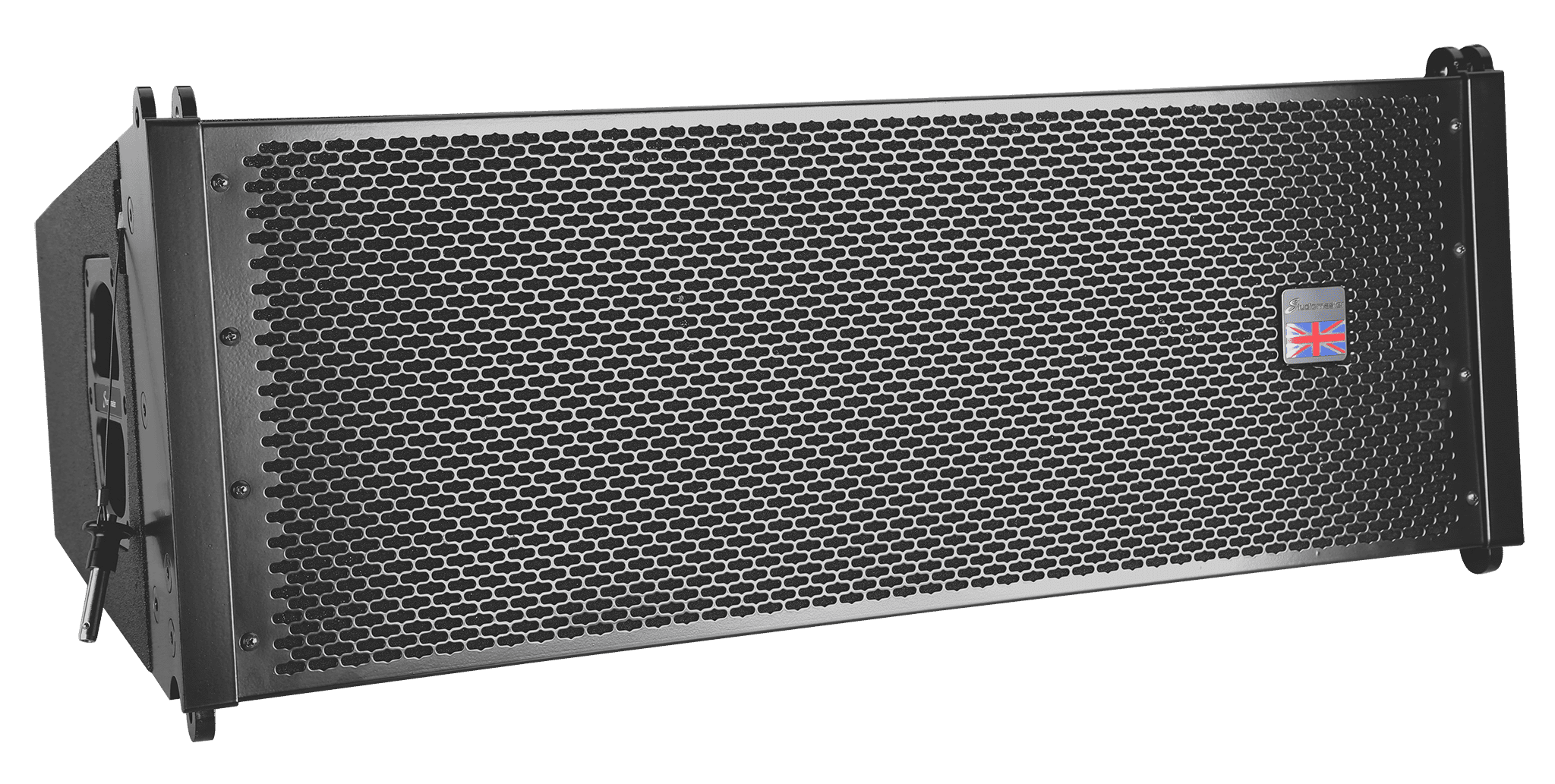

V10
Line Array System

V10
Key Features
Superior quality 2 x 10″ woofers
44mm compression tweeters
High SPL for maximum reach
Fully adjustable flying frame available
Overview
The V10 compact line array system, comprising 2×10″ Mid/Tops and 2×15″ Low mids to form your array, complimented by 2×18″ Sub bass cabinets to complete the system. Available in both active and passive variants. The V10 systems are weatherproof and feature very high SPL levels, with peak SPL in excess of 138dB.
Compact design with a high performance versus cost ratio, high SPL, superb intelligibility, low distortion and a flexible configuration. Two way linear sound dispersion technique to provide clear rich sounds. Low/medium frequency driver with ultra low distortion to give high performance with a wide dynamic range. Custom high quality titanium and neodymium HF compression driver. Super Hi-Fi sound from the flat phase response Birch plywood cabinet coupled with CNC routed slotted structure to give a great sound and extreme strength and rigidity.
The V10 active models feature not only high power lightweight CLASS D amplifier modules along with durable power supply units, but also each cabinet is equiped with a comprehensive 56bit 96kHz DSP, featuring gain, crossover, phase, delay, unique limiting, and three useful default program settings.
The V10 system utilises our highest performance components, to ensure longevity and be able to continually provide the professional power levels required for a system of this calibre. With titanium and neodymium components, and an 18mm birch plywood cabinet, hard wearing water based surface treatment, to give a long lasting weatherproof finish and an Intelligent fast fixing suspension system.

Specification
V10
MAX SPL¹ | 137dB |
PEAK² | MF 2800W / HF 320W |
PGM | MF 1400W / HF 160W |
RMS | MF 700W / HF 80W |
WEIGHT | 28kg |
Cabinet type | 2-way passive line array |
Frequency response | 70Hz - 20kHz |
Sensitivity 1W@1m | MF 102dB / HF 110dB |
Coverage (H × V) | 120 x 10 degree |
MF/LF Driver | 2 × 10" NdFeB |
HF Driver | 2 × 1.75" / 44mm VC NdFeB |
Impedance | MF 8 ohm / HF 16 ohm |
Crossover frequency | - |
Vertical spread angle | 0-10 degree (1 degree step) |
Dimensions (W × H × D) | 810 × 290 × 490mm |
