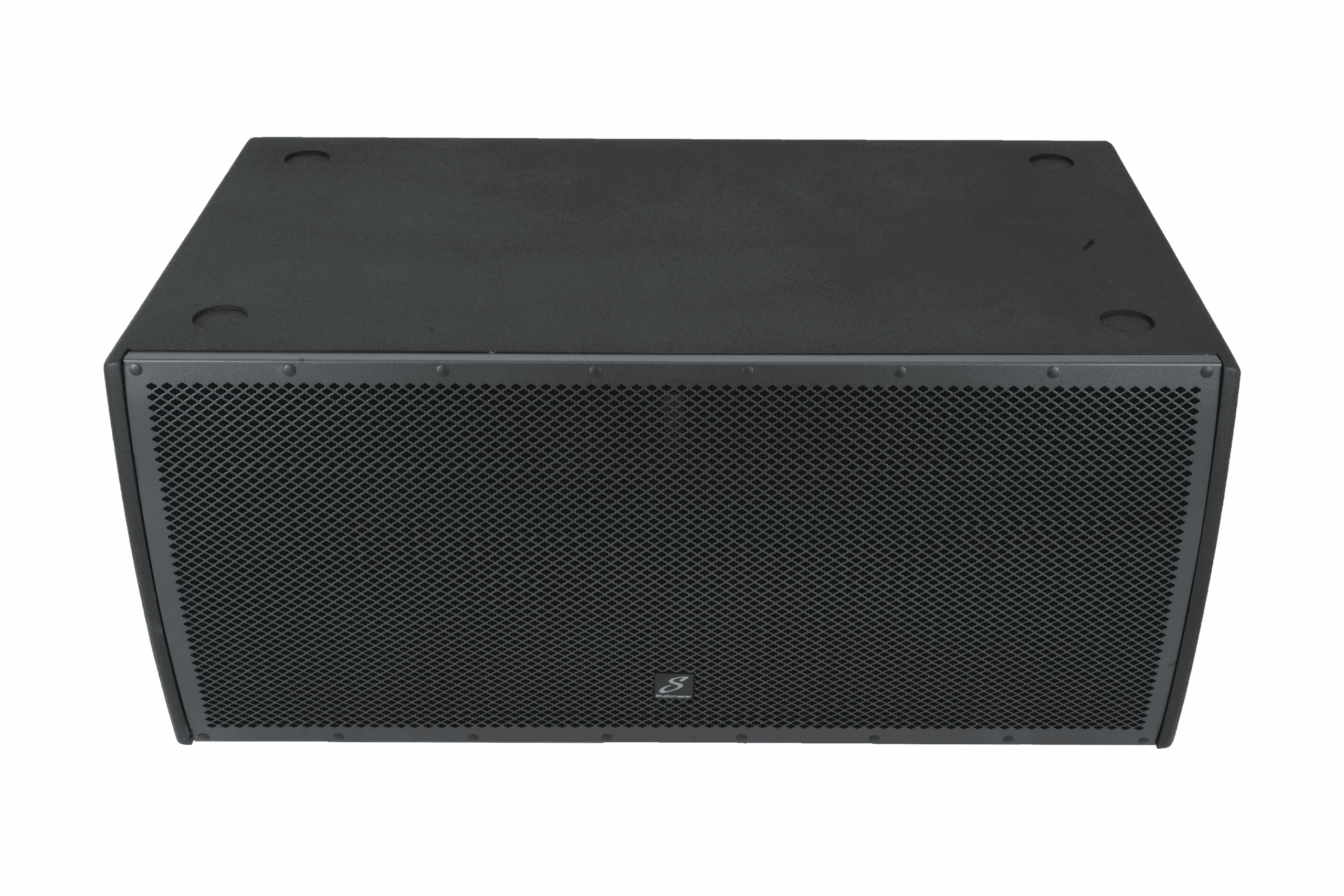

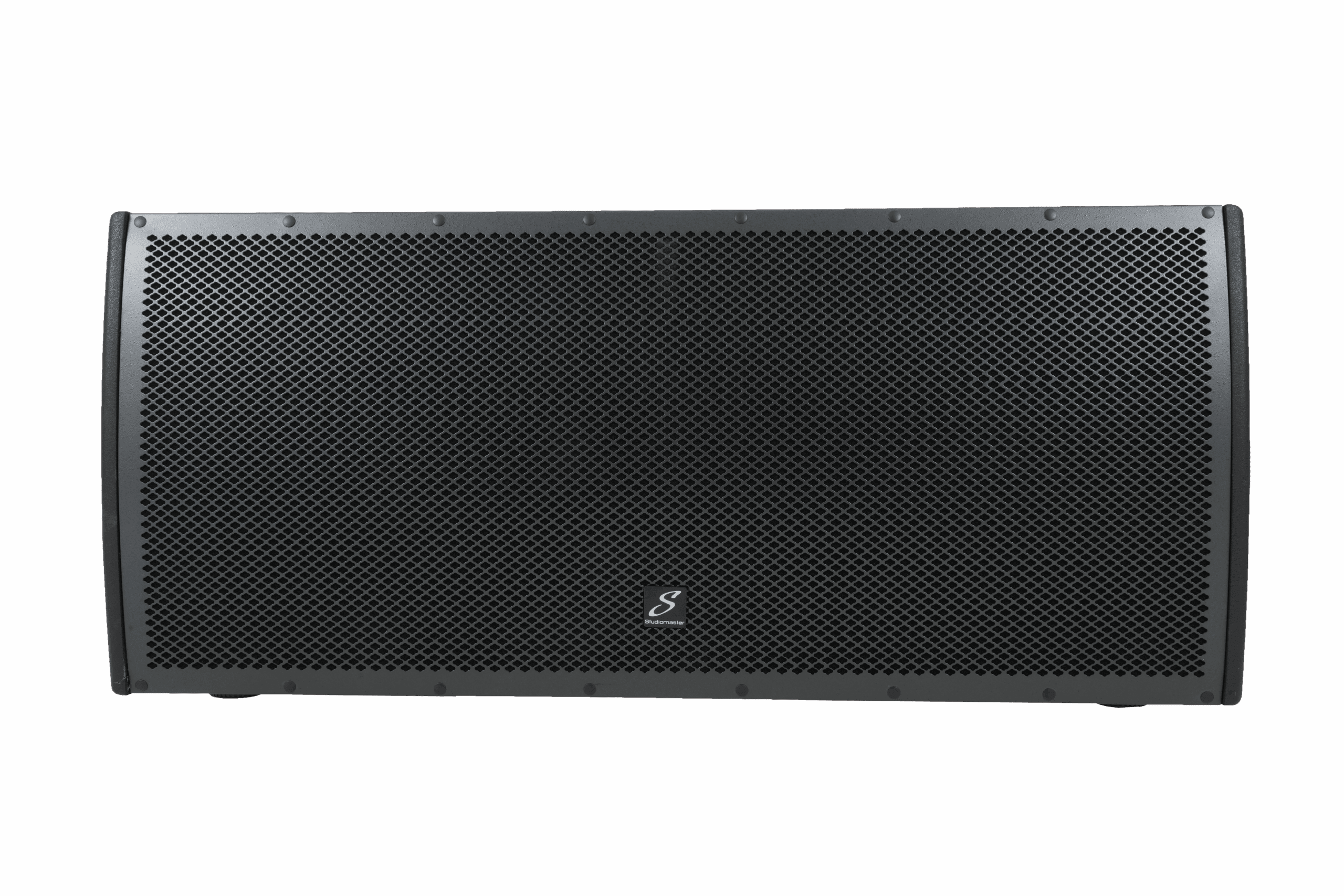

TRX218S
Line Array Sub

TRX218S
Key Features
8 models with 2 and 4 channel versions
XLR balance XLR inputs
example 1
example 2 ….. e.t.c
Overview
TRX218S is designed for V5, V6, V8 system
It is a subwoofer that brings surging and powerful bass to the system.
While it is added for more low end, the TRX218S is the main woofer and the V8S becomes the subwoofer, greatly enhancing the system sound reinforcement effect.
Gallery
Specification
TRX218S
MAX SPL¹ | 137dB |
PEAK² | 4800W |
PGM | 2400W |
RMS | 1200W |
WEIGHT | 84kg |
Cabinet type | passive line array subwoofer |
Frequency response | 33Hz - 150Hz |
Sensitivity 1W@1m | 100dB +/-3dB |
LF Driver | 2 × 18" / 4" VC |
Impedance | 4 ohm |
Crossover frequency | - |
Dimensions (W × H × D) | 1200 × 520 × 700mm |
