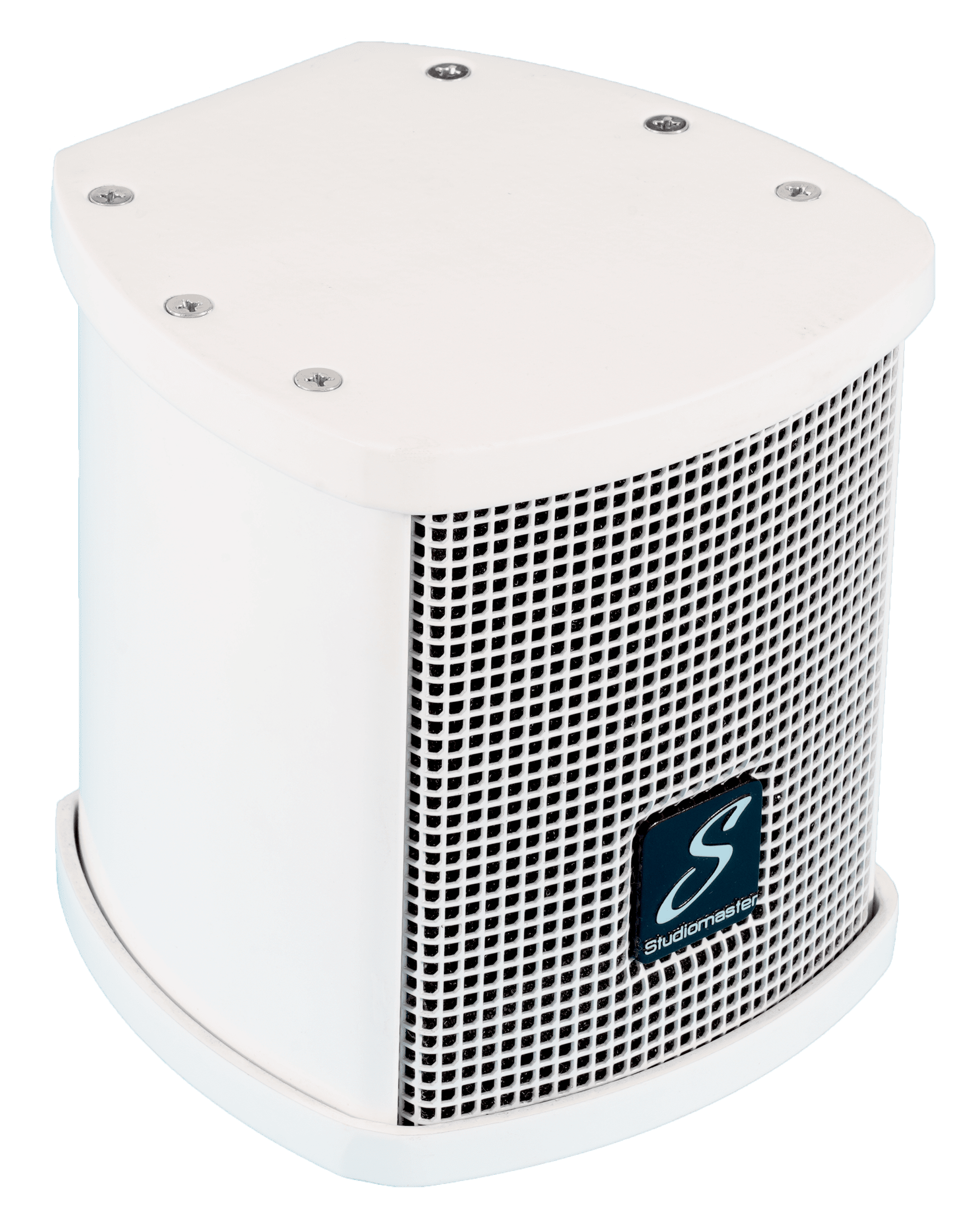

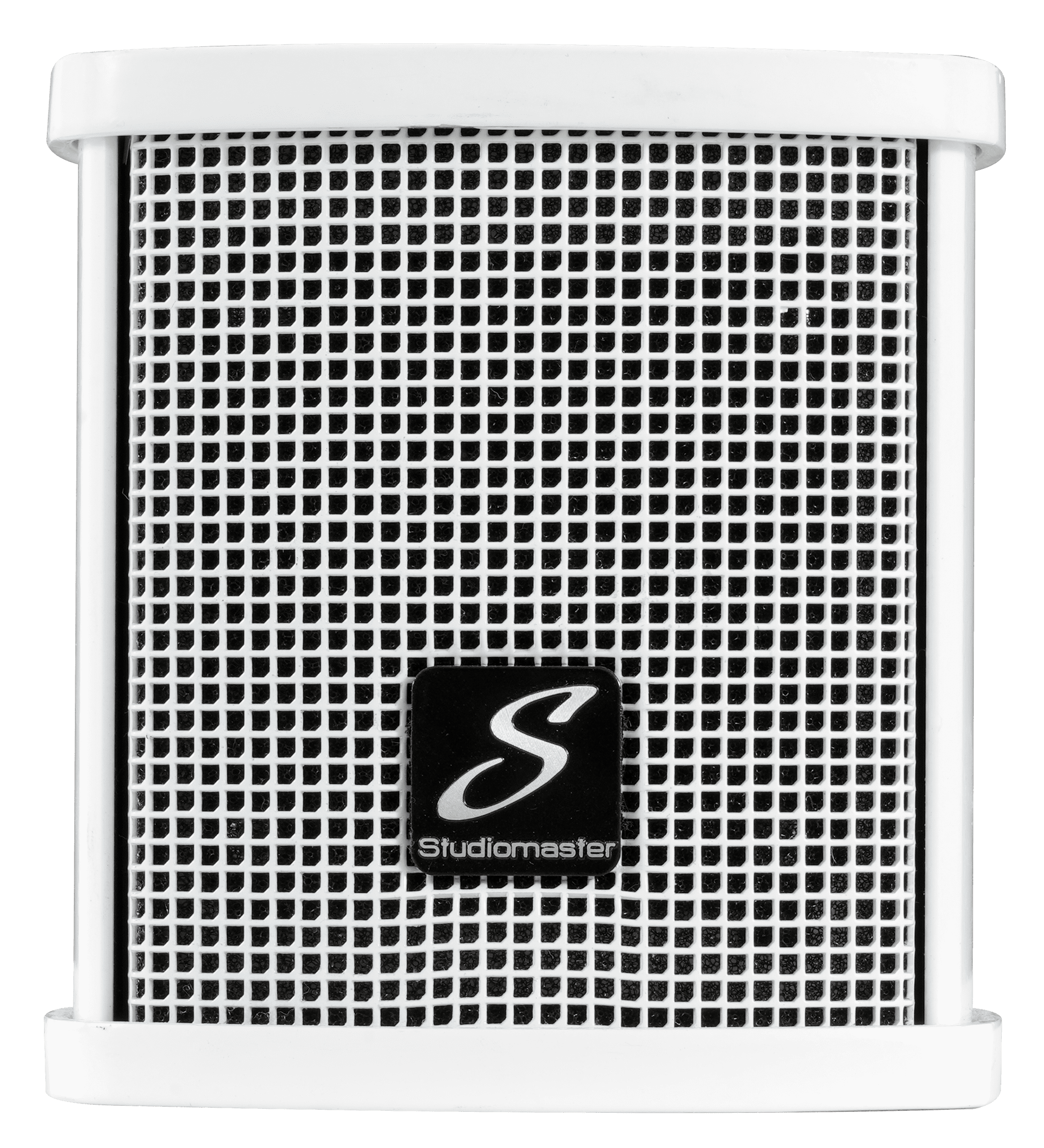

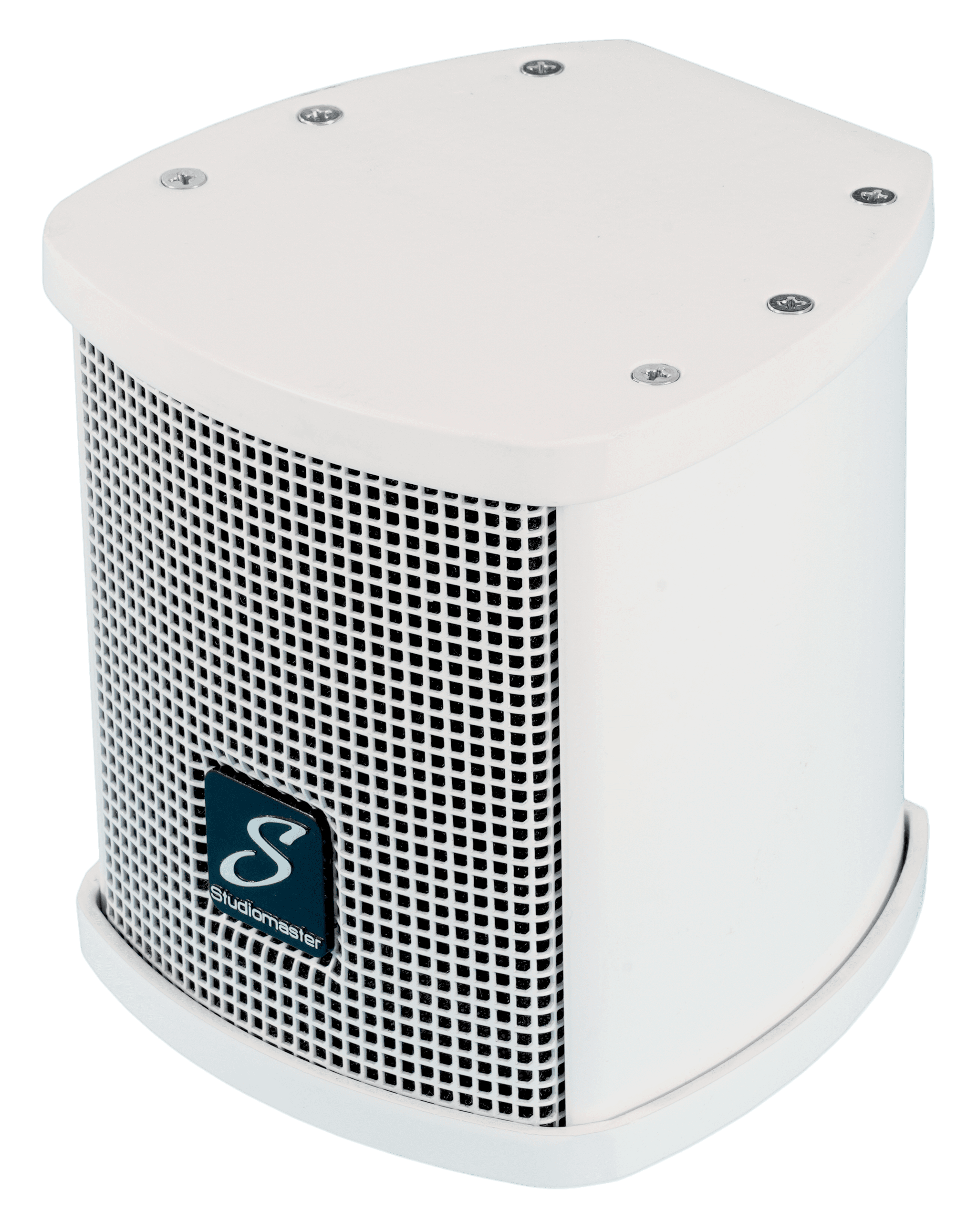

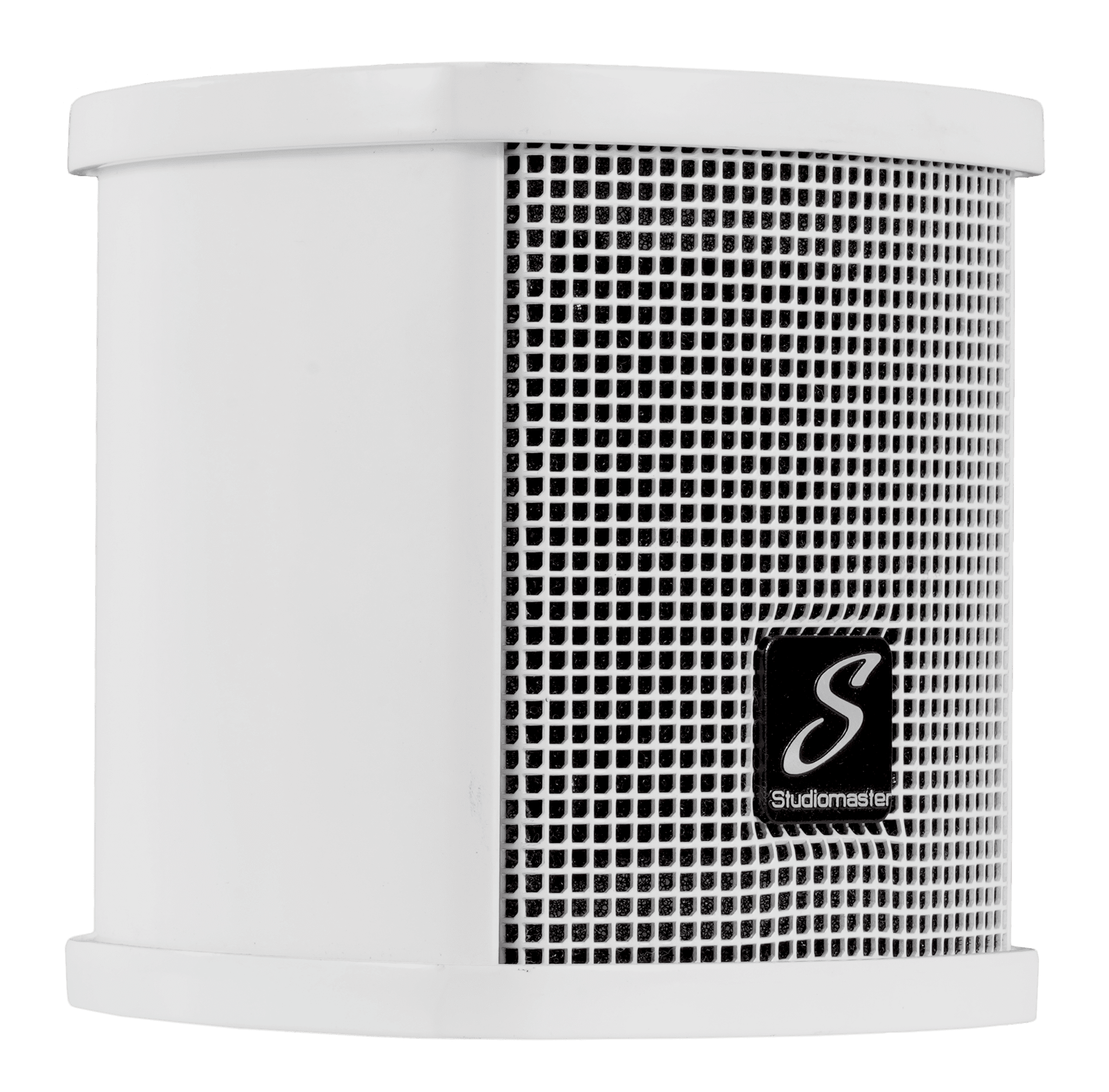

Area 31
Installation Speaker

Area 31
Key Features
ALUMINIUM ALLOY CASING
ADJUSTABLE WALL BRACKET INCLUDED
3″ NEODYMIUM FULL RANGE DRIVERS
70/100V LINE OR 8 OHM MODELS
TOUGH METAL GRILLE
Overview
AREA series all-weather column speakers use high quality 3″ neodymium magnet full-range drivers arranged in a compact form to produce a wide frequency response, high definition, wide horizontal coverage and long radiation distance.
High SPL can be achieved from the small format, reducing weight and improvnig aesthetics. Perfect for use indoors or outdoors in public aresas,shopping malls, exhibition halls, conference rooms, houses of worship and anywhere the sound quality of speech and background music is required.

Specification
AREA31
Type | 1×3" |
Frequency response (-10dB) | 130Hz - 20kHz |
Rated Power | 30W(continue) 120W(peak) |
Nominal Impedance | 8 ohm |
Max SPL (@1m) | 108dB (peak) |
Coverage (H × V) | 100°×100° |
Transducer | Φ20mm voice coil/ 30W/8 ohm |
Sensitivity (1m@1W) | 87dB |
Audio Transformer Power | 20W/10W/5W |

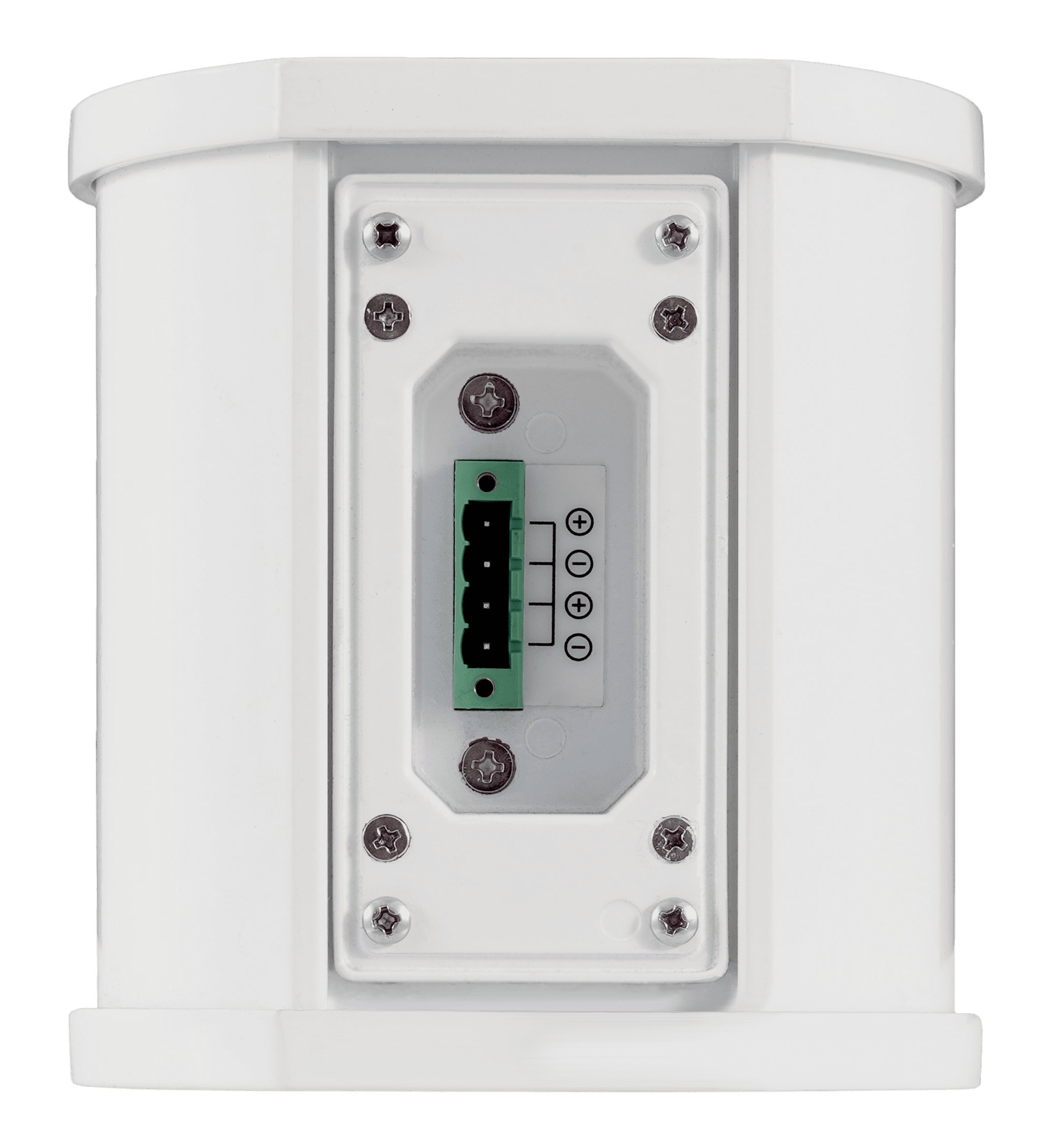

Connectors | 1×PHOENIX (4P) |
Dimensions (W×H×D) | 118×122×121mm |
Net weight | 1.1kg |
