XLIM Series

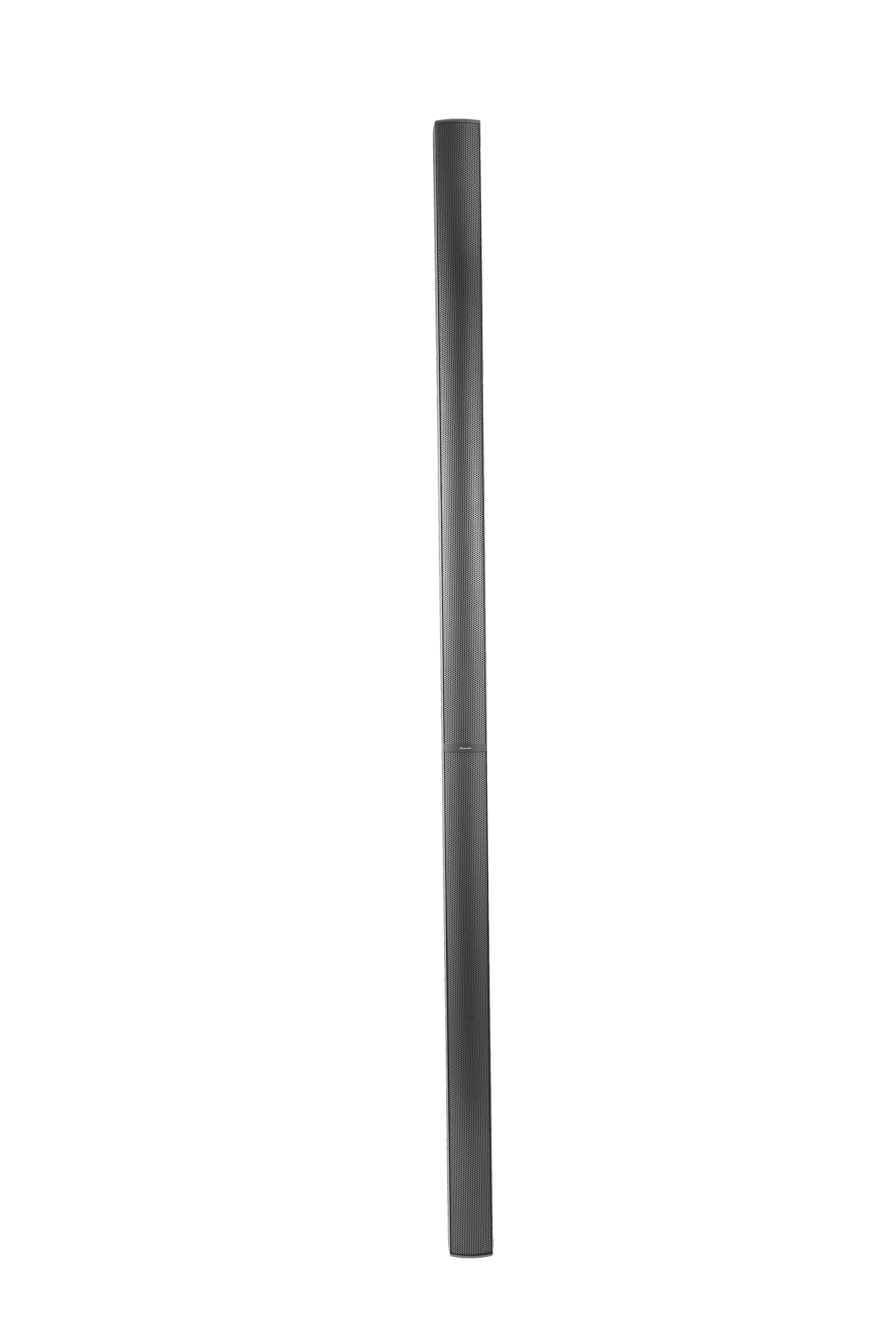

XLIM163
XLIM163
Key Features
Overview
Active 2-way column speaker
The new XLlM series active speaker developed by Studiomaster has built-in professional
digital DSP, power amplifier and other technologies, replacing the traditional speaker
connected with avarietyof complex devices.
Performance parameters have been set to various modes based on real scenarios, and users only need a simple power cord to work properly.
This XLlM active (DSP) speaker is tailored for LED displays and provides the best solution for all LED screens.
This product is suitable for large,medium and smallrooms, churches,classrooms, stations.
exhibition halls and other occasions, especially ideal for all LED displays with quality sound of deeper bass and fine-grained inteligiollity
Active speaker shipped with built-in DSP module.
Supports automatic matching of audio parameters under presets Clear woice, large dynamic range.
SMPS With high power, low distortion and excellent sound quality.
Light weight, stable performance, 100V-240V wide power input.
Gallery
Specification
XLIM135/XLIM136
| Model | XLIM135/XLIM163 |
| Frequency range(-10dB) | 65Hz-20kHz |
| Power | 240W (RMS)/960W(Peak) |
| Amp power | 640W/8ohm |
| Max SPL(@1m) | 121dB(peak) |
| Input voltage | 100-240V |
| Coverage (H x V) | 120°x 30° |
| LF unit | 6x3 Nd magnet full-range/φ25mm vc/ 30W/ 8 ohm |
| HF unit | 1x1”HF compression driver/φ25mm vc/ 10W/ 8 ohm |
| Connection | / |
| Dimension (W x H x D) | 118*1835*128mm/118*2172*128mm |
| Net weight | 12.8kg |
