Direct 101MX
Column Speaker

Direct 101MX
Key Features
Self-powered 3-way system for high definition sound
120° x 30° ultra wide sound coverage (H x V)
Extensive 4-channel mixer
10″ BASS REFLEX SUB
Overview
The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3″ mid frequency transducers for perfect clarity of instruments and sound. The 1″ high precision driver delivers dynamic and clear highs.

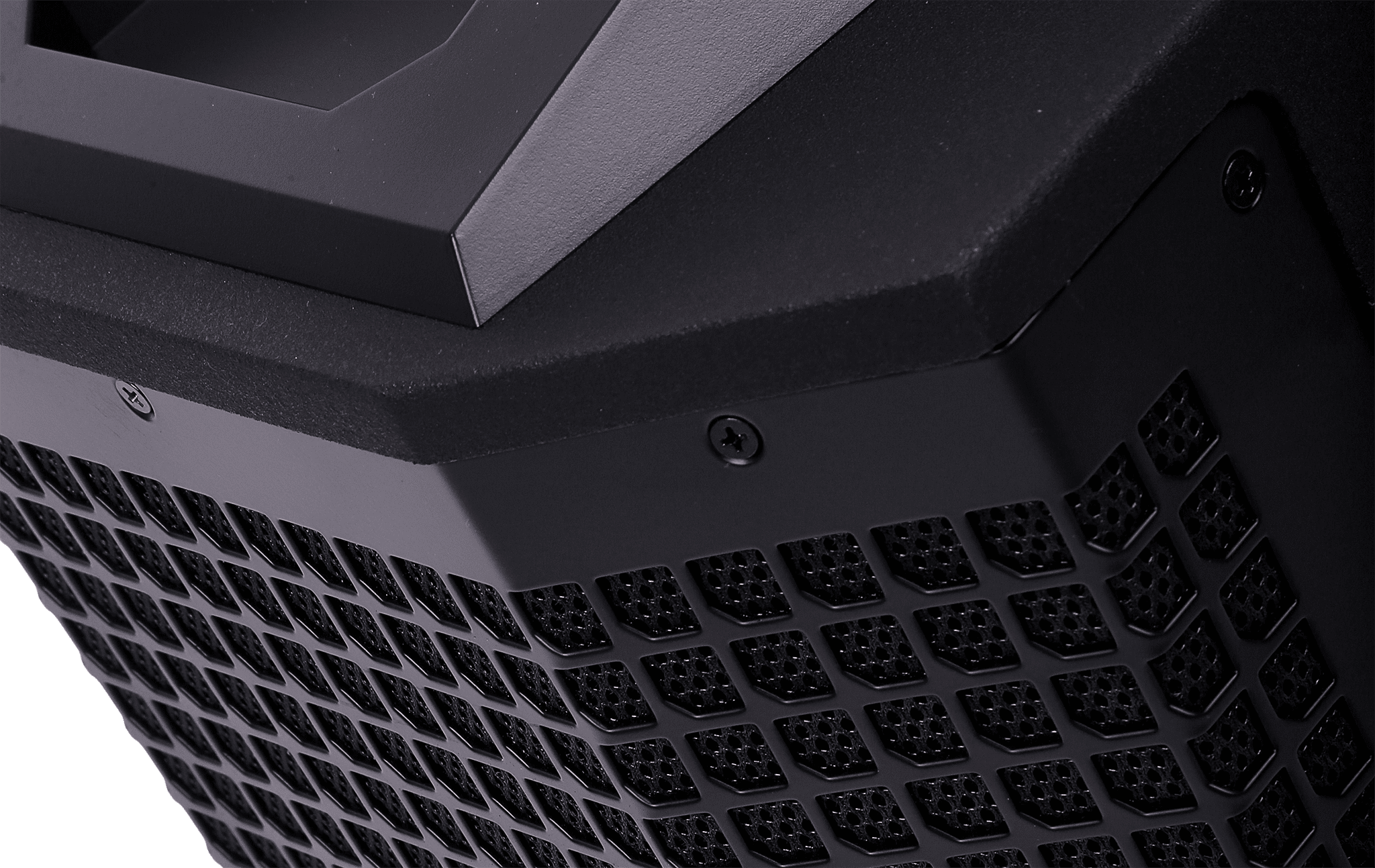

The subwoofer is featured by one professional 10″ or 12″ transducer for well-defined lows.

The on-board 4-channel mixer enables for a wide range of applications. Connecting
microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it’s graphic display upgrades your sound to high
definition audio quality.
To extend the applications of this user-acclaimed original, one of its variant, DIRECT MX is upgraded with wooden sub enclosure and adjustbale reverb effects. But this is not the end where we find all-in-one concept is fully carried out, so the second varint of DIRECT complements the products family by designing double wireless microphones into the very sophisticated panel in DIRECT MW.

Specification
AMPLIFIER | ||
Rated Power | 2 × 300W RMS | |
Freuency range | 20Hz-20kHz | |
DSP connection | 24bit(1in-2out) | |
SUB | ||
Speaker type | 1×10" transducer | |
Rated Power | 250W(RMS) | |
Rated Impedance | 4 ohm | |
Dimension (W × H × D) | 358 x 616 x 447mm | |
Net Weight | 21kg | |
VERTICAL ARRAY SPEAKER | ||
MF | 6 x 3" mid-range speaker | |
HF | 1 x 1" compression driver | |
Coverage(H x V) | 120° x 30° | |
Rated Power | 180W(RMS) | |
Rated Impedance | 6 ohm | |
Dimension (W × H × D) | 108 x 835x 98mm | |
MIXER | ||
Inputs | 4 channels(2 x Mic/Line, 1 x RCA, 1 x Hi-Z) | |
Input connectors | 1-2#: XLR/6.35mm jack combo | |
3#: 6.35mm jack unbalanced TRS | ||
4#: 1 x RCA jack(stereo) | ||
Input impedance | 1-2# MIC: 10k ohm balanced | |
1-2# LINE: 10k ohm balanced | ||
3#: 470k ohm unbalanced | ||
4#: 10k ohm unbalanced | ||
Output connector | 1-2#: Line Link: XLR 3#: Mixout: XLR |
