CORE 181
Active portable array system

Core 181
Key Features
Built-in powerful 24bit DSP
2-channel 800W+800W”CLASS-D” amplifier
Wide power supply design
Supports a pair of CORE122/CORE181 TWS bluetooth wireless connections Establish a sterec;ound state.
DSP setting for ultra-long delay time
Horn HF design, ultra-wide angle coverage
Subwoofer cabinet with added castor design
Pneumatic lifting rod
Overview

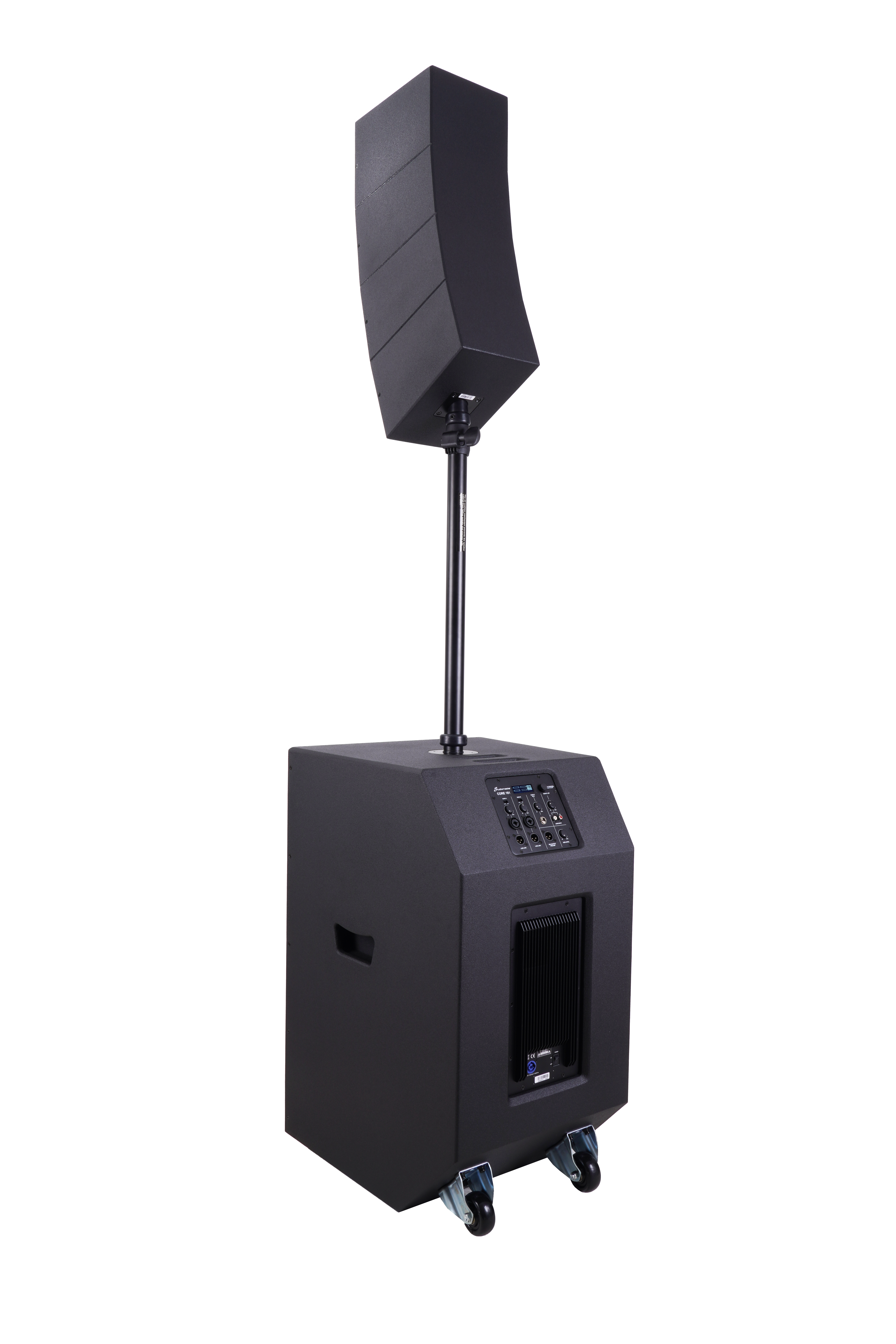

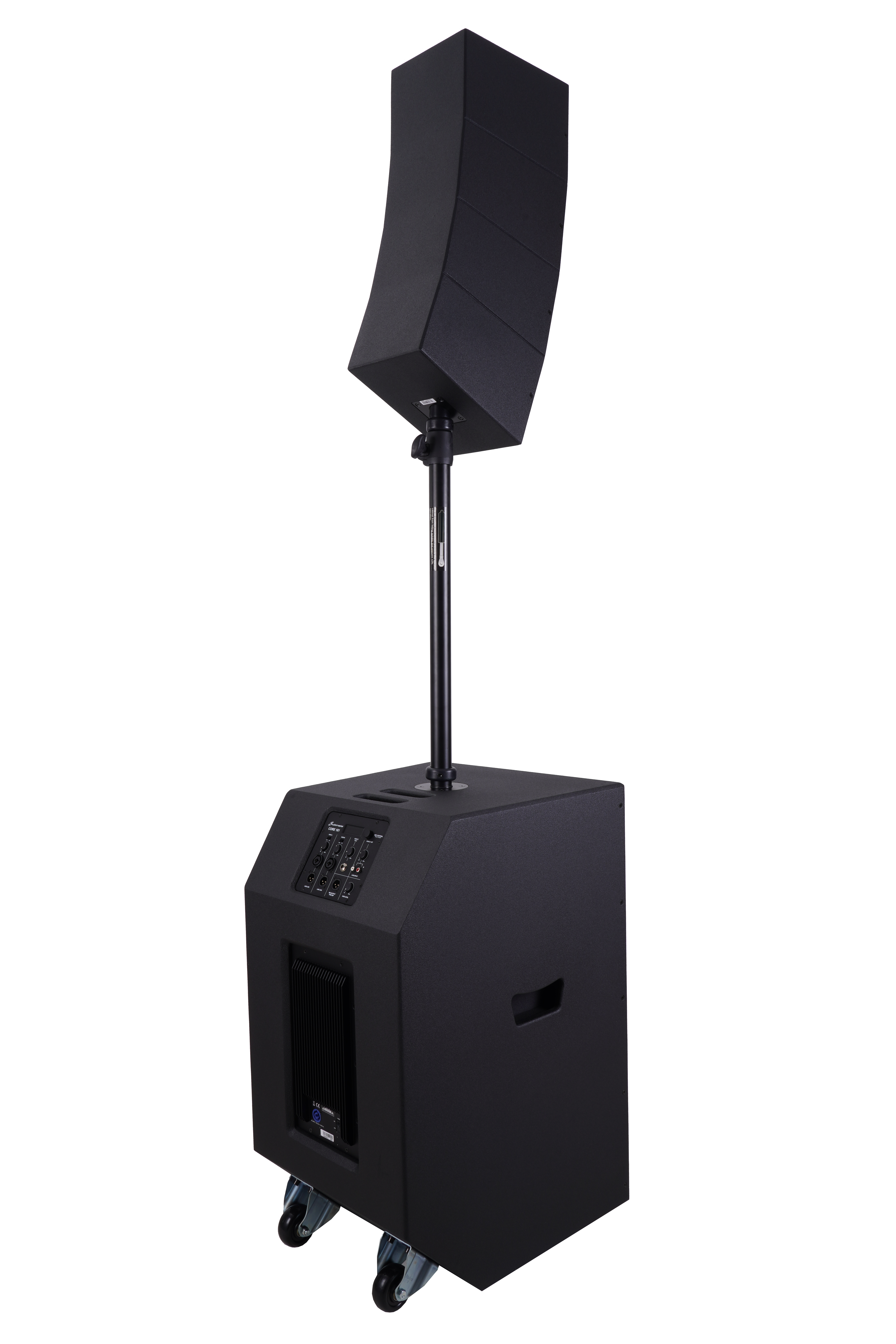

one 4×5″ neodymium passive line array full-range loudspeaker
+ one 18″ active subwoofer with a mixing console featuring foui
inputs and a dual-channel power amplifier
+ one 6.35 two-pin plug with an internal wiring adapter bracket
*Available in all territories except Europe and North America

Passive array full-range loudspeaker section
Composed of 4 5″ mid-low frequency woofers + 16 1″ dome tweeters; cabinet
features a curved array design, providing wider vertical coverage; horn-loaded
tweeter design, offering strong penetration and resolution.
Active subwoofer section 12′ & 18′
Phase-inverted cabinet design, featuring a built-in 2-channel power amplifier
with 800W+800W, an embedded mixing console with 4 input channels.
including 2 Mic/Line inputs,1 RCA stereo mixed line input, 1 Hl-Z line input, 2
XLR line outputs, and 1 mixed line output. The subwoofer volume can be
controlled independently.

Specification
Core 181
| Specifications | CORE 181 |
| System frequency response | 30Hz-20kHz(-10dB) |
| System Max SPL (peak) | 132dB |
| System coverage angle (HxV) | 100°x60°(-6dB) |
| System volume (WxHxD) | 523x2225x5 86(mm) |
| CORE 181 | SUB |
| speaker | 18" woofer |
| Amplifier power | 2x800W (RMS) |
| Input sensitivity | 0dBu |
| power supply | AC100V-240V |
| Dimension(WxHxD) | 523x852x564mm |
| Net weight | 44.5kg |
| CORE 181 | CURVE ARRAY |
| MF | 4x5“ nd MLF frequency woofer |
| HF | 16x1"dome tweeter |
| Dimension (WxHxD) | 198x736x339(mm) |
| Net weight | 12.1kg |
